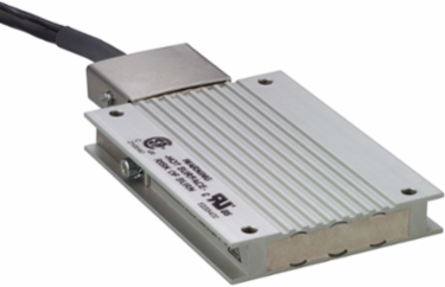

Schneider Electric VW3A7603R07 Braking Resistor 27 Ohm 200 W 0.75 Inch Cable IP65

MPN: VW3A7603R07
PPN: SCH-VW3A7603R07

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$380.74

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric VW3A7603R07 Braking Resistor is a reliable component designed to enhance the performance of motion control systems. With a resistance rating of 27 Ohms and a power capacity of 200 watts, this braking resistor effectively dissipates energy in applications where rapid stopping is necessary. Its 0.75-inch cable ensures secure connections, while the IP65 rating provides robust protection against dust and water, making it suitable for use in various environments. This component is an essential addition for ensuring efficient automation and control in industrial applications.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia, Germany, United States

Physical Attributes

Cable Length	0.75 m

Important Information Attributes

Range Of Product	Altivar, Lexium
Local Publishable Date	2026-01-12
Stocking Flag	Y
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2010
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Average Power Available	50 W 50 °C
Energy Peak	4300 J 480 V4900 J 400 V7400 J 230 V9700 J 115 V
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protection Type	thermal protection via the servo drive
Sustainable Packaging	No
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8533390080

Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Serviceability	No
Weee Applicability	Component
Weee Exclusion Rationale	Component not in scope – non independent function
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Product Kit Identifier	N
Continuous Power	200 W
Ohmic Value	27 Ohm
Product Or Component Type	braking resistor
Returnability	No
Accessory / Separate Part Category	protection accessories
Package Weight(Lbs)	920.500 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Storage	-25-85 °C, -25-85 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes

Product Compatibility	ATV32HU22M2, variable speed drive ATV320 2.2 kW, 200...240 V, single phasemotion servo drive LXM16D 0.75 kW, 200...230 V, single phase, motion servo drive LXM16D 1 kW, 200...230 V, single phase, motion servo drive LXM16D 1.5 kW, 200...230 V, single phase
Reach Free Shvc	Yes
China Rohs Regulation	X
Ambient Air Temperature For Operation	0-50 °C
Ip Degree Of Protection	IP65
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
