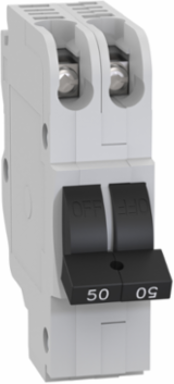

Schneider Electric NC0250 Stab-Lok Circuit Breaker 50A 2 Pole 120/240VAC 10kA Plug-In Mount
- MPN: NC0250
- UPC: 785901644705
- PPN: SCH-NC0250
CAD
$141.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Stab-Lok circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for Federal Pioneer panels. They have easy to read color coded handles to differentiate ampere ratings. This breaker is a two pole 50A, 120/240VAC moulded case breaker with plug in mounting. This circuit breaker meets CSA standards.
Features
- Rated at 50 Amps, this double-pole breaker provides the high-capacity 240V power required for demanding residential loads like electric ranges, large water heaters, and Level 2 EV charging stations. Its thermal-magnetic trip mechanism ensures your home's internal wiring is protected against both slow-acting overloads and sudden, dangerous short circuits.
- The NC0250 features the classic 1-inch per pole "plug-on" format (2 inches total width) specifically engineered for the legacy Square D Network series panels. While it shares a physical profile with the modern Homeline (CHOM) series, this specific NC-prefix unit is the correct maintenance and replacement part for existing Canadian Network-type installations, ensuring a secure and code-compliant mechanical fit.
- Designed for standard 120/240V AC residential service, this breaker features a 10,000 AIC (Amps Interrupting Capacity) rating, providing a high level of safety during a fault event. The rugged construction is built to withstand thousands of operation cycles, offering a "set-it-and-forget-it" solution for homeowners and contractors managing older electrical infrastructures.
- Equipped with robust pressure plate lugs, the NC0250 is designed to securely land #8 AWG copper or aluminum conductors, which are standard for 50-Amp branch circuits. This ensures a low-resistance connection that prevents overheating at the terminal point, reducing the risk of nuisance tripping or damage to the breaker bus bar.
- This unit is fully CSA Certified, meeting the rigorous safety requirements of the Canadian Electrical Code (CEC). By using an authentic Schneider Square D breaker instead of a generic third-party alternative, you maintain the UL/CSA listing of your entire electrical panel, which is a critical requirement for provincial electrical inspections and home insurance compliance.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Stab-lok
- [In] Rated Current
- 50 A
- Breaking Capacity
- 10 kA
Poles Description2P
Product Or Component Typeminiature circuit-breaker
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Mounting Mode
- plug-in
- Awg Gauge
- AWG 14...AWG 4 copper
Electrical Connectionscrew connector
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Product Certifications
- CSA
