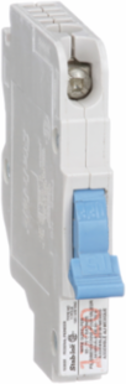

Schneider Electric NC030 Stab-Lok Circuit Breaker 30A 1 Pole 120VAC 10kA Plug-In Mount
- MPN: NC030
- UPC: 785901389040
- PPN: SCH-NC030
CAD
$47.86
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Stab-Lok circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for Federal Pioneer panels. They have easy to read color coded handles to differentiate ampere ratings. This breaker is a one pole 30A, 120VAC moulded case breaker with plug in mounting. This circuit breaker meets CSA standards.
Features
- The Schneider Electric NC030 is specifically engineered to fit seamlessly into authentic Federal Pioneer Stab-lok loadcentres.
- Featuring a dedicated 30-amp line rating, this miniature circuit breaker provides the precise current threshold required for demanding, dedicated 120V circuits.
- Built around an advanced thermal-magnetic trip system, the breaker responds dynamically to dangerous electrical events by combining time-delayed overload protection with instantaneous short-circuit intervention. It handles up to a 10 kA breaking capacity (interrupting rating), which means it safely shuts down extreme electrical spikes before high-current faults can cause irreversible damage to your household appliances or wiring.
- Engineered with an intuitive plug-in mounting style and a robust screw connector termination, this breaker ensures a secure mechanical and electrical connection with minimal effort. It accepts copper conductor wiring ranging from 14 AWG to 9 AWG.
- This authentic Stab-lok breaker is fully CSA approved and manufactured by Schneider Electric Canada to comply with rigorous national safety standards.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Stab-lok |
|---|---|
| [In] Rated Current | 30 A |
| Breaking Capacity | 10 kA |
| Poles Description | 1P |
|---|---|
| Product Or Component Type | miniature circuit-breaker |
| [Ue] Rated Operational Voltage | 120 V AC |
Complementary
| Mounting Mode | plug-in |
|---|---|
| Awg Gauge | AWG 14...AWG 9 copper |
| Electrical Connection | screw connector |
|---|
Offer Sustainability
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information |
|---|---|
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Eu Rohs Directive | Compliant with Exemptions |
Environment
| Product Certifications | CSA |
|---|
