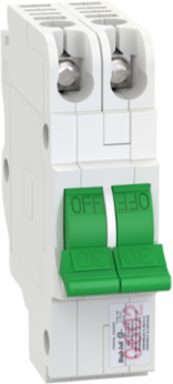

Schneider Electric NC0230 Stab-Lok Circuit Breaker 30A 2 Pole 120/240VAC 10kA Plug-In Mount
- MPN: NC0230
- UPC: 785901388883
- PPN: SCH-NC0230
CAD
$67.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Stab-Lok circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for Federal Pioneer panels. They have easy to read color coded handles to differentiate ampere ratings. This breaker is a two pole 30A, 120/240VAC moulded case breaker with plug in mounting. This circuit breaker meets CSA standards.
Features
- The Schneider NC0230 is an authentic, CSA-certified Federal Pioneer (FPE) Stab-lok circuit breaker, engineered specifically for the Canadian residential market. As the OEM replacement for aging panels, it ensures perfect mechanical and electrical compatibility, eliminating the safety risks and fitment issues associated with non-certified aftermarket alternatives.
- Rated at 30 Amps and 120/240V, this two-pole breaker is the standard requirement for high-draw household equipment such as electric clothes dryers, small air conditioning units, and water heaters. Its dual-pole design ensures a simultaneous trip of both "hot" legs, providing complete circuit isolation and protection for your most essential 240V appliances.
- This breaker utilizes a thermal-magnetic trip mechanism to provide dual-stage defense. The thermal element reacts to sustained overloads protecting your home s wiring from overheating and melting while the magnetic element provides instantaneous "10kA AIR" (Amps Interrupting Rating) protection against high-energy short circuits, significantly reducing the risk of electrical fires.
- Following the classic Stab-lok identification system, the NC0230 features a distinctive green handle. This color-coding allows homeowners and electricians to identify the 30-Amp circuit rating at a glance without having to read small embossed text, which is especially critical during emergency troubleshooting or when the panel is located in a dimly lit basement.
- Designed for a plug-in connection, the NC0230 snaps directly onto the panel's bus bar without the need for specialized tools or mounting hardware. The secure "stab-on" design ensures a high-pressure electrical connection that resists loosening over time, while the robust screw terminals accommodate copper and aluminum conductors from #14 to #6 AWG for maximum wiring flexibility.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Stab-lok
- [In] Rated Current
- 30 A
- Breaking Capacity
- 10 kA
Poles Description2P
Product Or Component Typeminiature circuit-breaker
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Mounting Mode
- plug-in
- Awg Gauge
- AWG 14...AWG 6 copper
Electrical Connectionscrew connector
Environment
- Product Certifications
- CSA
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
