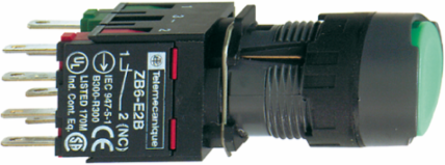

Complete Illuminated Push Button, 16mm, Green, 1NO + 1NC, 12-24V
Schneider Electric

Schneider Electric XB6AF3B5B Complete Illuminated Push Button, 16mm, Green, 1NO + 1NC, 12-24V

  • MPN: XB6AF3B5B
  • PPN: SCH-XB6AF3B5B
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $60.82

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Schneider Electric has designed an illuminated push button that seamlessly blends functionality with reliability. This 16mm switch features a striking green color, enhancing visibility in various settings while providing both normally open (1NO) and normally closed (1NC) configurations. Operating within a versatile voltage range of 12-24V, this push button is ideal for automation and control applications, making it a valuable component for effective circuit management in industrial environments. Its robust design ensures durability, catering to the rigorous demands of modern automation systems.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Mexico
    Depth57 mm

    Important Information Attributes

    Electrical Durability
    1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
    Certificate Agency
    UL, GOST, CCC, CSA
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    No
    Product Kit Identifier
    N
    Bulb Base
    integral LED
    Contact Operation
    slow-break
    Contacts Type And Composition
    1 NO + 1 NC
    Device Short Name
    XB6
    Electrical Shock Protection Class
    class II conforming to IEC 61140
    Light Source
    LED
    Operating Force
    3.5 N NO changing electrical state4.5 N NC changing electrical state
    Operating Travel
    1 mm NO changing electrical state)2 mm NC changing electrical state)3.5 mm total travel)
    Positive Opening
    with EN/IEC 60947-5-1 appendix K
    Product Or Component Type
    complete illuminated push-button
    Range Of Product
    Harmony XB6
    Resistance To Electrostatic Discharge
    6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
    Returnability
    Yes
    Shape Of Signaling Unit Head
    round
    Signalling Type
    steady
    Sustainable Packaging
    No
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Height Nominal
    18 mm
    [Ie] Rated Operational Current
    3 A 120 V, AC-15, B300 EN/IEC 60947-5-11.5 A 240 V, AC-15, B300 EN/IEC 60947-5-10.1 A 250 V, DC-13, R300 EN/IEC 60947-5-10.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage
    4 kV EN/IEC 60947-1
    Connections - Terminals
    Faston connectors 2.8 x 0.5 mm
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8536509031
    Vibration Resistance+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Terminals Description Iso N°1(13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC
    Local Publishable Date2026-01-12
    Stocking FlagN
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2403025EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Bezel Materialplastic
    Compatibility CodeXB6
    Contacts Materialsilver alloy (Ag/Ni)
    Current Consumption15 mA
    Electrical Reliabilityλ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
    Electromagnetic Emissionclass B IEC 55011
    Mounting Diameter16 mm
    Operating Positionany position
    Operator Profilegreen flush, unmarked
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective TreatmentTC
    Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
    Resistance To Fast Transients2 kV IEC 61000-4-4
    Sale Per Indivisible Quantity1
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Supply Voltage Limits6-30 V AC/DC
    Type Of Operatorlatching
    Pep CodeENVPEP2403025EN
    Width Nominal18 mm
    [Ui] Rated Insulation Voltage250 V 3)EN/IEC 60947-1
    [Us] Rated Supply Voltage12...24 V AC/DC
    Short-circuit Protection6 A cartridge fuse gG
    Package Weight(Lbs)17.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-70 °C, -25-70 °C
    Nema Degree Of Protection
    NEMA 4 CSA C22.2 No 94NEMA 4X CSA C22.2 No 94, NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Environmental Disclosure
    ENVPEP2403025EN
    Ip Degree Of Protection
    IP65 IEC 60529
    Packaging Without Single Use Plastic
    No
    Pep Code
    ENVPEP2403025EN
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    China Rohs RegulationX
    Circularity ProfileENVEOLI2403025EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    General Attributes

    Product Or Component Type
    complete illuminated push-button
    Range Of ProductHarmony XB6

    ETIM

    ETIM 8
    EC001028
    ETIM 9EC001028

    Surge Protection And Filtering Attributes

    Surge Withstand
    1 kV direct contact IEC 61000-4-52 kV in free air IEC 61000-4-5

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
