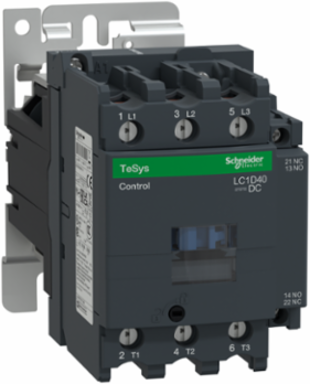

Schneider Electric LC1D40BD Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/<=440V 40A,24V DC coil, screw clamp terminals
Schneider Electric LC1D40BD Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/<=440V 40A,24V DC coil, screw clamp terminals
- MPN: LC1D40BD
- PPN: SCH-LC1D40BD
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$504.40/ EA
Description
Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/<=440V 40A,24V DC coil, screw clamp terminals
Specifications
Environment
- Product Certifications
- GOST || BV || CSA || CCC || RINA || GL || UL || LROS (Lloyds register of shipping) || DNV || UKCA
- Standards
- CSA C22.2 No 14 || IEC 60947-4-1 || UL 508 || EN 60947-4-1 || IEC 60947-5-1 || EN 60947-5-1
- Net Weight
- 2.185 kg
- Ip Degree Of Protection
- IP2X IEC 60529 || IP2X VDE 0106
- Operating Altitude
- 0...3000 m
- Width
- 85 mm
Height127 mm
Climatic WithstandIACS E10 exposure to damp heat
Flame RetardanceV1 UL 94
Mechanical Robustnessshocks contactor opened 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms) || vibrations contactor opened 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz)
Fire Resistance850 °C IEC 60695-2-1
Depth176 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110205EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
Complementary
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contacts || 1.5 ms on energisation between NC and NO contacts
- Power Dissipation Per Pole
- 5.4 W AC-1 || 2.4 W AC-3 || 2.4 W AC-3e
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C) for control circuit || 60 A (at 60 °C) for power circuit
- Mounting Support
- rail || plate
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Insulation Resistance
- > 10 MOhm for control circuit
- Irms Rated Making Capacity
- 250 A DC for control circuit conforming to IEC 60947-5-1 || 800 A at 440 V for power circuit conforming to IEC 60947
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947
- Connections - Terminals
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: rigid || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigid || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: rigid || power circuit: screw terminals 2 2.5-16 mm² - cable stiffness: rigid || power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: flexible without cable end || power circuit: screw terminals 2 2.5-16 mm² - cable stiffness: flexible without cable end || power circuit: screw terminals 1 2.5-25 mm² - cable stiffness: flexible with cable end || power circuit: screw terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end
- Time Constant
- 34 ms
- Minimum Switching Voltage
- 17 V for control circuit
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminal flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminal Philips No 2 || power circuit 5 N.m screw terminal flat Ø 6 to Ø 8 mm || control circuit 1.7 N.m screw clamp terminal pozidriv No 2
- Inrush Power In W
- 19-19 W 20 °C)
- Compatibility Code
- LC1D
- Motor Power Hp
- 3 hp at 115 V AC 60 Hz for 1 phase motors || 5 hp at 230/240 V AC 60 Hz for 1 phase motors || 10 hp at 200/208 V AC 60 Hz for 3 phases motors || 10 hp at 230/240 V AC 60 Hz for 3 phases motors || 30 hp at 460/480 V AC 60 Hz for 3 phases motors || 30 hp at 575/600 V AC 60 Hz for 3 phases motors
- [Ui] Rated Insulation Voltage
- control circuit 600 V CSA || control circuit 600 V UL || power circuit 600 V CSA || power circuit 600 V UL || control circuit 690 V IEC 60947-1 || power circuit 690 V IEC 60947-1 || power circuit 1000 V IEC 60947-4-1
- Protective Cover
- with
Minimum Switching Current5 mA for control circuit
Auxiliary Contact Composition1 NO + 1 NC
Control Circuit Voltage Limits0.1...0.3 Uc -40-70 °C drop-out DC || 0.75...1.25 Uc -40-60 °C operational DC || 1...1.25 Uc 60-70 °C operational DC
Control Circuit TypeDC standard
Hold-In Power Consumption In W7.4-7.4 W 20 °C
Rated Breaking Capacity800 A at 440 V for power circuit conforming to IEC 60947
Associated Fuse Rating10 A gG for control circuit conforming to IEC 60947-5-1 || 80 A gG at <= 690 V coordination type 1 for power circuit || 80 A gG at <= 690 V coordination type 2 for power circuit
Pole Contact Composition3 NO
Coil Technologybuilt-in bidirectional peak limiting diode suppressor
Operating Time20 ±20 % ms opening || 50 ±15 % ms closing
Maximum Operating Rate3600 cyc/h 60 °C
Mechanical Durability10000000 cycles
Auxiliary Contacts Typemechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Overvoltage CategoryIII
Motor Power Kw18.5 kW at 380...400 V AC 50 Hz (AC-3) || 22 kW at 500 V AC 50 Hz (AC-3) || 30 kW at 660...690 V AC 50 Hz (AC-3) || 22 kW at 1000 V AC 50 Hz (AC-3) || 22 kW at 415 V AC 50 Hz (AC-3) || 22 kW at 440 V AC 50 Hz (AC-3) || 11 kW at 220...230 V AC 50 Hz (AC-3) || 9 kW at 400 V AC 50 Hz (AC-4) || 18.5 kW at 380...400 V AC 50 Hz (AC-3e) || 22 kW at 500 V AC 50 Hz (AC-3e) || 30 kW at 660...690 V AC 50 Hz (AC-3e) || 22 kW at 1000 V AC 50 Hz (AC-3e) || 22 kW at 415 V AC 50 Hz (AC-3e) || 22 kW at 440 V AC 50 Hz (AC-3e) || 11 kW at 220...230 V AC 50 Hz (AC-3e)
Rated Operational Power In W14 W 24 V DC-13 10000000 cycles control circuit || 48 W 24 V DC-13 3000000 cycles control circuit || 96 W 24 V DC-13 1000000 cycles control circuit
Specifications
- [Uc] Control Circuit Voltage
- 24 V DC
- Range Of Product
- TeSys Deca
- Product Or Component Type
- contactor
- Utilisation Category
- AC-2 || AC-3 || AC-1 || AC-4 || AC-3e
- Poles Description
- 3P
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hz
Contactor Applicationresistive load || motor control
RangeTeSys
[Ie] Rated Operational Current40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit || 40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Device Short NameLC1D
