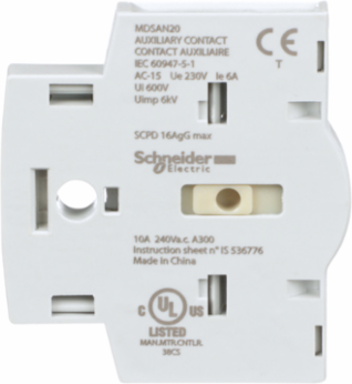

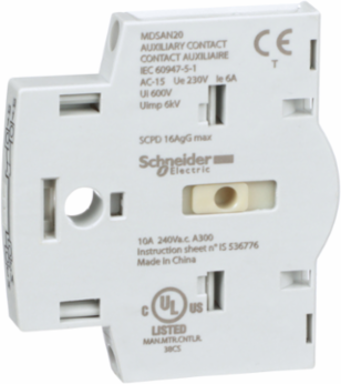

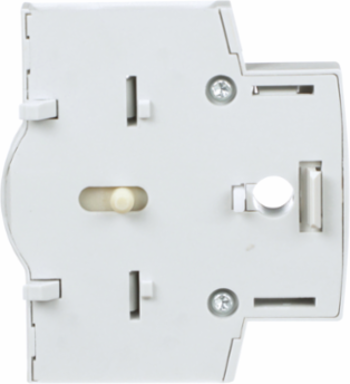

Schneider Electric MDSAN20 MD motor disconnect switch, auxiliary contact module, 2 NO

MD motor disconnect switch, auxiliary contact module, 2 NO
MD motor disconnect switch, auxiliary contact module, 2 NO
MD motor disconnect switch, auxiliary contact module, 2 NO
MD motor disconnect switch, auxiliary contact module, 2 NO
MD motor disconnect switch, auxiliary contact module, 2 NO
  • MPN: MDSAN20
  • PPN: SCH-MDSAN20

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$76.98/ EA

    Description

    MD motor disconnect switches are listed UL 508 Suitable for Motor Control (UL File E164864) and conforms to IEC standard 60947 3. It is in a compact NEMA 4X enclosure suitable for use in NEMA 1, 3, 3R, 4, 4X, and 12 applications. This auxiliary contact module has two normally open contacts. Auxiliary contact is UL listed and CSA certified.

    Specifications

    Specifications

    Auxiliary Contact Composition
    2 NO
    Product Or Component Type
    Auxiliary Contact Module
    Range Of ProductMD
    Product Destinationmotor disconnect switch MD3304X || motor disconnect switch MD3604X

    Offer Sustainability

    China Rohs Regulation
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1304031
    Toxic Heavy Metal Free
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Eu Rohs DirectiveCompliant
    Reach Free Of SvhcYes

    Contractual warranty

    Warranty
    18 months
