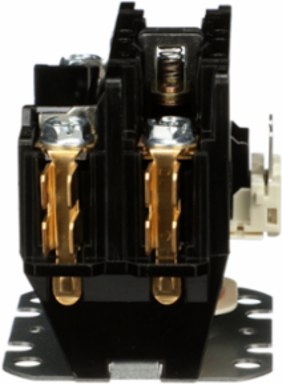

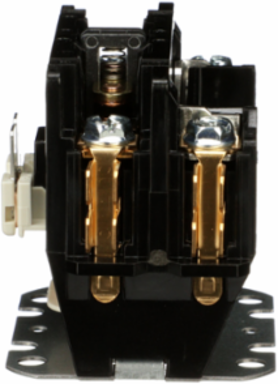

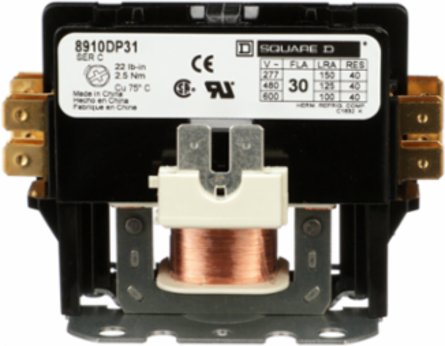

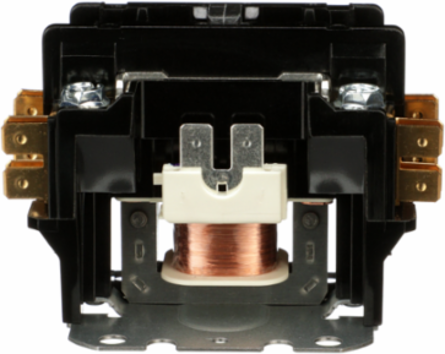

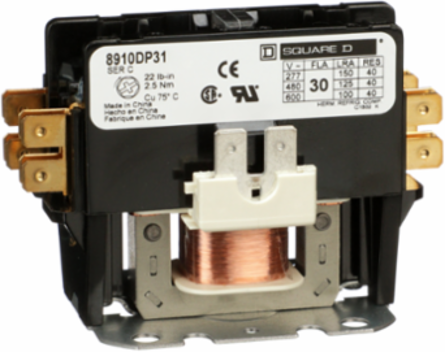

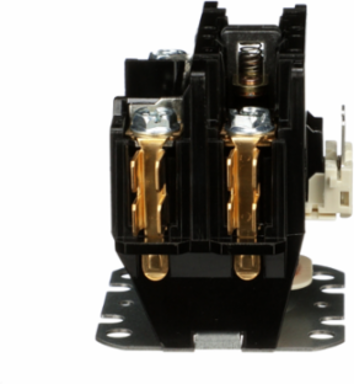

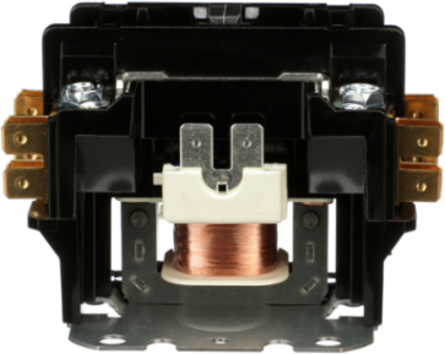

Square D 8910DP31V02 Definite Purpose Contactor 30A 1 Pole 110/120VAC 50/60Hz
- MPN: 8910DP31V02
- UPC: 785901909378
- PPN: SCH-8910DP31V02
CAD
$57.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This one pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.29 inches and 2.39 tall. These contactors are UL Listed and CSA Certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Mexico, United States
Complementary Attributes
- Locked Rotor Rated Current
- 125 A 460 V AC, 100 A 575 V AC, 150 A 277 V AC
- Line Rated Current
- 30 A
Maximum Horse Power Rating2-2 hp 115 V AC, 1 phase, 3-3 hp 230 V AC, 1 phase
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- quick connect terminals, binder head
- [Uc] Control Circuit Voltage
- 120 V AC 60 Hz, 110 V AC 50 Hz
- Local Publishable Date
- 2025-11-13
- Future Imap
- 46.1
- Stocking Flag
- N
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1905
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Number Of Poles
- 1P
- Pole Contact Composition
- 1 NO
- Product Or Component Type
- Definite Purpose Contactor
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyUL Recognized, CSA
Local Data StatusPublishable
Return IndicatorY
Future Msrp58.54
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Energy Efficiency OptimizedFalse
Phase1 phase
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductDP
Sustainable PackagingYes
[Ue] Rated Operational Voltage600 V AC
Package Weight(Lbs)231.332 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 1 phase
- Range Of Product
- DP
Product Or Component TypeDefinite Purpose Contactor
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
