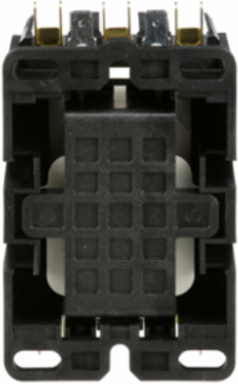

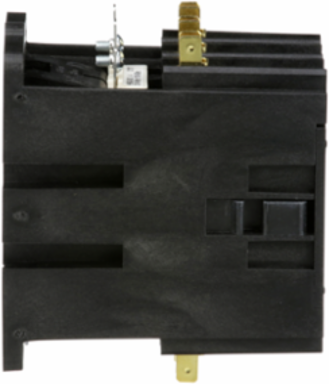

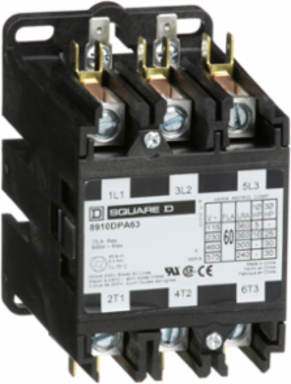

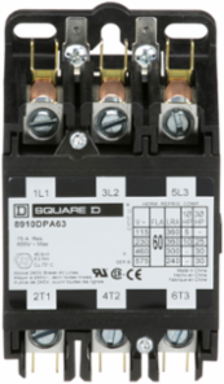

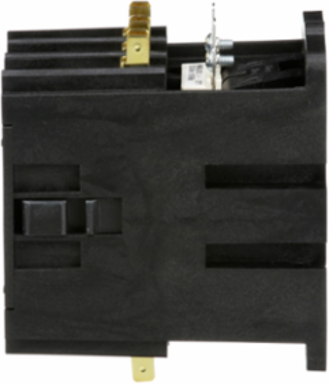

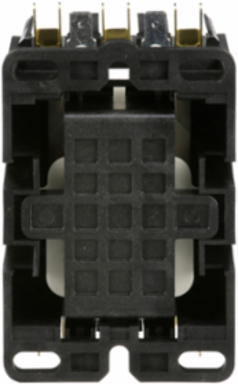

Square D 8910DPA63V02 Definite Purpose Contactor 60A 3 Pole 30HP 575VAC 3 Phase
- MPN: 8910DPA63V02
- UPC: 785901080817
- PPN: SCH-8910DPA63V02
CAD
$340.26
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 60 ampere and a resistive rating of 75 amperes. It also has a 5 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 25 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.
Features
- Specially engineered for the high-demand cycles of HVAC, refrigeration, and motor-driven machinery, this 60-amp, 3-pole contactor provides high-performance switching for inductive loads. By choosing a Definite Purpose (DP) component over a general-purpose relay, you ensure a longer mechanical life for your equipment and reduce the risk of premature contact welding during startup.
- Featuring a standard 120V AC coil (V02 suffix), this unit is perfectly compatible with most residential and commercial thermostats, building automation systems, and control transformers. This eliminates the need for expensive additional relays or power converters, allowing for a direct, streamlined installation into your existing electrical enclosure.
- Rated for 60 full-load amps (FLA) and up to 75 resistive amps, this contactor is built to handle heavy power distribution across three poles. Whether you are managing a large air conditioning compressor or an industrial heater bank, the heavy-duty silver cadmium oxide contacts ensure a stable electrical path with minimal heat buildup, protecting your system from voltage drops.
- Designed with an industry-standard mounting base, the 8910DPA63V02 allows for effortless retrofitting into existing Schneider, Square D, or third-party panels. The box lug terminals provide a secure, high-torque connection for large-gauge wiring, preventing loose connections that lead to arcing and ensuring your installation meets strict UL and CSA safety certifications.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 4.13 in
- Country of Origin
- China, France, Mexico, United States
Width2.56 in
Complementary Attributes
- Maximum Horse Power Rating
- 5-5 hp 115 V AC, 1 phase10-10 hp 230 V AC, 1 phase, 30-30 hp 460 V AC, 3 phase, 30-30 hp 575 V AC, 3 phase, 25-25 hp 230 V AC, 3 phase
- Locked Rotor Rated Current
- 360 A 277 V AC300 A 460 V AC240 A 575 V AC
Line Rated Current60 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- quick connect terminals, box lugs
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Phase
- 3 phase
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- DPA
- Sustainable Packaging
- Yes
- Height Nominal
- 4.13 in
- Width Nominal
- 2.56 in
- [Uc] Control Circuit Voltage
- 120 V AC 60 Hz110 V AC 50 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyUL Recognized, CSA
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2541
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Number Of Poles3P

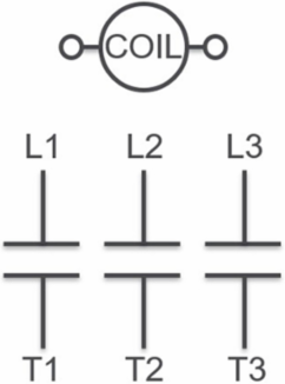

Pole Contact Composition3 NO
Product Or Component TypeDefinite Purpose Contactor
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Useful4.13 in
Width Real2.56 in
[Ue] Rated Operational Voltage600 V AC
Package Weight(Lbs)684.924 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 3 phase
- Range Of Product
- DPA
Product Or Component TypeDefinite Purpose Contactor
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
