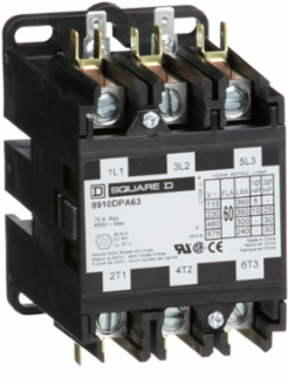

Square D 8910DPA63V09 Definite Purpose Contactor 60A 3 Pole 30HP 575VAC 3 Phase

MPN: 8910DPA63V09
UPC: 785901080794
PPN: SCH-8910DPA63V09

$340.26

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 60 ampere and a resistive rating of 75 amperes. It also has a 5 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 25 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.

Features

Specifically engineered for the rigorous demands of heating, air conditioning, and refrigeration (HVAC/R) and data center applications, this 3-pole contactor is built to handle specialized inductive loads without premature failure. Using a purpose-built 8910 series device ensures your system maintains peak efficiency while preventing the contact welding and coil burnout common in generic alternatives.
Rated for 60 Amps across three poles, this heavy-duty contactor is optimized for controlling large compressor motors and resistive heating elements in high-demand commercial environments. Its robust silver-cadmium oxide contacts provide superior conductivity and arc resistance, offering a high-performance switching solution that extends the operational lifespan of your expensive machinery.
Equipped with a versatile 220V/240V (60Hz) or 208V (50Hz) coil, this model integrates seamlessly into standard commercial power systems without the need for additional step-down transformers. This precise voltage compatibility ensures reliable engagement of the contacts every time your thermostat or PLC sends a signal, eliminating the "chatter" that leads to system instability and electrical noise.
The space-saving, open-frame design features a standard mounting footprint that fits perfectly into most OEM control panels and NEMA enclosures. With easy-access pressure wire connectors and a simple screw-mount base, facility maintenance teams can perform rapid replacements, significantly reducing downtime during critical cooling or production outages.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China, France, Mexico, United States

Complementary Attributes

Maximum Horse Power Rating	5-5 hp 115 V AC, 1 phase10-10 hp 230 V AC, 1 phase, 30-30 hp 460 V AC, 3 phase, 30-30 hp 575 V AC, 3 phase, 25-25 hp 230 V AC, 3 phase
Locked Rotor Rated Current	360 A 277 V AC300 A 460 V AC240 A 575 V AC

Line Rated Current	60 A

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Connection	box lugs, quick connect terminals
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Energy Efficiency Optimized	False
Phase	3 phase
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	DPA
Sustainable Packaging	Yes
[Uc] Control Circuit Voltage	208...240 V AC 60 Hz220 V AC 50 Hz
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490065

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Certificate Agency	UL Recognized, CSA
Local Publishable Date	2026-06-27
Stocking Flag	N
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2541
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Number Of Poles	3P

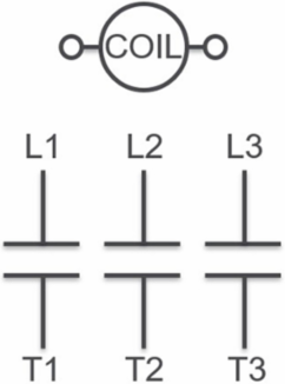

Pole Contact Composition	3 NO
Product Or Component Type	Definite Purpose Contactor
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ue] Rated Operational Voltage	600 V AC
Package Weight(Lbs)	680.388 g
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes

Take Back	No
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
