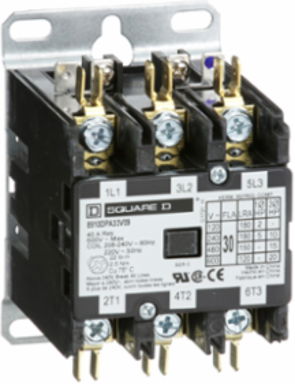

Square D 8910DPA33V09 Definite Purpose Contactor 30A 3 Pole 20HP 600V AC
- MPN: 8910DPA33V09
- UPC: 785901073529
- PPN: SCH-8910DPA33V09
CAD
$132.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
Features
- Engineered specifically for demanding HVAC, refrigeration, and data center cooling applications, this 3-pole Definite Purpose contactor features a 30A full load amperage (FLA) rating and a 150A locked rotor amperage (LRA) at 240V. This high-capacity design ensures reliable, arc-resistant motor switching under constant thermal stress, preventing premature contact welding and minimizing system downtime.
- This model is equipped with a 220V–240V AC coil operating at 50/60 Hz, making it an exact drop-in replacement for standard commercial control loops. The precision-wound electromagnetic coil ensures clean, chatter-free engagement even during minor line-voltage fluctuations, protecting sensitive upstream control components.
- Featuring robust binder head screws and quick-connect terminals, this device offers flexible, high-torque wire termination options that prevent loose connections caused by mechanical vibration. This dual-termination design accommodates standard copper wiring, ensuring a low-resistance electrical path and a significantly lower risk of localized overheating.
- Fully certified to CSA and UL standards, this Square D by Schneider Electric contactor meets rigorous North American safety and performance regulations. Its high dielectric strength and premium thermoset composite housing provide excellent insulation, ensuring your commercial property or industrial facility remains fully compliant with local electrical codes.
Documentation & Downloads
Specifications
Additional
- Motor Power Hp
- 2 hp 115 V AC 1 phase, 5 hp 230 V AC 1 phase, 10 hp 230 V AC 3 phase, 15 hp 460 V AC 3 phase, 20 hp 575 V AC 3 phase
- Full Load Current Rating
- 30 A
- Coil Voltage
- 208-240 V AC 60 Hz, 220 V AC 50 Hz

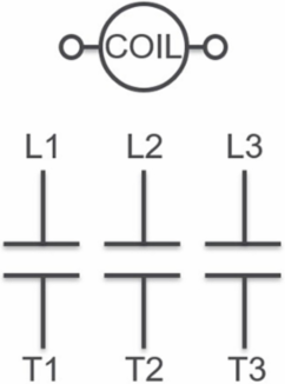

- Electrical Connection
- Quick connect terminals, Binder head
- Pole Contact Composition
- 3 NO
- Reach Regulation
- Contains SVHC above threshold
- Warranty
- 18 months
- Country of Origin
- China
Locked Rotor Current150 A at 460 V AC, 120 A at 575 V AC, 180 A at 277 V AC
Voltage600 V AC
Number of Poles3
TypeDefinite Purpose Contactor
Material ComplianceMercury Free, EU RoHS Compliant with Exemptions, China RoHS Exemption

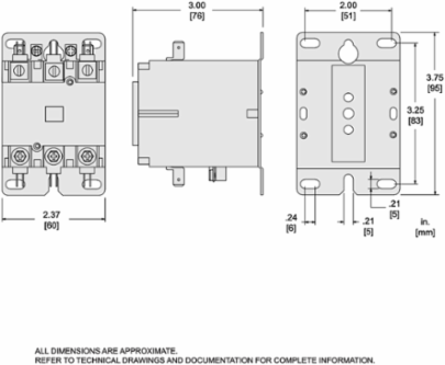

Dimensions3.75 in x 2.37 in x 3.00 in
Range Of ProductDPA
