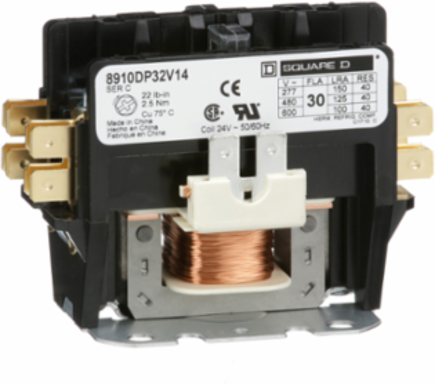

Square D 8910DP32V14 Definite Purpose Contactor 30A 2 Pole 24VAC 50/60Hz
- MPN: 8910DP32V14
- UPC: 785901080442
- PPN: SCH-8910DP32V14
CAD
$97.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

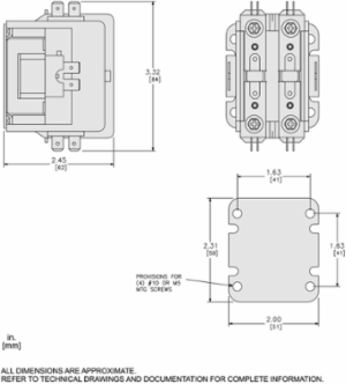

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.
Features
- Equipped with a high-efficiency 24V AC coil (50/60 Hz), this contactor integrates seamlessly with standard commercial thermostats, building management systems (BMS), and low-voltage control transformers. The coil is optimized for low power consumption, minimizing voltage drops across long control wire runs and keeping your control system operating stably.
- Featuring an industry-standard compact footprint, the 8910DP32V14 is designed to drop directly into existing equipment layouts without requiring panel modifications or costly enclosure upgrades. It serves as an ideal, cost-effective replacement for standard Class 8910 devices, making field service retrofits fast and straightforward for HVAC technicians and commercial electricians.
- Engineered with a robust 2-pole, 30-amp inductive and 40-amp resistive layout, this definite purpose contactor easily manages high-inrush startup currents. It provides an exceptionally reliable switching solution for large air conditioning compressors, commercial heating elements, and industrial pumping systems, eliminating the premature contact pitting and component failure common with under-rated alternatives.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, Mexico, United States |
|---|
Complementary Attributes
| Line Rated Current | 30 A |
|---|---|
| Maximum Horse Power Rating | 2-2 hp 115 V AC, 1 phase5-5 hp 230 V AC, 1 phase |
| Locked Rotor Rated Current | 125 A 460 V AC100 A 575 V AC150 A 277 V AC |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Electrical Connection | binder head, quick connect terminals |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Phase | 1 phase |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | DP |
| Sustainable Packaging | Yes |
| [Uc] Control Circuit Voltage | 24 V AC 50/60 Hz |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490065 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | UL Recognized, CSA |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | N |
| Device Type | LV equipment - LV contactor |
| Traceability | No |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1905 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |

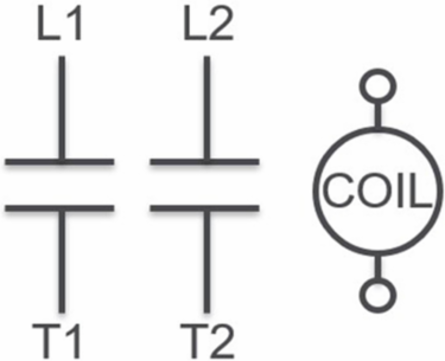

| Number Of Poles | 2P |
| Pole Contact Composition | 2 NO |
| Product Or Component Type | Definite Purpose Contactor |
| Returnability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| [Ue] Rated Operational Voltage | 600 V AC |
| Package Weight(Lbs) | 403.697 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Phase | 1 phase |
|---|---|
| Range Of Product | DP |
| Product Or Component Type | Definite Purpose Contactor |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
