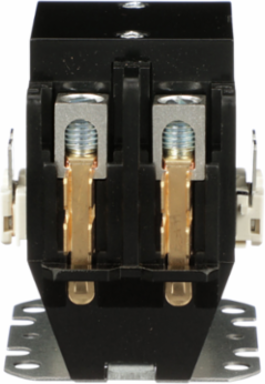

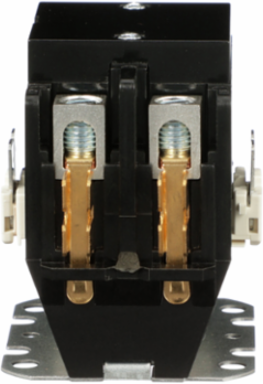

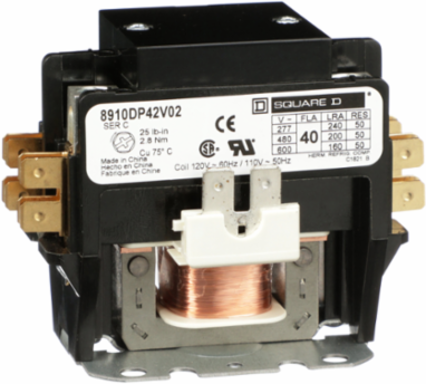

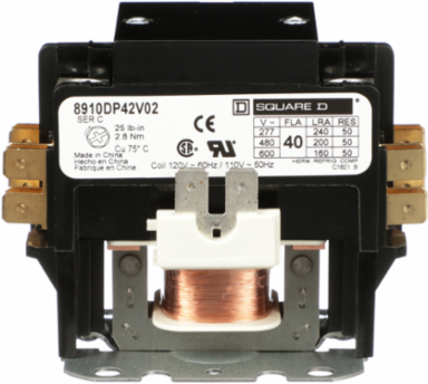

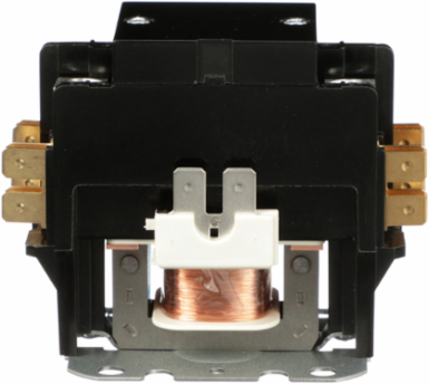

Square D 8910DP42V02 Definite Purpose Contactor, 40A, 2 Pole, 110/120V AC Coil

MPN: 8910DP42V02
UPC: 785901024187
PPN: SCH-8910DP42V02

$115.82

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

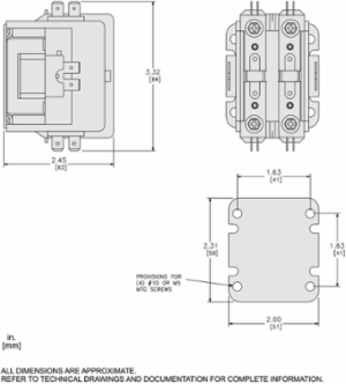

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This one pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes at 277 V maximum. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China, France, Mexico, United States

Complementary Attributes

Line Rated Current	40 A
Maximum Horse Power Rating	2-2 hp 115 V AC, 1 phase5-5 hp 230 V AC, 1 phase

Locked Rotor Rated Current	240 A 277 V AC200 A 460 V AC160 A 575 V AC

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Connection	box lugs, quick connect terminals
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1905
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Number Of Poles	2P

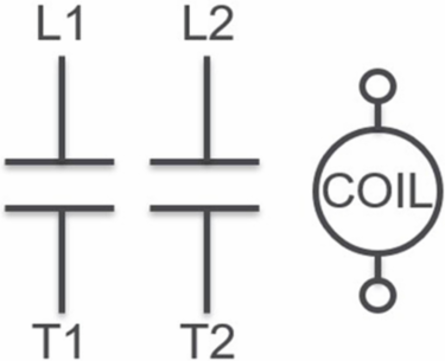

Pole Contact Composition	2 NO
Product Or Component Type	Definite Purpose Contactor
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ue] Rated Operational Voltage	600 V AC
Package Weight(Lbs)	258.548 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Certificate Agency	UL Recognized, CSA
Local Publishable Date	2026-06-27
Stocking Flag	N
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Energy Efficiency Optimized	False
Phase	1 phase
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	DP
Sustainable Packaging	Yes
[Uc] Control Circuit Voltage	120 V AC 60 Hz110 V AC 50 Hz
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490065

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes

Take Back	No
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
