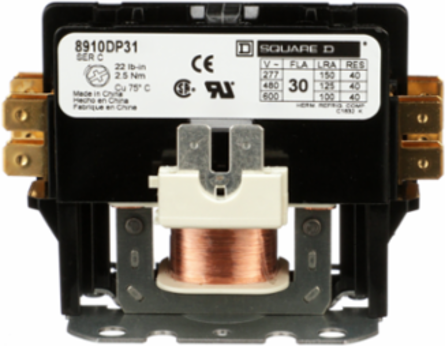

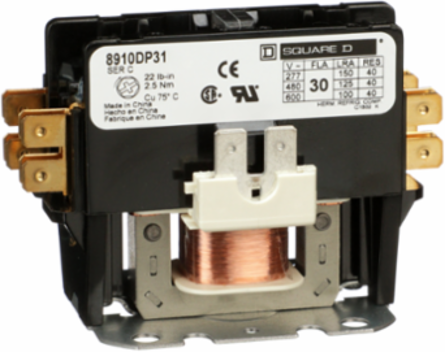

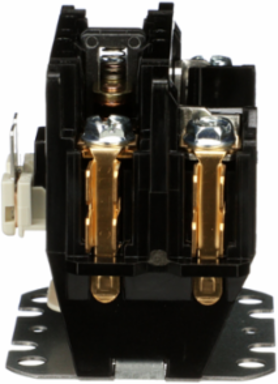

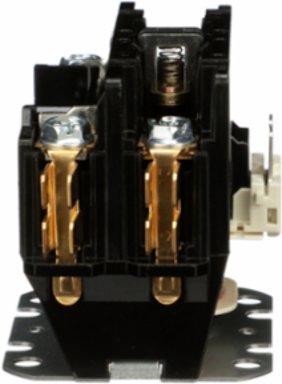

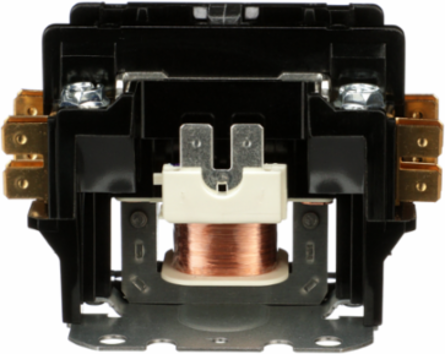

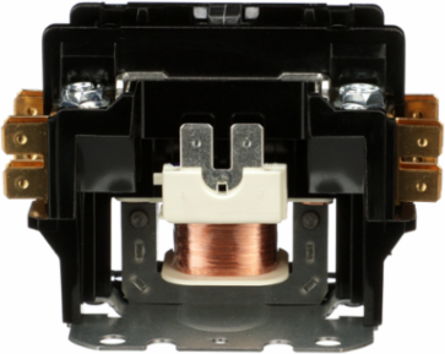

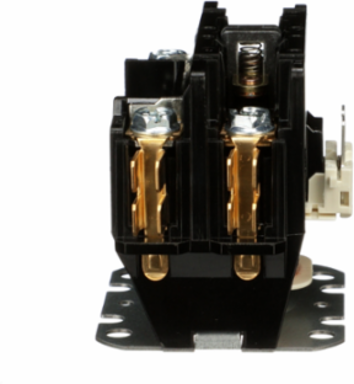

Square D 8910DP31V14 Definite Purpose Contactor 30A 1 Pole 24VAC 50/60Hz

MPN: 8910DP31V14
UPC: 785901748212
PPN: SCH-8910DP31V14
UNSPSC: 39121529

$57.55

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This one pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.29 inches and 2.39 tall. These contactors are UL Listed and CSA Certified.

Features

Electrical systems protection from overloads and short circuits
Current ranging from 20A to 90A
Quick connect terminals and binder head screws for easy wiring
Compact design and exclusive DIN mounting option
Ideal for heating, air conditioning, refrigeration, data processing, and food service equipment

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China, Mexico, United States

Complementary Attributes

Line Rated Current	30 A
Maximum Horse Power Rating	2-2 hp 115 V AC, 1 phase3-3 hp 230 V AC, 1 phase
Ue Rated Operational Voltage	600 V AC

Locked Rotor Rated Current	125 A 460 V AC100 A 575 V AC150 A 277 V AC
Uc Control Circuit Voltage	24 V AC 50/60 Hz

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Connection	quick connect terminals, binder head
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1905
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Number Of Poles	1P

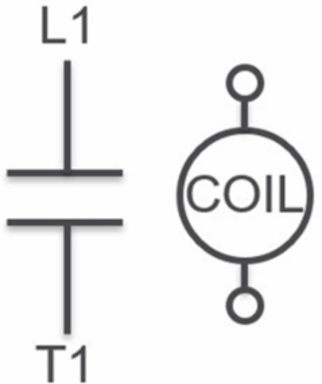

Pole Contact Composition	1 NO
Product Or Component Type	Definite Purpose Contactor
Returnability	Yes
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Certificate Agency	UL Recognized, CSA
Local Publishable Date	2026-06-27
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Energy Efficiency Optimized	False
Phase	1 phase
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	DP
Sustainable Packaging	Yes
Customs Code	8536490065

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes

Take Back	No
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
