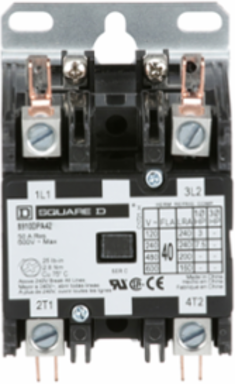

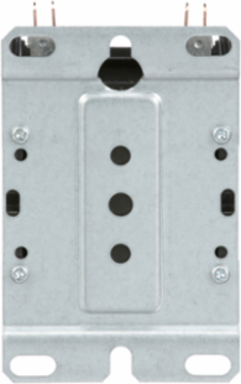

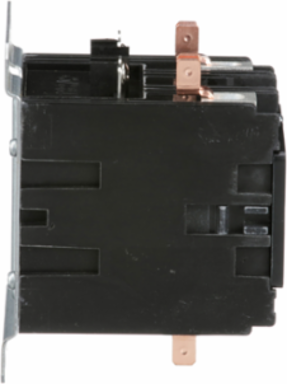

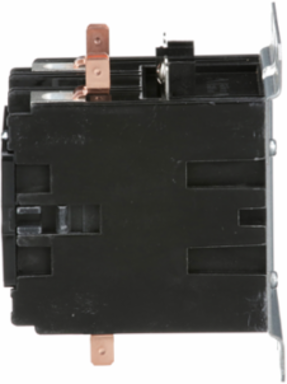

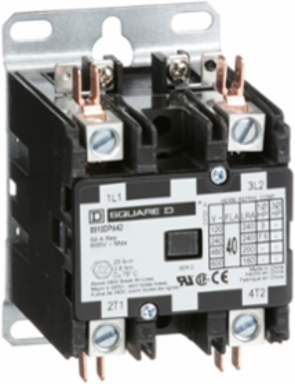

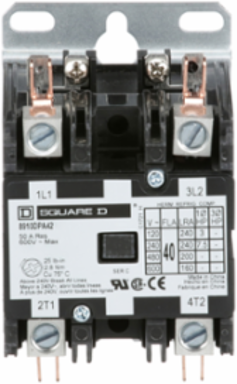

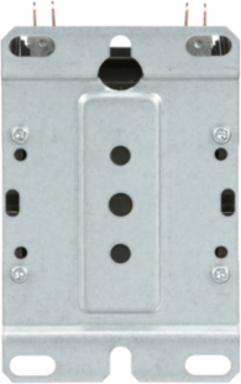

Square D 8910DPA42V14 Definite Purpose Contactor 40A 2 Pole 7.5HP 24VAC 50/60Hz

MPN: 8910DPA42V14
UPC: 785901073482
PPN: SCH-8910DPA42V14

$139.55

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

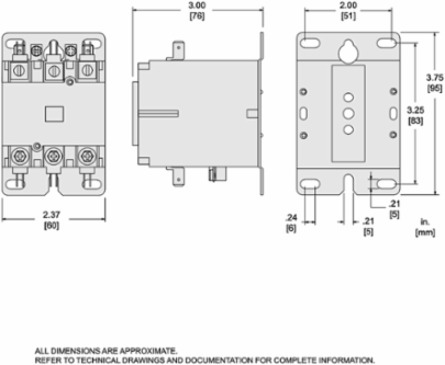

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.

Features

Engineered with a robust 40-amp continuous current rating, this 2-pole contactor is purpose-built to manage high-inrush cycles. It provides dependable, repetitive switching for large air conditioning compressors, commercial heating elements, and water purification pumps, preventing internal contact welding and premature equipment failure.
Featuring a high-performance 24V AC coil rated for both 50Hz and 60Hz frequencies, this unit integrates seamlessly with standard low-voltage control circuits. This eliminates the need for expensive step-up control transformers, allowing HVAC technicians and automation engineers to wire it directly into existing building management systems or commercial thermostat lines.
Rated to safely control motors up to 7.5 Horsepower at 230V AC, this contactor is built with heavy-duty silver cadmium oxide contacts. This specialized contact metallurgy effortlessly manages the extreme current spikes experienced during motor startup, protecting your ventilation fans, conveyor drives, and industrial pumps from devastating voltage drops and phase degradation.
Built with an industry-standard, space-saving mounting footprint, the 8910DPA42V14 can be dropped directly into crowded electrical panels as a drop-in replacement for older or failed contactors. The open-frame design promotes superior natural convection cooling, ensuring the device remains within safe operating temperatures even during continuous, high-ambient duty cycles.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China, Mexico, United States

Complementary Attributes

Line Rated Current	40 A
Maximum Horse Power Rating	3-3 hp 115 V AC, 1 phase7.5-7.5 hp 230 V AC, 1 phase

Locked Rotor Rated Current	240 A 277 V AC200 A 460 V AC160 A 575 V AC

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Connection	quick connect terminals, box lugs
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1905
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Number Of Poles	2P

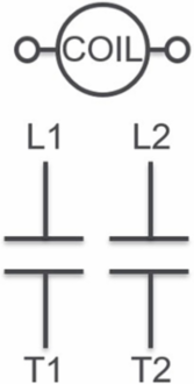

Pole Contact Composition	2 NO
Product Or Component Type	Definite Purpose Contactor
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ue] Rated Operational Voltage	600 V AC
Package Weight(Lbs)	453.592 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Certificate Agency	UL Recognized, CSA
Local Publishable Date	2026-06-27
Stocking Flag	N
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Energy Efficiency Optimized	False
Phase	1 phase
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	DPA
Sustainable Packaging	Yes
[Uc] Control Circuit Voltage	24 V AC 50/60 Hz
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490065

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes

Take Back	No
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
