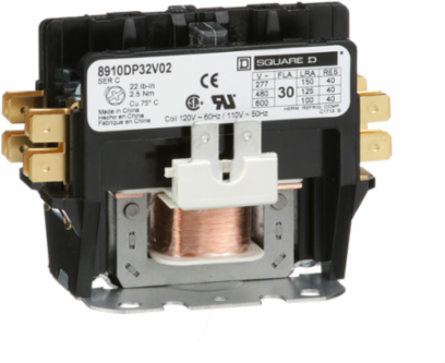

Square D 8910DP32V02 Definite Purpose Contactor 30A 2-Pole 110/120VAC 50/60Hz
- MPN: 8910DP32V02
- UPC: 785901073338
- PPN: SCH-8910DP32V02
CAD
$97.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

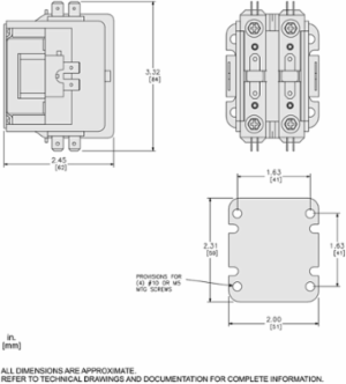

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified.
Features
- Engineered as a 2-pole (2NO) definite purpose contactor, this Square D by Schneider Electric unit handles a 30A full load current. It is rated for 2 HP at 115 VAC or 5 HP at 230 VAC single-phase configurations, making it an ideal drop-in solution for demanding compressor, heating, refrigeration, and data processing equipment.
- This electromechanical contactor operates via a 110/120 VAC coil at 50/60 Hz, ensuring native compatibility with standard commercial and industrial control panel architectures. The premium, non-replaceable encapsulated coil provides reliable contact engagement and prevents chattering or premature dropouts during minor line voltage fluctuations.
- Built to handle severe inductive startup spikes, this heavy-duty contactor boasts a robust locked rotor rating of up to 150A at 277 VAC, 125A at 460 VAC, and 100A at 575 VAC. This excessive thermal and mechanical headroom safeguards your system against contact welding and pitted contact surfaces during high-inrush motor starts.
- Manufactured to demanding industrial safety benchmarks, the 8910DP32V02 is fully UL Recognized and CSA Certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, Mexico, United States
Complementary Attributes
- Line Rated Current
- 30 A
- Maximum Horse Power Rating
- 2-2 hp 115 V AC, 1 phase5-5 hp 230 V AC, 1 phase
Locked Rotor Rated Current125 A 460 V AC100 A 575 V AC150 A 277 V AC
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- binder head, quick connect terminals
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Phase
- 1 phase
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- DP
- Sustainable Packaging
- Yes
- [Uc] Control Circuit Voltage
- 120 V AC 60 Hz110 V AC 50 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyUL Recognized, CSA
Local Publishable Date2026-06-27
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2541
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Number Of Poles2P

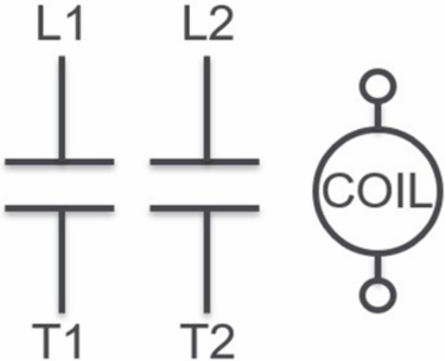

Pole Contact Composition2 NO
Product Or Component TypeDefinite Purpose Contactor
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ue] Rated Operational Voltage600 V AC
Package Weight(Lbs)272.155 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 1 phase
- Range Of Product
- DP
Product Or Component TypeDefinite Purpose Contactor
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
