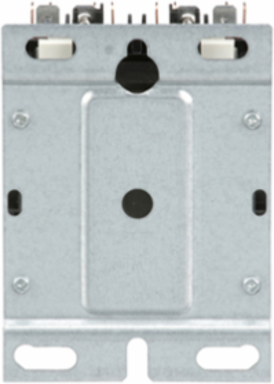

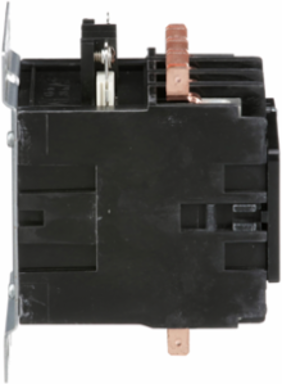

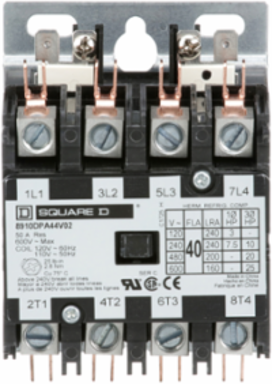

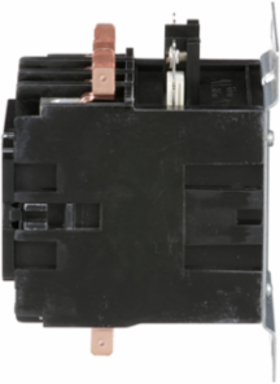

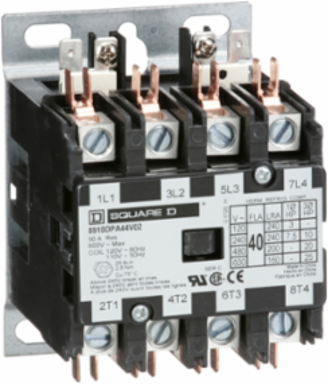

Square D 8910DPA44V02 Definite Purpose Contactor 40A 4 Pole 25HP at 575VAC 3 Phase
- MPN: 8910DPA44V02
- UPC: 785901073420
- PPN: SCH-8910DPA44V02
CAD
$200.71
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This four pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.78 inches by 2.75 inches and 3.04 tall. These contactors are UL component recognized and CSA certified.
Features
- This Square D by Schneider Electric Type DPA definite purpose contactor features a 4-pole (4 NO) configuration engineered specifically for complex HVAC, refrigeration, and data center climate control systems. Rated for 40 A inductive full-load and 50 A resistive current up to 600 V AC, it allows mechanical contractors to safely control multiple heating elements or isolate all legs of a multi-compressor system using a single, high-capacity switching device.
- Equipped with a high-performance 120 V AC control coil operating at 60 Hz (110 V AC at 50 Hz), this unit integrates perfectly with standard building management systems (BMS), commercial thermostats, and lighting control panels. It provides crisp, reliable armature actuation without the need for supplementary interposing relays, simplifying your control panel architecture.
- Built to handle high-torque motor startups across standard commercial and industrial power supplies, this 4-phase non-reversing contactor manages substantial power loads with ease. It is rated to safely switch 3-phase motor loads up to 10 hp at 230 V, 20 hp at 460 V, and 25 hp at 575 V AC, making it a rugged and versatile solution for industrial air handlers and fluid pumps.
- Designed with a compact footprint and straight-through wiring logic, this contactor features heavy-duty box lugs and quick-connect spade terminals to dramatically accelerate field replacements. The universal mounting base includes both traditional screw-fixing slots and integrated 35mm DIN rail track support, allowing technicians to rapidly secure the device inside crowded control cabinets without drilling new holes.
- This authentic Square D component is fully UL component recognized, CSA certified, ensuring seamless compliance with both Canadian and international electrical safety codes. By using a factory-spec OEM replacement part, facility maintenance teams can guarantee that equipment repairs restore the original system safety profile and pass field inspections without issue.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Mexico, United States
Complementary Attributes
- Line Rated Current
- 40 A
- Maximum Horse Power Rating
- 3-3 hp 115 V AC, 1 phase7.5-7.5 hp 230 V AC, 1 phase10-10 hp 230 V AC, 3 phase20-20 hp 460 V AC, 3 phase25-25 hp 575 V AC, 3 phase
Locked Rotor Rated Current240 A 277 V AC200 A 460 V AC160 A 575 V AC
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- box lugs, quick connect terminals
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Phase
- 3 phase
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- DPA
- Sustainable Packaging
- Yes
- [Uc] Control Circuit Voltage
- 120 V AC 60 Hz110 V AC 50 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyUL Recognized, CSA
Local Publishable Date2026-06-27
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2541
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Number Of Poles4P

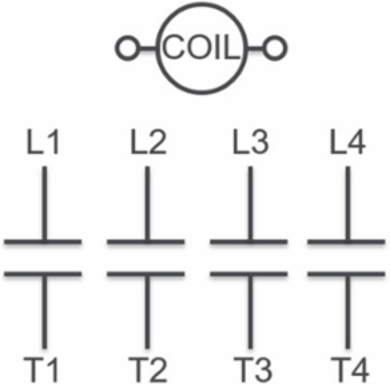

Pole Contact Composition4 NO
Product Or Component TypeDefinite Purpose Contactor
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ue] Rated Operational Voltage600 V AC
Package Weight(Lbs)580.598 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 3 phase
- Range Of Product
- DPA
Product Or Component TypeDefinite Purpose Contactor
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
