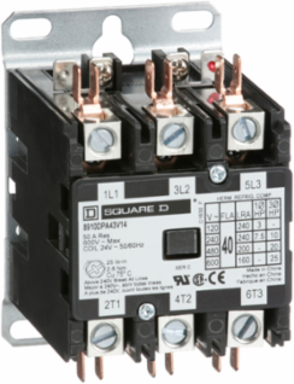

Square D 8910DPA43V14 Definite Purpose Contactor 40A 3-Pole 25HP 575VAC 24V AC Coil
- MPN: 8910DPA43V14
- UPC: 785901073451
- PPN: SCH-8910DPA43V14
CAD
$155.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

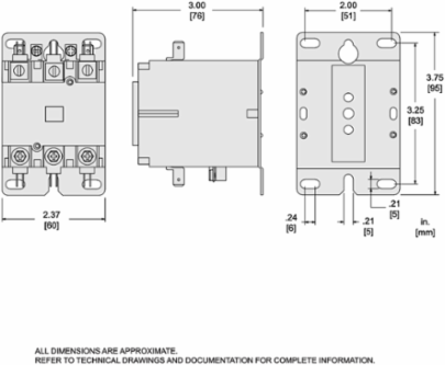

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
Features
- Engineered with a robust 40-amp full-load inductive rating (and a 50-amp resistive threshold), this Class 8910 Type DPA device effortlessly controls power to heavy-duty commercial equipment. It prevents premature contact pitting and welded connections under massive motor inrush loads, dramatically extending the operating life of your system.
- Featuring a factory-tested 24-volt AC 50/60 Hz coil, this definite purpose contactor acts as a direct, drop-in replacement for standard commercial thermostats, building automation hubs, and safety switches. This eliminates the need for expensive control transformers or system rewiring, ensuring a hassle-free installation.
- Designed with three normally open (NO) poles, this component safely switches all three hot legs of a three-phase system simultaneously. Capable of handling up to 25 HP at 575V AC, it delivers clean, synchronized power interruption that safeguards heavy-duty industrial compressors, fans, and refrigeration units.
- Outfitted with both heavy-duty box lugs and handy quick-connect tab terminals, this contactor provides exceptional field flexibility. The straight-through wiring layout significantly reduces troubleshooting time, allows for clean cable routing, and shortens critical equipment downtime.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Mexico, United States
Complementary Attributes
- Line Rated Current
- 40 A
- Maximum Horse Power Rating
- 3-3 hp 115 V AC, 1 phase7.5-7.5 hp 230 V AC, 1 phase10-10 hp 230 V AC, 3 phase20-20 hp 460 V AC, 3 phase25-25 hp 575 V AC, 3 phase
Locked Rotor Rated Current240 A 277 V AC200 A 460 V AC160 A 575 V AC
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- box lugs, quick connect terminals
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Phase
- 3 phase
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- DPA
- Sustainable Packaging
- Yes
- [Uc] Control Circuit Voltage
- 24 V AC 50/60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyUL Recognized, CSA
Local Publishable Date2026-06-27
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2541
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Number Of Poles3P

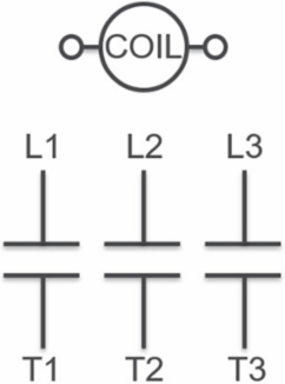

Pole Contact Composition3 NO
Product Or Component TypeDefinite Purpose Contactor
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ue] Rated Operational Voltage600 V AC
Package Weight(Lbs)471.736 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 3 phase
- Range Of Product
- DPA
Product Or Component TypeDefinite Purpose Contactor
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
