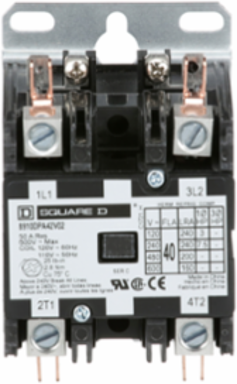

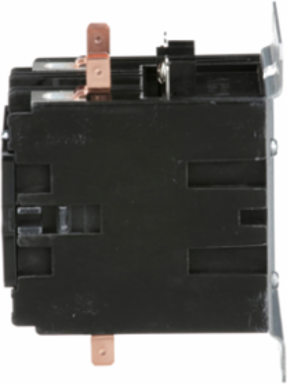

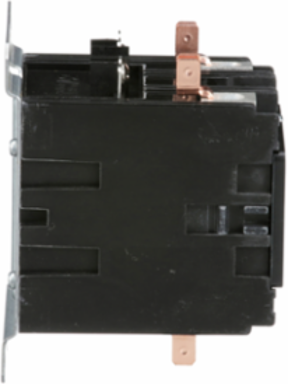

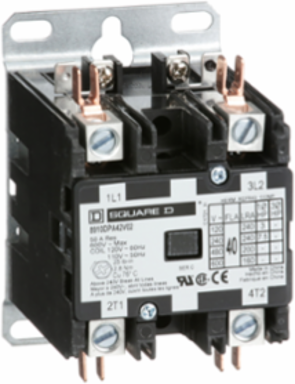

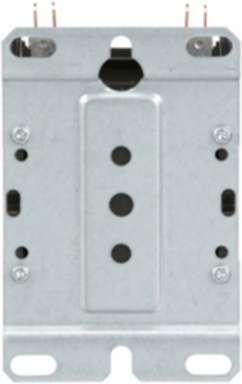

Square D 8910DPA42V02 Definite Purpose Contactor 40A 2 Pole 7.5HP at 230VAC 120V Coil
- MPN: 8910DPA42V02
- UPC: 785901073475
- PPN: SCH-8910DPA42V02
CAD
$139.55
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

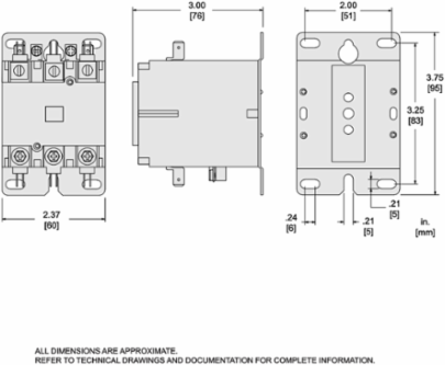

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
Features
- Engineered with a 40A this Definite Purpose (DP) contactor safely manages heavy high-inrush currents. It is the ideal replacement solution for high-demand HVAC compressors, commercial refrigeration systems, and large heating elements, ensuring your climate control machinery operates continuously without nuisance trips or contact degradation
- Outfitted with a 110V AC at 50 Hz / 120V AC at 60 Hz control coil (V02 voltage code), this contactor seamlessly integrates into typical North American line-voltage control loops. It easily pairs with standard field thermostats, energy management systems, and safety interlocks, eliminating the need for expensive external step-down control transformers or mismatched voltage hardware during field retrofits.

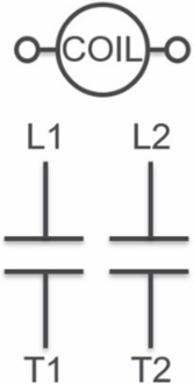

- Featuring a 2-pole, Normally Open (NO) power contact configuration, this unit provides a highly logical straight-through layout that matches standard single-phase 230V AC or 115V AC machinery profiles. The space-efficient frame maximizes clearance inside compact electrical enclosures, while the intuitive line-and-load positioning cuts layout planning and installation time in half.
- Built with versatile dual-connection termination points, this device comes standard with rugged box lugs designed to clamp tightly onto heavy power wires alongside standard 1/4-inch quick-connect tabs for auxiliary diagnostic lines. This secure, heavy-clamp connection layout dramatically lowers electrical resistance, prevents localized terminal arcing under heavy vibrational stress, and reduces long-term maintenance costs.
Documentation & Downloads
Specifications
Additional
- Amperage
- 40 A
- Rated Operational Voltage
- 600 V AC
- Poles Description
- 2P
- Electrical Connection
- box lugs, quick connect terminals
- Pole Contact Composition
- 2 NO
- RoHS Compliance
- Compliant with Exemptions
- Mercury Free
- Yes
- Range of Product
- DPA
Horsepower Rating3 HP at 115 V AC, 1 phase; 7.5 HP at 230 V AC, 1 phase
Locked Rotor Rated Current240 A at 277 V AC, 200 A at 460 V AC, 160 A at 575 V AC
Phase1 phase
Control Circuit Voltage120 V AC 60 Hz, 110 V AC 50 Hz
Product CertificationsUL recognized, CSA certified
REACH ComplianceContains SVHC above threshold
Country of OriginChina
Warranty18 months
