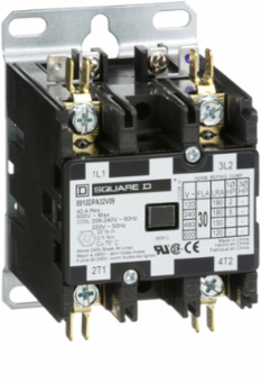

Square D 8910DPA32V09 Definite Purpose Contactor 30A 2 Pole 5HP 230VAC
- MPN: 8910DPA32V09
- UPC: 785901749813
- PPN: SCH-8910DPA32V09
CAD
$115.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
Features
- Rated for 30 Amps at voltages up to 600V AC, this robust 2-pole contactor is engineered to handle demanding power-switching tasks. It provides a highly reliable, wear-resistant connection for central air conditioning compressors, commercial heat pumps, and duct heaters, preventing terminal pitting and premature component breakdown.
- Equipped with a standard 220V–240V AC operating coil, this definite purpose contactor integrates seamlessly with standard North American 240-volt thermostat transformers and control networks. The premium encapsulated coil structure minimizes magnetic hum and resists moisture infiltration, ensuring quiet, long-lasting performance inside exposed outdoor condensing units.
- Built with an industry-standard, space-saving mounting footprint, the 8910DPA32V09 serves as a drop-in replacement for worn-out or obsolete definite purpose contactors. The open-frame design features a universal mounting base that aligns perfectly with pre-drilled backplates, saving field service technicians valuable installation time during emergency repair calls.
- Designed with heavy-duty silver cadmium oxide contacts, this device features a double-break mechanism that splits the electrical arc across two gaps simultaneously. This architecture rapidly dissipates heat during high-inrush motor startups (up to 150A locked-rotor current at 480V), preventing contact welding and significantly extending the operational life of your HVAC infrastructure.
Documentation & Downloads
Specifications
Additional
- Horse Power Rating
- 2-2 HP at 115 V AC, 1 phase; 5-5 HP at 230 V AC, 1 phase; 10 HP at 230 VAC, 3 phase; 15 HP at 460 VAC, 3 phase; 20 HP at 575 VAC, 3 phase
- Locked Rotor Rated Current
- 150 A at 460 V AC; 120 A at 575 V AC; 180 A at 277 V AC
- Rated Operational Voltage
- 600 V AC
- Phase
- 1 phase
- Electrical Connection
- Quick connect terminals, Binder head
- Product Certifications
- UL recognized, CSA certified
- China RoHS Regulation
- Out of China RoHS scope
- REACH Regulation
- Contains SVHC above threshold
- Country of Origin
- China
- Warranty
- 18 months
Rated Current30 A
Control Circuit Voltage208-240 V AC 60 Hz, 220 V AC 50 Hz
Number of Poles2
Pole Contact Composition2 NO
Dimensions3.75 in x 2.37 in x 3.00 in
Mercury FreeYes
EU RoHS DirectiveCompliant with Exemptions
RoHS Exemption InformationYes
Range Of ProductDPA
Product Or Component TypeDefinite Purpose Contactor
