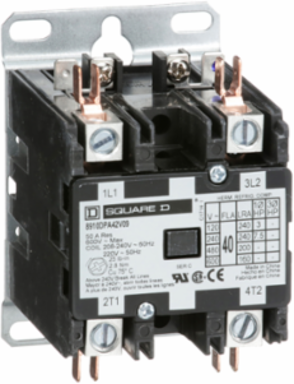

Square D 8910DPA42V09 Definite Purpose Contactor 40A 2 Pole 7.5HP 208/240VAC 1 Phase
Square D 8910DPA42V09 Definite Purpose Contactor 40A 2 Pole 7.5HP 208/240VAC 1 Phase
- MPN: 8910DPA42V09
- UPC: 785901073468
- PPN: SCH-8910DPA42V09
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$131.65/ EA
Description

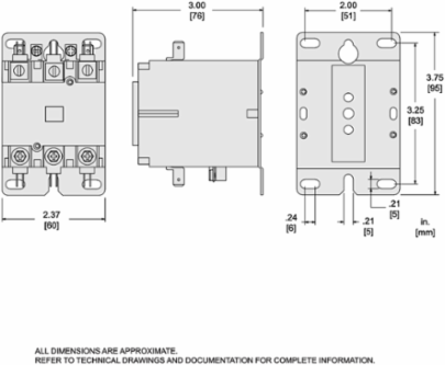

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
Specifications
Environment
- Product Certifications
- UL recognized || CSA
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- [Uc] Control Circuit Voltage
- 208...240 V AC 60 Hz || 220 V AC 50 Hz
- Motor Power Hp
- 3-3 hp 115 V AC, 1 phase || 7.5-7.5 hp 230 V AC, 1 phase
- Network Number Of Phases
- 1 phase
Locked Rotor Rated Current240 A 277 V AC || 200 A 460 V AC || 160 A 575 V AC
Electrical Connectionbox lugs || quick connect terminals
[Ue] Rated Operational Voltage600 V AC
Specifications
- Range Of Product
- DPA
- [In] Rated Current
- 40 A

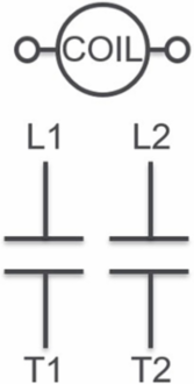

- Pole Contact Composition
- 2 NO
Poles Description2P
Product Or Component TypeDefinite Purpose Contactor
