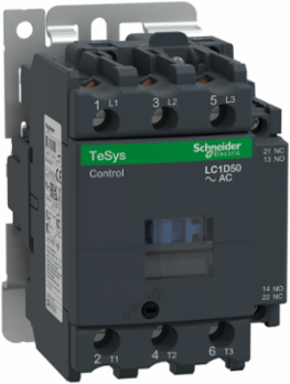

Schneider Electric LC1D50F7 TeSys Deca Contactor 3P 50A 110V AC 50/60Hz Screw Clamp Terminals
- MPN: LC1D50F7
- PPN: SCH-LC1D50F7
CAD
$426.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric LC1D50F7 TeSys Deca Contactor is specifically engineered for automation and control applications, making it a reliable choice for various electrical systems. With a robust 50A capacity, this contactor handles 3-phase loads efficiently at 110V AC and operates effectively across both 50Hz and 60Hz frequencies. Featuring screw clamp terminals, the design ensures secure and straightforward connections, facilitating easier installation and maintenance in industrial settings. This contactor's durability and performance make it an invaluable component for those looking to enhance their control mechanisms in demanding environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France, United States
Depth176 mm
Complementary Attributes
- Control Circuit Type
- DC standard, DC standard
- Maximum Horse Power Rating
- 15 hp at 230/240 V AC 60 Hz for 3 phase motors, 7.5 hp at 230/240 V AC 60 Hz for 1 phase motors, 15 hp at 200/208 V AC 60 Hz for 3 phase motors40 hp at 460/480 V AC 60 Hz for 3 phase motors, 40 hp at 575/600 V AC 60 Hz for 3 phase motors3 hp at 115 V AC 60 Hz for 1 phase motors
- Maximum Motor Phase Current
- 50 A
- Minimum Switching Current
- 5 mA for control circuit
- Rated Breaking Capacity
- 900 A at 440 V for power circuit conforming to IEC 60947
Control Circuit Voltage Limits0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz0.75...1.25 Uc (-40-60 °C):operational DC0.1...0.3 Uc (-40-70 °C):drop-out DC
Irms Rated Making Capacity140 A AC for control circuit conforming to IEC 60947-5-1900 A at 440 V for power circuit conforming to IEC 60947250 A DC for control circuit conforming to IEC 60947-5-1
Maximum Operating Rate3600 cyc/h at 60 °C
Minimum Switching Voltage17 V for control circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contactor Application
- resistive load, motor control
- Mechanical Robustness
- shocks contactor closed 15 Gn for 11 ms), vibrations contactor opened 2 Gn, 5...300 Hz), vibrations contactor closed 4 Gn, 5...300 Hz), shocks contactor opened 10 Gn for 11 ms)
- Operating Time
- 12...26 ms closing, 50 ms closing20 ms opening
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminal Philips No 2power circuit 5 N.m screw terminal flat Ø 6 to Ø 8 mm, control circuit 1.7 N.m screw clamp terminal pozidriv No 2, control circuit 1.7 N.m screw clamp terminal flat Ø 6 mm
- Control Circuit Voltage
- 110 V
- [Ie] Rated Operational Current
- 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit50 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 50 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- Connections - Terminals
- control circuit: 2 1-4 mm² - cable stiffness: flexible without cable endcontrol circuit: 2 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: 2 2.5-16 mm² - cable stiffness: rigid without cable endpower circuit: 1 2.5-25 mm² - cable stiffness: flexible without cable endpower circuit: 2 2.5-16 mm² - cable stiffness: flexible without cable endpower circuit: 1 2.5-25 mm² - cable stiffness: flexible with cable endpower circuit: 2 2.5-10 mm² - cable stiffness: flexible with cable end, control circuit: 2 1-4 mm² - cable stiffness: rigid, control circuit: 1 1-4 mm² - cable stiffness: rigidscrew clamp terminalscontrol circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigid without cable endcontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable endpower circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: rigid
- Carbon Footprint Of The Distribution Phase [A4]
- 0.2725576806360515, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.4 kg CO2 eq., 0.3907958470947523
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 46 kg CO2 eq., 45.50628623188404
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1926
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Associated Fuse Rating
- 100 A gG at <= 690 V coordination type 1 for power circuit100 A gG at <= 690 V coordination type 2 for power circuit conforming to IEC 60947-5-110 A gG for control circuit conforming to IEC 60947-5-1
- Compatibility Code
- LC1D
- Fire Resistance
- 850 °C IEC 60695-2-1
- Inrush Power In Va
- 160-160 VA cos phi 0.75 (at 20 °C)
- Mechanical Durability
- 10 Mcycles
- Number Of Poles
- 3P
- Pole Contact Composition
- 3 NO
- Product Or Component Type
- contactor
- Range Of Product
- TeSys Deca
- Safety Reliability Level
- B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 65 kg CO2 eq.
- Inf Motor Phase Current
- 50 A
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 681.09
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 127 mm
- [Ith] Conventional Free Air Thermal Current
- 80 A (at 60 °C) for power circuit10 A (at 60 °C) for control circuit
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hz
- Hold-in Power Consumption In Va
- 15-15 VA 50 Hz cos phi 0.3 (at 20 °C)
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Insulation Resistance> 10 MOhm for control circuit, > 10 MOhm for control circuit> 10 MOhm for control circuit, > 10 MOhm for control circuit
Motor Power Kw(AC-3e), 30 kW at 440 V AC 50 Hz (AC-3e), 30 kW at 500 V AC 50 Hz (AC-3e)15 kW at 220...230 V AC 50 Hz (AC-3e), 30 kW at 1000 V AC 50 Hz (AC-3e)25 kW at 415 V AC 50 Hz22 kW at 380...400 V AC 50 Hz25 kW at 415 V AC 50 Hz (AC-3)30 kW at 440 V AC 50 Hz (AC-3), 30 kW at 500 V AC 50 Hz (AC-3)15 kW at 220...230 V AC 50 Hz (AC-3), 11 kW at 400 V AC 50 Hz (AC-4), 30 kW at 1000 V AC 50 Hz (AC-3), 22 kW at 380...400 V AC 50 Hz (AC-3e)33 kW at 660...690 V AC 50 Hz (AC-3e)
Power Dissipation Per Pole9.6 W AC-13.7 W AC-3e, 3.7 W AC-3
Utilisation CategoryAC-1, AC-4, AC-3, AC-3e
Certificate AgencyGL, LROS (Lloyds register of shipping), RINA, CCC, BV, DNV, GOST, CSA, UKCA
[Ui] Rated Insulation Voltagepower circuit 690 V CSA IEC 60947-1, control circuit 600 V CSAcontrol circuit 600 V ULpower circuit 600 V CSA, power circuit 600 V UL IEC 60947-1, control circuit 690 V IEC 60947-1
Non-overlap Time1.5 ms on energisation between NC and NO contacts, 1.5 ms on de-energisation between NC and NO contacts
Carbon Footprint Of The End-of-life Phase [C1 To C4]5.154276898714952, 5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]14 kg CO2 eq., 13.816234817123652
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologybuilt-in bidirectional peak limiting diode suppressor
Device Short NameLC1D
Flame RetardanceV1 conforming to UL 94
Inrush Power In W19-19 W 20 °C)
Mounting Supportrail
Overvoltage CategoryIII
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
ReturnabilityYes
Software Versionv5.9.4
Time Constant34 ms
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1102005EN
Pep Verification Date2025-11-20
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %76
Width Nominal85 mm
[Uc] Control Circuit Voltage110 V110 V DC
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947
Hold-in Power Consumption In W7.4-7.4 W 20 °C
Package Weight(Lbs)1.448 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Climatic Withstand
- IACS E10 exposure to damp heat
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1102005EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ip Degree Of ProtectionIP2X VDE 0106, IP2X IEC 60529
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint65.14015147545345
Environmental DisclosureENVPEP1102005EN
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-11-20
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
