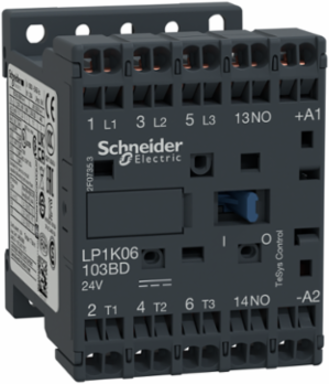

Schneider Electric LP1K06103BD TeSys K Contactor, 3P, 6A, 24V DC Coil, 1NO Auxiliary Contact, Compact 45mm
Schneider Electric LP1K06103BD TeSys K Contactor, 3P, 6A, 24V DC Coil, 1NO Auxiliary Contact, Compact 45mm
- MPN: LP1K06103BD
- PPN: SCH-LP1K06103BD
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$80.51/ EA
Description
TeSys K contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides a 24V DC coil, 1NO built-in auxiliary contact, connection by spring terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Product Certifications
- CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4
- Ambient Air Temperature For Storage
- -50-80 °C
- Operating Altitude
- 2000 m without derating
Ambient Air Temperature For Operation-25-50 °C
Flame RetardanceV1 UL 94 || requirement 2 NF F 16-101 || requirement 2 NF F 16-102
Ip Degree Of ProtectionIP2X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1503003EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1503003EN
Complementary
- Minimum Switching Current
- 5 mA for signalling circuit
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC <= 400 Hz || signalling circuit <= 690 V AC <= 400 Hz
- Average Impedance
- 3 mOhm - Ith 16 A 50 Hz for power circuit
- Control Circuit Voltage Limits
- operational: 0.8...1.15 Uc (at <50 °C) || drop-out: >= 0.10 Uc (at <50 °C)
- Mounting Support
- rail || plate
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Insulation Resistance
- > 10 MOhm for signalling circuit
- Irms Rated Making Capacity
- 110 A AC for power circuit conforming to IEC 60947 || 110 A AC for signalling circuit conforming to IEC 60947
- Associated Fuse Rating
- 25 A gG at <= 440 V for power circuit || 25 A aM for power circuit || 10 A gG for signalling circuit conforming to IEC 60947 || 10 A gG for signalling circuit conforming to VDE 0660
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Pole Contact Composition
- 3 NO
- [Ie] Rated Operational Current
- 6 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 6 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
- Maximum Operating Rate
- 3600 cyc/h
- Mechanical Durability
- 10 Mcycles
- Auxiliary Contacts Type
- instantaneous 1 NO
- Operating Time
- 30...40 ms coil energisation and NO closing || 10 ms coil de-energisation and NO opening
- Overvoltage Category
- III
- [Ui] Rated Insulation Voltage
- power circuit 600 V UL 508 || power circuit 690 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-5-1 || signalling circuit 600 V UL 508 || power circuit 600 V CSA C22.2 No 14 || signalling circuit 600 V CSA C22.2 No 14
- Heat Dissipation
- 1.3-1.3 W
[Uc] Control Circuit Voltage24 V DC
Height58 mm
Auxiliary Contact Composition1 NO
[Ith] Conventional Free Air Thermal Current16 A (at 60 °C) for power circuit || 10 A (at 50 °C) for signalling circuit
Control Circuit TypeDC standard
Hold-In Power Consumption In W3-3 W 20 °C
Rated Breaking Capacity110 A at 220...230 V conforming to IEC 60947 || 110 A at 380...400 V conforming to IEC 60947 || 110 A at 415 V conforming to IEC 60947 || 110 A at 440 V conforming to IEC 60947 || 80 A at 500 V conforming to IEC 60947 || 70 A at 660...690 V conforming to IEC 60947
Motor Power Kw1.5 kW 220...230 V AC 50/60 Hz AC-3 || 2.2 kW 380...415 V AC 50/60 Hz AC-3 || 3 kW 440/690 V AC 50/60 Hz AC-3 || 1.5 kW 220...230 V AC 50/60 Hz AC-3e || 2.2 kW 380...415 V AC 50/60 Hz AC-3e || 3 kW 440/690 V AC 50/60 Hz AC-3e || 1.5 kW 220...230 V AC 50/60 Hz AC-4 || 2.2 kW 380...415 V AC 50/60 Hz AC-4 || 3 kW 440/690 V AC 50/60 Hz AC-4
Net Weight0.225 kg
Connections - Terminalsspring terminals 1 0.75-1.5 mm²solid || spring terminals 1 0.75-1.5 mm²flexible without cable end || spring terminals 2 0.75-1.5 mm²flexible without cable end
Utilisation CategoryAC-3 || AC-3e || AC-4
Minimum Switching Voltage17 V for signalling circuit
Electrical Durability1.3 Mcycles 6 A AC-3 <= 440 V || 1.3 Mcycles 6 A AC-3e <= 440 V || 0.05 Mcycles 36 A AC-4 <= 440 V
Inrush Power In W3-3 W 20 °C)
Poles Description3P
Width45 mm
Depth57 mm
[Icw] Rated Short-Time Withstand Current90 A 50 °C - 1 s for power circuit || 85 A 50 °C - 5 s for power circuit || 80 A 50 °C - 10 s for power circuit || 60 A 50 °C - 30 s for power circuit || 45 A 50 °C - 1 min for power circuit || 40 A 50 °C - 3 min for power circuit || 20 A 50 °C - >= 15 min for power circuit || 80 A - 1 s for signalling circuit || 90 A - 500 ms for signalling circuit || 110 A - 100 ms for signalling circuit
Specifications
- Contactor Application
- motor control
- Range
- TeSys
Product Or Component Typecontactor
Device Short NameLP1K
