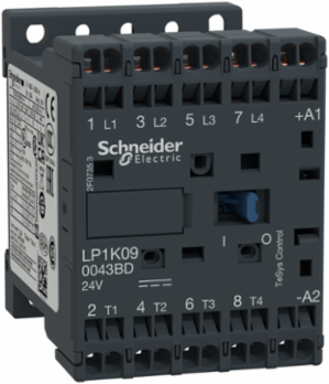

Schneider Electric LP1K090043BD contactor, TeSys K, 4P(4NO),AC-1, 440V, 20A, 24V DC coil, spring terminals
Schneider Electric LP1K090043BD contactor, TeSys K, 4P(4NO),AC-1, 440V, 20A, 24V DC coil, spring terminals
- MPN: LP1K090043BD
- PPN: SCH-LP1K090043BD
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$98.54/ EA
Description
contactor, TeSys K, 4P(4NO),AC-1, 440V, 20A, 24V DC coil, spring terminals
Specifications
Environment
- Product Certifications
- CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4
- Ambient Air Temperature For Storage
- -50-80 °C
- Operating Altitude
- 2000 m without derating
Ambient Air Temperature For Operation-25-50 °C
Flame RetardanceV1 UL 94 || requirement 2 NF F 16-101 || requirement 2 NF F 16-102
Ip Degree Of ProtectionIP2X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1503003EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1503003EN
Complementary
- [Uc] Control Circuit Voltage
- 24 V DC
- Height
- 58 mm
- Control Circuit Voltage Limits
- operational: 0.8...1.15 Uc (at <50 °C) || drop-out: >= 0.10 Uc (at <50 °C)
- Mounting Support
- plate || rail
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Rated Breaking Capacity
- 110 A at 220...230 V conforming to IEC 60947 || 110 A at 380...400 V conforming to IEC 60947 || 110 A at 415 V conforming to IEC 60947 || 110 A at 440 V conforming to IEC 60947 || 80 A at 500 V conforming to IEC 60947 || 70 A at 660...690 V conforming to IEC 60947
- Associated Fuse Rating
- 25 A gG at <= 440 V for power circuit || 25 A aM for power circuit
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Pole Contact Composition
- 4 NO
- [Ie] Rated Operational Current
- 20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit
- Electrical Durability
- 0.16 Mcycles 20 A AC-1 <= 690 V
- Mechanical Durability
- 10 Mcycles
- Operating Time
- 30...40 ms coil energisation and NO closing || 10 ms coil de-energisation and NO opening
- Overvoltage Category
- III
- [Ui] Rated Insulation Voltage
- power circuit 600 V UL 508 || power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA C22.2 No 14
- Heat Dissipation
- 1.3-1.3 W
[Ue] Rated Operational Voltagepower circuit <= 690 V AC <= 400 Hz || signalling circuit <= 690 V AC <= 400 Hz
Average Impedance3 mOhm - Ith 16 A 50 Hz for power circuit
[Ith] Conventional Free Air Thermal Current16 A (at 60 °C) for power circuit || 10 A (at 50 °C) for signalling circuit
Control Circuit TypeDC standard
Hold-In Power Consumption In W3-3 W 20 °C
Irms Rated Making Capacity110 A AC for power circuit conforming to IEC 60947
Net Weight0.225 kg
Connections - Terminalsspring terminals 1 0.75-1.5 mm²solid || spring terminals 1 0.75-1.5 mm²flexible without cable end || spring terminals 2 0.75-1.5 mm²flexible without cable end
Utilisation CategoryAC-1
Maximum Operating Rate3600 cyc/h
Inrush Power In W3-3 W 20 °C)
Poles Description4P
Width45 mm
Depth57 mm
[Icw] Rated Short-Time Withstand Current90 A 50 °C - 1 s for power circuit || 85 A 50 °C - 5 s for power circuit || 80 A 50 °C - 10 s for power circuit || 60 A 50 °C - 30 s for power circuit || 45 A 50 °C - 1 min for power circuit || 40 A 50 °C - 3 min for power circuit || 20 A 50 °C - >= 15 min for power circuit
Specifications
- Contactor Application
- resistive load
- Range
- TeSys
Product Or Component Typecontactor
Device Short NameLP1K
