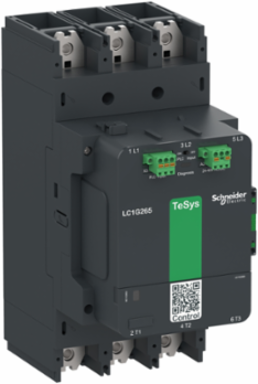

Schneider Electric LC1G265EHEA Contactor, high power, TeSys Giga, advanced version, AC-3, <= 440V, 265A, 3 pole/NO, 48-130VAC/DC coil
Schneider Electric LC1G265EHEA Contactor, high power, TeSys Giga, advanced version, AC-3, <= 440V, 265A, 3 pole/NO, 48-130VAC/DC coil
- MPN: LC1G265EHEA
- PPN: SCH-LC1G265EHEA
- UNSPSC: 39121529
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3387.75/ EA
Description
Contactor, high power, TeSys Giga, advanced version, AC-3, <= 440V, 265A, 3 pole/NO, 48-130VAC/DC coil
Features
- Designed to meet needs of demanding applications built-in with advanced features and functionalities
- Less number of references, simple to select, choose means less inventory
- Cable memory kit, saves downtime and improves productivity by performing quick maintenance
- Overload relay built in ground fault protection, phase imbalance/failure protection and protection of single phase loads
- Coil designed for less energy consumption and wider voltage band-width
- Auxiliary contacts is highly reliable and suitable for 17V 1mA to address more challenging specific control applications
- Advanced Local & Remote Contact Wear Diagnostic feature for predictive maintenance
- Modularity design and compact size for easy maintenance, short down times and less installation space consumption
- Robust control solutions for AC-3 applications up to 800 A (450kW) and AC-1 applications up to 1050 A
- Unique QR code, quick access to complete product data, technical video, anti-counterfeit checking
Specifications
Physical Attributes
- Color
- dark grey
Conformance Attributes
- Product Certifications
- CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
StandardsEN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-1, UL 60335-2-40:Annex JJ
Complementary Attributes
- Control Circuit Voltage Limits
- operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
- Maximum Operating Rate
- 600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1, 150 cyc/h AC-4
- Maximum Motor Phase Current
- 265 A
Maximum Horse Power Rating75 hp at 200/208 V 60 Hz, 100 hp at 230/240 V 60 Hz, 200 hp at 460/480 V 60 Hz, 200 hp at 575/600 V 60 Hz
IRMS Rated Making Capacity3320 A at 440 V
Rated Breaking Capacity2380 A at 440 V
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 315 A aM at <= 440 V for motor, 250 A aM at <= 690 V for motor, 400 A gG at <= 690 V, 450 A UL Type J at <= 600 V
- Electrical Durability
- 300 cycles AC-1 400 V, 500 cycles AC-3 400 V, 500 cycles AC-3e 400 V, 150 cycles AC-4 400 V
- Motor Power KW
- 132 kW at 400 V AC 50/60 Hz (AC-3), 132 kW at 415 V AC 50/60 Hz (AC-3), 160 kW at 440 V AC 50/60 Hz (AC-3), 160 kW at 500 V AC 50/60 Hz (AC-3), 200 kW at 690 V AC 50/60 Hz (AC-3), 160 kW at 1000 V AC 50/60 Hz (AC-3), 132 kW at 400 V AC 50/60 Hz (AC-4), 132 kW at 415 V AC 50/60 Hz (AC-4), 160 kW at 500 V AC 50/60 Hz (AC-4), 160 kW at 690 V AC 50/60 Hz (AC-4), 160 kW at 1000 V AC 50/60 Hz (AC-4), 75 kW at 230 V AC 50/60 Hz (AC-3e), 132 kW at 400 V AC 50/60 Hz (AC-3e), 132 kW at 415 V AC 50/60 Hz (AC-3e), 160 kW at 440 V AC 50/60 Hz (AC-3e), 160 kW at 500 V AC 50/60 Hz (AC-3e), 200 kW at 690 V AC 50/60 Hz (AC-3e), 160 kW at 1000 V AC 50/60 Hz (AC-3e), 75 kW at 230 V AC 50/60 Hz (AC-3), 75 kW at 230 V AC 50/60 Hz (AC-4), 150 kW at 440 V AC 50/60 Hz (AC-4)
- Power Dissipation Per Pole
- 20 W AC-1 - Ith 385 A, 11 W AC-3 - Ith 265 A
- Utilisation Category
- AC-1, AC-3, AC-3e, AC-4, AC-5a, AC-5b, AC-6a, AC-6b, AC-8b, AC-8a, DC-1, DC-3, DC-5
- Ie Rated Operational Current2
- 385 A (at <40 °C) at <= 1000 V AC-1, 265 A (at <60 °C) at <= 440 V AC-3
- Ue Rated Operational Voltage2
- <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 19.64166244549503, 20 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 1 090 kg CO2 eq., 1089.6975
- Connections Terminals3
- power circuit: bar 2 - busbar cross section: 32 x 10 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end
- Ie Rated Operational Current5
- 385 A (at <40 °C) at <= 1000 V AC-1, 265 A (at <60 °C) at <= 440 V AC-3
- Ue Rated Operational Voltage5
- <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
- Local Publishable Date
- 2025-05-31
- Serviceability
- No
- Field Service Division
- PPIBS
- WEEE Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2105013
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Average Impedance
- 0.000144 Ohm
- Compatibility Code
- LC1G
- Device Short Name
- LC1G
- Hold In Power Consumption In VA
- 11.7-11.7 VA
- Inrush Power In VA
- 430-430 VA
- Mechanical Durability
- 8 Mcycles
- Overvoltage Category
- III
- Pole Contact Composition
- 3 NO
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Range Of Product
- TeSys Giga
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 1 163 kg CO2 eq.
- Ith Conventional Free Air Thermal Current2
- 385 A (at 40 °C)
- Uimp Rated Impulse Withstand Voltage2
- 8 kV
- Stocking Flag
- N
- Rated Thermal Current Ith2
- 385 A
- Pep Code
- ENVPEP2105013EN
- Pep Verification Date
- 2025-06-17
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; CN
- Ith Conventional Free Air Thermal Current5
- 385 A (at 40 °C)
- Uimp Rated Impulse Withstand Voltage5
- 8 kV
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Contactor Applicationpower switching, motor control
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Operating Time40...70 ms closing, 15...50 ms opening
Safety Reliability LevelB10d = 400000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Icw Rated Short Time Withstand Current22.2 kA - 10 s, 1.23 kA - 30 s, 0.95 kA - 1 min, 0.62 kA - 3 min, 0.48 kA - 10 min
Uc Control Circuit Voltage248...130 V, 48...130 V AC 50/60 Hz, 48...130 V DC
Carbon Footprint Of The Distribution Phase A42.6820739328554932, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A351 kg CO2 eq., 51.31534828203963
Connections Terminalspower circuit: bar 2 - busbar cross section: 32 x 10 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
Icw Rated Short Time Withstand Current52.2 kA - 10 s, 1.23 kA - 30 s, 0.95 kA - 1 min, 0.62 kA - 3 min, 0.48 kA - 10 min
Uc Control Circuit Voltage548...130 V AC 50/60 Hz, 48...130 V DC
Local Data StatusPublishable
Device TypeLV equipment - LV contactor
TraceabilityYes
Average Life Duration20 year(s)
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Function OptionStandard
Coil Technologybuilt-in bidirectional peak limiting
Connection Pitch45 mm
Halogen Free StatusHalogen free plastic parts product
Hold In Power Consumption In W9.0-9.0 W
Inrush Power In W360 W
Mounting Supportplate
Package Weight Lbs8.645 kg
Poles Description3P
Product Or Component Typecontactor
RangeTeSys
ReturnabilityYes
Tightening Torque35 N.m
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ui Rated Insulation Voltage21000 V
Medium DescContactor, high power, TeSys Giga, advanced version, AC-3, <= 440V, 265A, 3 pole/NO, 48-130VAC/DC coil
Product Kit IdentifierN
Rated Thermal Current Ith3385 A
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionSwitch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(NO), a control circuit voltage 100V-250V AC/DC, a power circuit voltage 1000V AC and a rated operational current 225A.
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; CN
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; CN
Global Commercial StatusCommercialised
Ui Rated Insulation Voltage51000 V
Environment Attributes Main
- Take Back
- Nej, No
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -25-60 °C
- Circularity Profile
- ENVEOLI2105013
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2105013EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
IP Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Carbon Footprint1163.3365846603901
Ambient Air Temperature For Storage-60-80 °C
Environmental DisclosureENVPEP2105013EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Giga
Specifications
- Depth
- 226 mm
