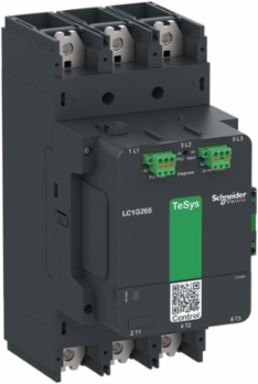

Schneider Electric LC1G330EHEA Contactor, high power, TeSys Giga, advanced version, AC-3, <= 440V, 330A, 3 pole/NO, 48-130VAC/DC coil

MPN: LC1G330EHEA
PPN: SCH-LC1G330EHEA

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$4177.48/ EA

Qty:

Loading add to cart quantity...

Description

Contactor, high power, TeSys Giga, advanced version, AC-3, <= 440V, 330A, 3 pole/NO, 48-130VAC/DC coil

Specifications

Physical Attributes

Color: dark grey

Conformance Attributes

Product Certifications: CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL

StandardsEN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-1, UL 60335-2-40:Annex JJ

Complementary Attributes

Control Circuit Voltage Limits: operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)

Maximum Operating Rate: 600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1, 150 cyc/h AC-4

Ie Rated Operational Current: 440 A (at <40 °C) at <= 1000 V AC-1, 330 A (at <60 °C) at <= 440 V AC-3

Ue Rated Operational Voltage: <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC

Maximum Motor Phase Current: 330 A

Ui Rated Insulation Voltage: 1000 V

Maximum Horse Power Rating100 hp at 200/208 V 60 Hz, 125 hp at 230/240 V 60 Hz, 250 hp at 460/480 V 60 Hz, 300 hp at 575/600 V 60 Hz

Icw Rated Short Time Withstand Current2.65 kA - 10 s, 1.8 kA - 30 s, 1.3 kA - 1 min, 0.9 kA - 3 min, 0.75 kA - 10 min

Uc Control Circuit Voltage48...130 V, 48...130 V AC 50/60 Hz, 48...130 V DC

Irms Rated Making Capacity3830 A at 440 V

Rated Breaking Capacity2940 A at 440 V

Uimp Rated Impulse Withstand Voltage8 kV

Important Information Attributes

Persona Type Ids: EU, OM, OM8, PB

Market Segmentation Id: COMMERCIAL, INDUSTRIAL

Associated Fuse Rating: 400 A aM at <= 440 V for motor, 250 A aM at <= 690 V for motor, 500 A gG at <= 690 V, 600 A UL Type L at <= 600 V

Electrical Durability: 300 cycles AC-1 400 V, 500 cycles AC-3 400 V, 500 cycles AC-3e 400 V, 150 cycles AC-4 400 V

Motor Power Kw: 160 kW at 400 V AC 50/60 Hz (AC-3), 160 kW at 415 V AC 50/60 Hz (AC-3), 200 kW at 440 V AC 50/60 Hz (AC-3), 200 kW at 500 V AC 50/60 Hz (AC-3), 220 kW at 690 V AC 50/60 Hz (AC-3), 185 kW at 1000 V AC 50/60 Hz (AC-3), 160 kW at 400 V AC 50/60 Hz (AC-4), 160 kW at 415 V AC 50/60 Hz (AC-4), 185 kW at 440 V AC 50/60 Hz (AC-4), 200 kW at 500 V AC 50/60 Hz (AC-4), 220 kW at 690 V AC 50/60 Hz (AC-4), 185 kW at 1000 V AC 50/60 Hz (AC-4), 90 kW at 230 V AC 50/60 Hz (AC-3e), 160 kW at 400 V AC 50/60 Hz (AC-3e), 160 kW at 415 V AC 50/60 Hz (AC-3e), 185 kW at 440 V AC 50/60 Hz (AC-3e), 200 kW at 500 V AC 50/60 Hz (AC-3e), 220 kW at 690 V AC 50/60 Hz (AC-3e), 185 kW at 1000 V AC 50/60 Hz (AC-3e), 90 kW at 230 V AC 50/60 Hz (AC-3), 90 kW at 230 V AC 50/60 Hz (AC-4)

Power Dissipation Per Pole: 30 W AC-1 - Ith 440 A, 16 W AC-3 - Ith 330 A

Utilisation Category: AC-1, AC-3, AC-3e, AC-4, AC-5a, AC-5b, AC-6a, AC-6b, AC-8b, AC-8a, DC-1, DC-3, DC-5

Icw Rated Short Time Withstand Current: 2.65 kA - 10 s, 1.8 kA - 30 s, 1.3 kA - 1 min, 0.9 kA - 3 min, 0.75 kA - 10 min

Carbon Footprint Of The Distribution Phase A4: 2.5947836279662004, 3 kg CO2 eq.

Carbon Footprint Of The Manufacturing Phase A1 To A3: 50 kg CO2 eq., 49.645248012927915

Local Data Status: Publishable

Global Commercial Status: Commercialised

Stocking Flag: N

Device Type: LV equipment - LV contactor

Traceability: Yes

Average Life Duration: 20 year(s)

Weee Scope: In

Weee Product Category: 5

Eoli Availability Display: Yes

Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold

Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold

Rohs Eur Status: Compliant By Exemption

Rohs Eur Full Compliance Status: Compliant By Exemption

With Recycled Cardboard: Yes

Product Contributes To Saved And Avoided Emissions: No

Tier: 1

Function Option: Standard

Average Impedance: 0.000144 Ohm

Compatibility Code: LC1G

Device Short Name: LC1G

Hold In Power Consumption In Va: 11.7-11.7 VA

Inrush Power In Va: 430-430 VA

Mechanical Durability: 8 Mcycles

Number Of Modules Per Plc Per Pc: 1

Pole Contact Composition: 3 NO

Product Availability: Stock - Normally stocked in distribution facility

Protective Treatment: TH

Range Of Product: TeSys Giga

Software Version: v5.9.4

Tightening Torque: 35 N.m

Weee Label: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Rated Thermal Current Ith: 440 A

Control Circuit Voltage: 48...130 V

Rated Thermal Current Hv: 440 A

Database Version: 2022-01

Pcr Version: PEP-PCR-ed4-2021 09 06

Type Of Verification For The Pep: Independent internal review

Functional Unit Description: Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(NO), a control circuit voltage 100V-250V AC/DC, a power circuit voltage 1000V AC and a rated operational current 225A.

Functional Unit Unit: Unit

Reference Lifetime In Y2: 20

Energy Model Manufacturing A1 A3 2: Electricity Mix; Production mix; Low voltage; CN

Energy Model Use B6 2: Electricity Mix; Production mix; Low voltage; CN

Recyclability Potential In 2: 55

Height Nominal: 290 mm

Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 2: 1376.25

Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 2: 22260

Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 2: 239.745

Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 2: 24613.5

Water Use M3 Eq Operational Energy Use B6 2: 60.7185

Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder

Market SegmentationCommercial, Industrial

Contactor Applicationpower switching, motor control

Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed

Operating Time40...70 ms closing, 15...50 ms opening

Safety Reliability LevelB10d = 400000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1

Connections Terminalscontrol circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end, power circuit: bar 2 - busbar cross section: 32 x 10 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end

Ie Rated Operational Current440 A (at <40 °C) at <= 1000 V AC-1, 330 A (at <60 °C) at <= 440 V AC-3

Carbon Footprint Of The End Of Life Phase C1 To C419.002408365882673, 19 kg CO2 eq.

Carbon Footprint Of The Use Phase B2 B3 B4 B61 376 kg CO2 eq., 1376.46

Local Publishable Date2025-05-31

Return IndicatorY

Stock Policy2

ServiceabilityNo

Field Service DivisionPPIBS

Use Carbon Footprint1376.46

Legacy Weee ScopeIn

Scope PerimeterAt least in Europe

End Of Life Doc RefENVEOLI2105013

Reach Full Compliance Status IdCONTAINS_SVHC

Rohs Eur In ScopeYes

Rohs Eur Conformity Date2121

China Rohs In ScopeNo

Without Single Use PlasticYes

Tier Id1

Function Option IdSTANDARD

Product Kit IdentifierN

Coil Technologybuilt-in bidirectional peak limiting

Connection Pitch45 mm

Halogen Free StatusHalogen free plastic parts product

Hold In Power Consumption In W9.0-9.0 W

Inrush Power In W360 W

Mounting Supportplate

Overvoltage CategoryIII

Poles Description3P

Product Or Component Typecontactor

RangeTeSys

ReturnabilityYes

Sustainable PackagingYes

Total Lifecycle Carbon Footprint1 448 kg CO2 eq.

Ith Conventional Free Air Thermal Current440 A (at 40 °C)

Warranty In Months18

Inf Motor Phase Current330 A

Pep CodeENVPEP2105013EN

Pep Verification Date2025-06-17

Psr VersionPSR-0005-ed2-2016 03 29

Data Sourceextrapolated product

Functional Unit Quantity1

Product Weight In G28914.8

Energy Consumption On Product Lifetime In Kwh1576.8

Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; CN

Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; CN

Offer Owner Code190788

Width Nominal140 mm

Climate Change Total Kg Co2 Eq Operational Energy Use B6 21376.46

Ecotoxicity Fresh Water Ctue Operational Energy Use B6 225957.5

Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 23.681

Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 222260

Environment Attributes Main

China Rohs Regulation: Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.

Permissible Ambient Air Temperature Around The Device: -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc

Halogene Performance: Halogen free plastic parts product

Mercury Free: Yes

Ambient Air Temperature For Operation: -25-60 °C

Circularity Profile: ENVEOLI2105013

Eu Rohs Directive: Compliant By Exemption

Packaging Made With Recycled Cardboard: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Pep Verification Date: 2025-06-17

Psr Version: PSR-0005-ed2-2016 03 29

Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106

Take BackNej

Recycled Metal Content At Cr Level0 %

Carbon Footprint1447.702440006777

Ambient Air Temperature For Storage-60-80 °C

Environmental DisclosureENVPEP2105013EN

Halogen Content PerformanceHalogen free plastic parts product

Packaging Without Single Use PlasticYes

Pep CodeENVPEP2105013EN

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type: contactor

Range Of ProductTeSys Giga

ETIM

ETIM 8: EC000066

ETIM 9EC000066

Specifications

Depth: 226 mm
