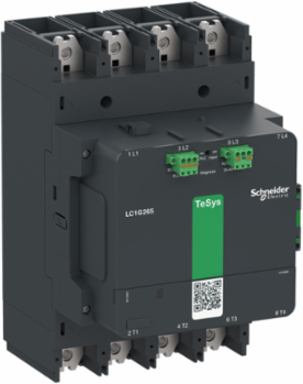

Schneider Electric LC1G3304BEEA Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 440A, 4 pole/NO, 24-48VAC/DC coil
- MPN: LC1G3304BEEA
- PPN: SCH-LC1G3304BEEA
CAD
$4806.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Giga high power contactor, 4 poles (4 NO) for category AC-1 applications up to 440A @440V. It provides a 24-48V AC/DC wide band low consumption electronic coil, PLC output control and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. It procures high reliability and durability with 5 Mcycles mechanical durability. Local and Remote Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It is possibility to replace switching module (main contacts), enhancement contactor life. Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. To be used with power connection by bolted connection with cable memory kit and control connections by spring terminals, accessible from front for easy and quick replacement. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude. The dimension is 290mm x 185mm x 209mm (H x W x D), compact size enables panel space savings. Multi standards certified (CE,CB,CCC,cULus,EAC,KC,RCM,Marine). Unique QR code provides quick access to complete product data.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, Czechia, France
Depth226 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Maximum Operating Rate
- 600 cyc/h AC-3, 600 cyc/h AC-3e300 cyc/h AC-1
- Irms Rated Making Capacity
- 1560 A at 440 V
- Rated Breaking Capacity
- 2940 A at 440 V
Control Circuit Voltage Limitsoperational: 0.8 Uc Min...1.1 Uc Max (at <60 °C)drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
Maximum Motor Phase Current330 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 400 A aM at <= 440 V for motor250 A aM at <= 690 V for motor500 A gG at <= 690 V, 600 A UL Type L at <= 600 V
- Power Dissipation Per Pole
- 30 W AC-1 - Ith 440 A, 16 W AC-3 - Ith 330 A
- Control Circuit Voltage
- 24...48 V
- [Uc] Control Circuit Voltage
- 24...48 V, 24...48 V AC 50/60 Hz, 24...48 V DC
- Connections - Terminals
- control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end, power circuit: bar 2 - busbar cross section: 32 x 10 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 13.730241763205159, 14 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 86 kg CO2 eq., 86.23527388956006
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2105013
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2121
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Coil Technology
- built-in bidirectional peak limiting
- Connection Pitch
- 45 mm
- Device Short Name
- LC1G
- Inrush Power In Va
- 540-540 VA
- Mechanical Durability
- 8 Mcycles
- Number Of Modules Per Plc Per Pc
- 1
- Operating Time
- 40...70 ms closing15...50 ms opening
- Pole Contact Composition
- 4 NO
- Product Or Component Type
- contactor
- Range
- TeSys
- Returnability
- No
- Software Version
- v6.2.4
- Tightening Torque
- 35 N.m
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2105013EN
- Pep Verification Date
- 2026-03-19
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; China, CN
- Recyclability Potential In %
- 55
- Width Nominal
- 185 mm
- [Ie] Rated Operational Current
- 330 A (at <60 °C) at <= 440 V AC-3440 A (at <40 °C) at <= 1000 V AC-1
- [Ui] Rated Insulation Voltage
- 1000 V
- Hold-in Power Consumption In Va
- 17.9-17.9 VA
- Rated Thermal Current (Ith)
- 440 A
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536410045
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor openvibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Utilisation CategoryAC-3, AC-3e, AC-1, AC-5a, AC-5b, AC-6a, AC-6b, DC-1, DC-3, DC-5
Certificate AgencyCB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
[Ue] Rated Operational Voltage<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Carbon Footprint Of The Distribution Phase [A4]15.629861695978992, 16 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1 kg CO2 eq., 0.12943937065385802
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]2 605 kg CO2 eq., 2605.2815669568154
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Impedance0.000144 Ohm
Compatibility CodeLC1G
Contactor Applicationpower switching
Electrical Durability300 cycles AC-1 400 V
Inrush Power In W380 W
Mounting Supportplate
Number Of Poles4P
Overvoltage CategoryIII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH
Range Of ProductTeSys Giga
Safety Reliability LevelB10d = 400000 cycles contactor with nominal load EN/ISO 13849-1B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Sustainable PackagingYes
Total Lifecycle Carbon Footprint2 721 kg CO2 eq.
Rated Thermal Current Hv440 A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh3153.6
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal290 mm
[Icw] Rated Short-time Withstand Current2.65 kA - 10 s1.8 kA - 30 s1.3 kA - 1 min0.9 kA - 3 min0.75 kA - 10 min
[Ith] Conventional Free Air Thermal Current440 A (at 40 °C)
[Uimp] Rated Impulse Withstand Voltage8 kV
Hold-in Power Consumption In W6.4-6.4 W
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)11.3 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc, -40-70 °C at Uc-40-70 °C at Uc, -40-70 °C at Uc
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2105013
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-03-19
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint2721.0063836762133
Environmental DisclosureENVPEP2105013EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2105013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Giga
