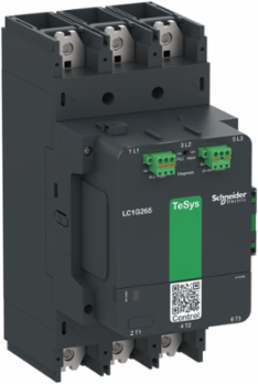

Schneider Electric LC1G400EHEA Contactor, high power, TeSys Giga, advanced version, AC-3, <= 440V, 400A, 3 pole/NO, 48-130VAC/DC coil
Schneider Electric LC1G400EHEA Contactor, high power, TeSys Giga, advanced version, AC-3, <= 440V, 400A, 3 pole/NO, 48-130VAC/DC coil
- MPN: LC1G400EHEA
- PPN: SCH-LC1G400EHEA
- UNSPSC: 39121529
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4639.09/ EA
Description
Contactor, high power, TeSys Giga, advanced version, AC-3, <= 440V, 400A, 3 pole/NO, 48-130VAC/DC coil
Features
- Designed to meet needs of demanding applications built-in with advanced features and functionalities
- Less number of references, simple to select, choose means less inventory
- Cable memory kit, saves downtime and improves productivity by performing quick maintenance
- Overload relay built in ground fault protection, phase imbalance/failure protection and protection of single phase loads
- Coil designed for less energy consumption and wider voltage band-width
- Auxiliary contacts is highly reliable and suitable for 17V 1mA to address more challenging specific control applications
- Advanced Local & Remote Contact Wear Diagnostic feature for predictive maintenance
- Modularity design and compact size for easy maintenance, short down times and less installation space consumption
- Robust control solutions for AC-3 applications up to 800 A (450kW) and AC-1 applications up to 1050 A
- Unique QR code, quick access to complete product data, technical video, anti-counterfeit checking
Specifications
Physical Attributes
- Color
- dark grey
Conformance Attributes
- Product Certifications
- CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
StandardsEN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-1, UL 60335-2-40:Annex JJ
Complementary Attributes
- Control Circuit Voltage Limits
- operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
- Maximum Operating Rate
- 600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1, 150 cyc/h AC-4
- Maximum Motor Phase Current
- 400 A
Maximum Horse Power Rating125 hp at 200/208 V 60 Hz, 150 hp at 230/240 V 60 Hz, 300 hp at 460/480 V 60 Hz, 400 hp at 575/600 V 60 Hz
IRMS Rated Making Capacity5090 A at 440 V
Rated Breaking Capacity3480 A at 440 V
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 500 A aM at <= 440 V for motor, 315 A aM at <= 690 V for motor, 630 A gG at <= 690 V, 600 A UL Type L at <= 600 V
- Electrical Durability
- 300 cycles AC-1 400 V, 500 cycles AC-3 400 V, 500 cycles AC-3e 400 V, 150 cycles AC-4 400 V
- Motor Power KW
- 200 kW at 400 V AC 50/60 Hz (AC-3), 200 kW at 415 V AC 50/60 Hz (AC-3), 250 kW at 440 V AC 50/60 Hz (AC-3), 250 kW at 500 V AC 50/60 Hz (AC-3), 315 kW at 690 V AC 50/60 Hz (AC-3), 220 kW at 1000 V AC 50/60 Hz (AC-3), 200 kW at 400 V AC 50/60 Hz (AC-4), 200 kW at 415 V AC 50/60 Hz (AC-4), 220 kW at 440 V AC 50/60 Hz (AC-4), 250 kW at 500 V AC 50/60 Hz (AC-4), 315 kW at 690 V AC 50/60 Hz (AC-4), 220 kW at 1000 V AC 50/60 Hz (AC-4), 110 kW at 230 V AC 50/60 Hz (AC-3e), 200 kW at 400 V AC 50/60 Hz (AC-3e), 200 kW at 415 V AC 50/60 Hz (AC-3e), 250 kW at 440 V AC 50/60 Hz (AC-3e), 250 kW at 500 V AC 50/60 Hz (AC-3e), 315 kW at 690 V AC 50/60 Hz (AC-3e), 220 kW at 1000 V AC 50/60 Hz (AC-3e), 110 kW at 230 V AC 50/60 Hz (AC-3), 110 kW at 230 V AC 50/60 Hz (AC-4)
- Power Dissipation Per Pole
- 30 W AC-1 - Ith 550 A, 16 W AC-3 - Ith 400 A
- Utilisation Category
- AC-1, AC-3, AC-3e, AC-4, AC-5a, AC-5b, AC-6a, AC-6b, AC-8b, AC-8a, DC-1, DC-3, DC-5
- Ie Rated Operational Current2
- 550 A (at <40 °C) at <= 1000 V AC-1, 400 A (at <60 °C) at <= 440 V AC-3
- Ue Rated Operational Voltage2
- <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 19.002408365882673, 19 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 1 376 kg CO2 eq., 1376.46
- Connections Terminals3
- power circuit: bar 2 - busbar cross section: 32 x 10 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end
- Ie Rated Operational Current5
- 550 A (at <40 °C) at <= 1000 V AC-1, 400 A (at <60 °C) at <= 440 V AC-3
- Ue Rated Operational Voltage5
- <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
- Local Publishable Date
- 2026-02-11
- Device Type
- LV equipment - LV contactor
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Coil Technology
- built-in bidirectional peak limiting
- Connection Pitch
- 45 mm
- Halogen Free Status
- Halogen free plastic parts product
- Hold In Power Consumption In W
- 8.3-8.3 W
- Inrush Power In W
- 360 W
- Mounting Support
- plate
- Package Weight Lbs
- 8.944 kg
- Poles Description
- 3P
- Product Or Component Type
- contactor
- Range
- TeSys
- Returnability
- Yes
- Tightening Torque
- 35 N.m
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ui Rated Insulation Voltage2
- 1000 V
- Medium Desc
- Contactor, high power, TeSys Giga, advanced version, AC-3, <= 440V, 400A, 3 pole/NO, 48-130VAC/DC coil
- Product Kit Identifier
- N
- Rated Thermal Current Ith3
- 550 A
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(NO), a control circuit voltage 100V-250V AC/DC, a power circuit voltage 1000V AC and a rated operational current 225A.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; CN
- Global Commercial Status
- Commercialised
- Ui Rated Insulation Voltage5
- 1000 V
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Contactor Applicationpower switching, motor control
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Operating Time40...70 ms closing, 15...50 ms opening
Safety Reliability LevelB10d = 400000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
Icw Rated Short Time Withstand Current23.6 kA - 10 s, 2.4 kA - 30 s, 1.7 kA - 1 min, 1.2 kA - 3 min, 1.0 kA - 10 min
Uc Control Circuit Voltage248...130 V, 48...130 V AC 50/60 Hz, 48...130 V DC
Carbon Footprint Of The Distribution Phase A42.5947836279662004, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A350 kg CO2 eq., 49.645248012927915
Connections Terminalspower circuit: bar 2 - busbar cross section: 32 x 10 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
Icw Rated Short Time Withstand Current53.6 kA - 10 s, 2.4 kA - 30 s, 1.7 kA - 1 min, 1.2 kA - 3 min, 1.0 kA - 10 min
Uc Control Circuit Voltage548...130 V AC 50/60 Hz, 48...130 V DC
Local Data StatusPublishable
ManufacturerSquare D
ServiceabilityNo
Field Service DivisionPPIBS
WEEE ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2105013
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Average Impedance0.0001 Ohm
Compatibility CodeLC1G
Device Short NameLC1G
Hold In Power Consumption In VA11.7-11.7 VA
Inrush Power In VA450-450 VA
Mechanical Durability8 Mcycles
Overvoltage CategoryIII
Pole Contact Composition3 NO
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH
Range Of ProductTeSys Giga
Sustainable PackagingYes
Total Lifecycle Carbon Footprint1 448 kg CO2 eq.
Ith Conventional Free Air Thermal Current2550 A (at 40 °C)
Uimp Rated Impulse Withstand Voltage28 kV
Stocking FlagY
Rated Thermal Current Ith2550 A
Pep CodeENVPEP2105013EN
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; CN
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; CN
Ith Conventional Free Air Thermal Current5550 A (at 40 °C)
Uimp Rated Impulse Withstand Voltage58 kV
Environment Attributes Main
- Take Back
- Nej, No
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -25-60 °C
- Circularity Profile
- ENVEOLI2105013
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2105013EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
IP Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Carbon Footprint1447.702440006777
Ambient Air Temperature For Storage-60-80 °C
Environmental DisclosureENVPEP2105013EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Giga
Specifications
- Country of Origin
- France
Depth226 mm
