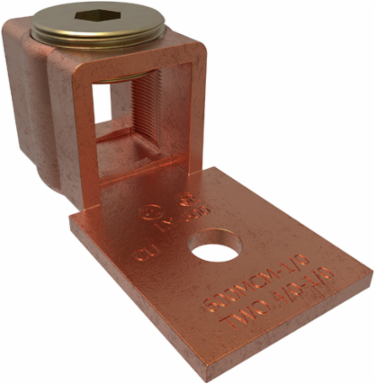

ILSCO LY-600 Copper Mechanical Lug, Conductor Range 600-1/0, 1 Port, 1 Hole, 3/8in Bolt Size, UL, CSA
- MPN: LY-600
- UPC: 783669594607
- PPN: ILC-LY-600
CAD
$119.93
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Mechanical Lug, Conductor Range 600-1/0, 1 Port, 1 Hole, 3/8in Bolt Size, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 1.375 in | 34.925 mm |
|---|---|
| Weight | 0.563 lbs |
| Length | 3.313 in | 84.1502 mm |
|---|---|
| Width | 1.5 in | 38.1 mm |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Dimension G (IN) | 0.875 |
|---|---|
| Drive Type Main | Internal Hex |
| Height (mm) | 34.925 |
| Mounting Bolt/Stud Size (mm) | 965.2 |
| Mounting Hole Diameter (mm) | 10.3124 |
| Tang Length (mm) | 46.863 |
| Tang Thickness (mm) | 3.9624 |
| Tang Width (mm) | 38.1 |
| Width BX (IN) | 6.1875 |
| Drive Size Main | 3/8 |
|---|---|
| Height BX (IN) | 2 |
| Length (mm) | 84.1502 |
| Mounting Hole Diameter (IN) | 0.406 |
| Tang Length (IN) | 1.845 |
| Tang Thickness (IN) | 0.156 |
| Tang Width (IN) | 1.5 |
| Weight BX (LB) | 5.7859 |
| Width (mm) | 38.1 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| UL Control Number | 453G |
| UL File Number | E6207 |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| ROHS Indicator | IND |
| UL / CULUS Specification | UL 486A/B Listed |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Mounting Hole Type | Thru |
| Number of Mounting Holes | 1 |
| Number of Ports / Wireways | 1 |
| Contains DE-OX® | No |
|---|---|
| Number of Conductors | 2, 1 |
| Number of Poles | 1 |
Material and Finish
| Conductor Material | Copper |
|---|---|
| Wire Binding Hardware Finish | Bright Dip |
| Material | Copper |
|---|---|
| Wire Binding Hardware Material | Brass |
Conductor Ranges
| Conductor Range CU Stranded (Primary, run, main, line) | 600 kcmil - 1/0 Str |
|---|
| Wire Combinations | (2) 2/0 Str, (2) 4/0 Str, (2) 3/0 Str, (2) 1/0 Str |
|---|
Additional Technical Specifications
| Conductor Type | Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | No |
| NEMA Code | S-588-3 |
| Carton Quantity Description | STD PACK QTY 10 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366959460 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | 3/8 |
|---|---|
| Wire Binding Screw Size | 1-1/8 |
| Number of Wire Binding Screws per Port | 1 |
|---|---|
| Wire Binding Torque | 375 |
Color
| Color | Copper |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
