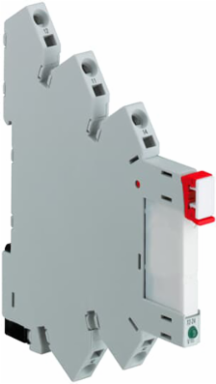

ABB 1SVR405541R6220 CR-S110VADC1CRGZ Interface Relay 110V AC/DC, 6A Output, Gold-Plated Contacts
- MPN: 1SVR405541R6220
- UPC: 888614263000
- PPN: ABB-1SVR405541R6220
- UNSPSC: 39122331
CAD
$41.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
CR-S110VADC1CRGZ Interface relay cpl. 1c/o, A1-A2=110VAC/DC, Output=6A/250VAC gold-plated contacts, spring terminals
Specifications
Dimensions
- Product Net Width
- 6.2 mm
- Product Net Depth / Length
- 94.7 mm
Product Net Height76.6 mm
Product Net Weight0.03 kg
Technical
- Function
- Fully assembled interface relay CR-S
- Rated Control Supply Voltage (Us)
- 110 V AC/DC
- Output Signal
- 250 V / 6 A
- Rated Operational Current AC-12 (Ie)
- (230 V) 6 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 1 A
- Connecting Capacity
- Flexible 2.5 mm²Rigid 2.5 mm²
- Wire Stripping Length
- 7 mm
- Standards
- CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61810-1IEC/EN 61984UL 508
Sub-FunctionRelay with gold-plated contacts
Output1 c/o (SPDT) contact
Terminal TypeSpring Terminals
Rated Operational Current DC-12 (Ie)(24 V) 6 A
Degree of ProtectionTerminals IP20
Tightening Torque0.5 N·m
Mounting on DIN RailTH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Classifications
- Object Classification Code
- K
- eClass
- V11.0 : 27371601
- E-Number (Sweden)
- 4001407
ETIM 9EC001437 - Switching relay
E-Number (Finland)2712377
Environmental
- Ambient Air Temperature
- Operation -40 ... +55 °CStorage 0 ... +40 °C
RoHS StatusFollowing EU Directive 2011/65/EU
Technical UL/CSA
- Connecting Capacity UL/CSA
- Flexible 14 AWGRigid 14 AWG
Tightening Torque UL/CSA4.42 in·lb
Ordering
- Minimum Order Quantity
- 10 piece
Customs Tariff Number85364900
