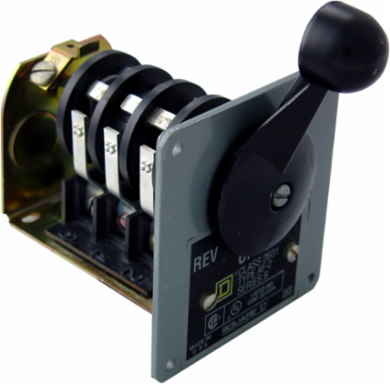

Square D 2601AF2 Reversing Drum Switch 2 HP at 230 VAC NEMA 13, 3P, 5.20 Inch Height
- MPN: 2601AF2
- UPC: 785901015024
- PPN: SCH-2601AF2
- UNSPSC: 39122207
CAD
$246.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
2601 reversing drum switches are designed to start and reverse motors by connecting them directly across the line. The devices can be used with squirrel cage and single phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. The maximum operational voltage is 600 VAC and 250 VDC. This 3 pole drum switch is rated for 1.5 HP at 115 VAC, 2 HP at 230 VAC, single phase, 2 HP at 230 VAC, 2 HP at 575 VAC, three phase, and 0.25 HP up to 600 VDC. The binder head screw terminals will accept 18 to 10 AWG copper wire. This switch has no pilot light indicator. A variety of enclosures are available. This device has a NEMA 13 oiltight flush mounting enclosure. This drum switch is 5.20 inches tall, 3.38 inches wide and 5.58 inches deep. Drum switches are UL listed and CSA certified for global applications.
Features
- 600VAC and 250VDC maximum
- Designed for motor rated up to 7.5hp
- Contacts are not replaceable
- Wide range of enclosures available
- UL and CSA
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Depth | 5.58 in |
| Weight | 708.058 g |
|---|
Complementary Attributes
| Maximum Horse Power Rating | 2-2 hp 230 V AC, 3 phase0.25-0.25 hp 230 V DC, 1.5-1.5 hp 115 V AC, 1 phase2-2 hp 230 V AC, 1 phase2-2 hp 200 V AC, 3 phase, 2-2 hp 460 V AC, 3 phase, 2-2 hp 575 V AC, 3 phase0.25-0.25 hp 115 V DC |
|---|
| Ue Rated Operational Voltage | 600 V AC250 V DC |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL Listed, CSA |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 1 kg CO2 eq., 1.105375597262945 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 4 kg CO2 eq., 4.149464097954219 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Standard |
| Electrical Connection | screw-clamp terminals |
| Number Of Poles | 3P |
| Product Or Component Type | Reversing Drum Switch |
| Returnability | Yes |
| Sustainable Packaging | No |
| Database Version | 2024-01 |
| Height Nominal | 5.20 in |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 0.2046199768949202, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.08471504124496838, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 3 kg CO2 eq., 3.157900745955735 |
| Local Publishable Date | 2025-11-13 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | A |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 9 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 3.38 in |
| Customs Code | 8536509025 |
| Functional Unit Description | When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 74 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Environmental Disclosure | ENVPEP2507018EN |
| Nema Degree Of Protection | NEMA 13 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2507018EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Carbon Footprint | 8.702075459312788 |
| Eu Rohs Directive | Not compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-09-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | Reversing Drum Switch |
|---|
| Range Of Product | A |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
