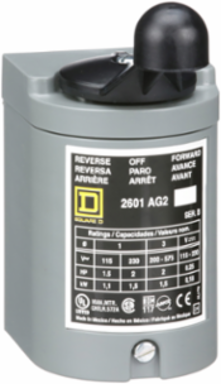

Square D 2601AG2 Reversing Drum Switch, 2 HP at 230 VAC, NEMA 1, 5.38 Inch Height
- MPN: 2601AG2
- UPC: 785901555414
- PPN: SCH-2601AG2
CAD
$300.11
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
2601 reversing drum switches are designed to start and reverse motors by connecting them directly across the line. The devices can be used with squirrel cage and single phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. A variety of enclosures are available. This device has a NEMA 1 general purpose enclosure. Drum switches are UL listed and CSA certified for global applications.
Features
- Built with a robust 3-pole architecture, this manual reversing drum switch allows commercial electricians and machinery operators to change the directional rotation of single-phase or three-phase induction motors across the line. It handles up to 2 HP at 230V AC (single phase) or up to 2 HP at 575V AC (polyphase), making it an ideal choice for wood lathes, metalworking machinery, and conveyor setups.
- ngineered to withstand demanding operational thresholds, this industrial-grade switch is rated for up to 600V AC and 250V DC (0.25 HP). This broad electrical compatibility ensures a secure interface with squirrel-cage motors as well as classic shunt, series, or compound DC power configurations, expanding its versatility across diverse fabrication environments.
- Housed in a compact, general-purpose NEMA 1 polymeric enclosure, this switch safely protects the interior electrical connections from accidental contact, tools, and light debris. Featuring a single captive cover screw for fast access and integrated 1/2-inch conduit knockouts in the bottom plate, it allows installers to establish clean, protective wire pathways in indoor commercial applications.
- Featuring extremely accessible, front-facing screw-clamp terminals, the 2601AG2 guarantees rapid, secure wire terminations for facility technicians. The large, fully insulated movable contact segments are rigidly affixed to the main shaft and heavily plated, maximizing the overall lifespan of the switch under repetitive, high-inrush motor-starting conditions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth4.61 in
Complementary Attributes
- Maximum Horse Power Rating
- 2-2 hp 230 V AC, 3 phase0.25-0.25 hp 230 V DC, 1.5-1.5 hp 115 V AC, 1 phase2-2 hp 230 V AC, 1 phase2-2 hp 200 V AC, 3 phase, 2-2 hp 460 V AC, 3 phase, 2-2 hp 575 V AC, 3 phase0.25-0.25 hp 115 V DC
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL Listed, CSA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.9 kg CO2 eq., 0.8851647232968061
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 3.3228155653068567
- Local Data Status
- Publishable
- Return Indicator
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- A
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 8 kg CO2 eq.
- Pep Code
- ENVPEP2507018EN
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 5.38 in
- [Ue] Rated Operational Voltage
- 600 V AC250 V DC
- Package Weight(Lbs)
- 567.0 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.16385596504724156, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.06783826803156956, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 kg CO2 eq., 3.157900745955735
Local Publishable Date2026-03-25
Stocking FlagN
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Electrical Connectionscrew-clamp terminals
Number Of Poles3P
Product Or Component TypeReversing Drum Switch
ReturnabilityYes
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionWhen a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %74
Width Nominal2.68 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536504000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP2507018EN
- Nema Degree Of Protection
- NEMA 1
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2507018EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Carbon Footprint7.5975752676382085
Eu Rohs DirectiveNot compliant
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- Reversing Drum Switch
Range Of ProductA
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
