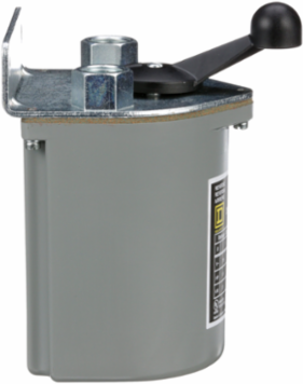

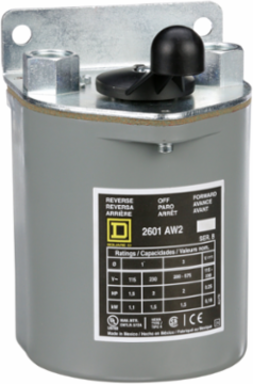

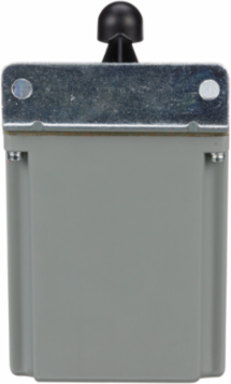

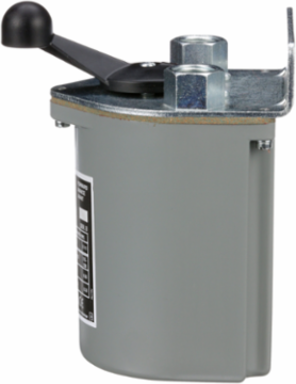

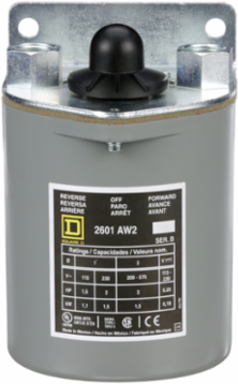

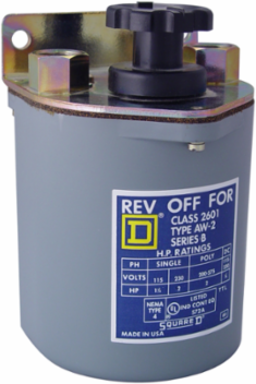

Square D 2601AW2 Reversing Drum Switch, NEMA 4, 2HP at 230VAC, 2HP at 575VAC
- MPN: 2601AW2
- UPC: 785901784432
- PPN: SCH-2601AW2
- UNSPSC: 39122207
CAD
$817.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
2601 reversing drum switches are designed to start and reverse motors by connecting them directly across the line. The devices can be used with squirrel cage and single phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. A variety of enclosures are available. This device has a NEMA 4 watertight enclosure. Drum switches are UL listed and CSA certified for global applications.
Features
- 600VAC and 250VDC maximum
- Designed for motor rated up to 7.5hp
- Contacts are not replaceable
- Wide range of enclosures available
- UL and CSA
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Complementary Attributes
| Maximum Horse Power Rating | 2-2 hp 230 V AC, 3 phase0.25-0.25 hp 230 V DC, 1.5-1.5 hp 115 V AC, 1 phase2-2 hp 230 V AC, 1 phase2-2 hp 200 V AC, 3 phase, 2-2 hp 460 V AC, 3 phase, 2-2 hp 575 V AC, 3 phase0.25-0.25 hp 115 V DC |
|---|
| Ue Rated Operational Voltage | 600 V AC250 V DC |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | CSA, UL Listed |
| Local Publishable Date | 2026-09-04 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Electrical Connection | screw-clamp terminals |
| Number Of Poles | 3P |
| Product Or Component Type | Reversing Drum Switch |
| Returnability | Yes |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | A |
| Sustainable Packaging | No |
| Customs Code | 8536504000 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Nema Degree Of Protection | NEMA 4 |
| Packaging Without Single Use Plastic | Yes |
| Take Back | No |
|---|---|
| Eu Rohs Directive | Not compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | Reversing Drum Switch |
|---|
| Range Of Product | A |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
