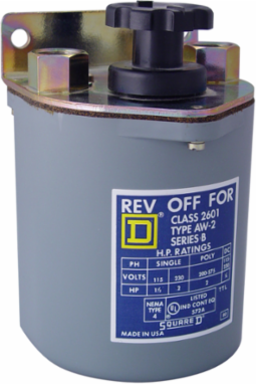

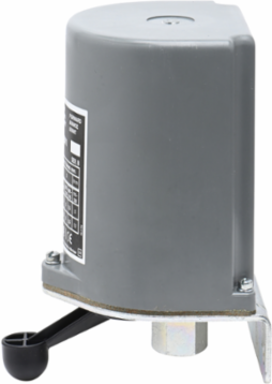

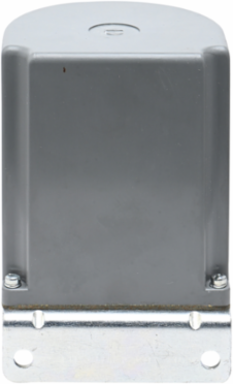

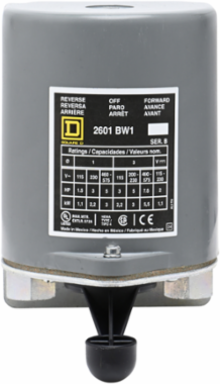

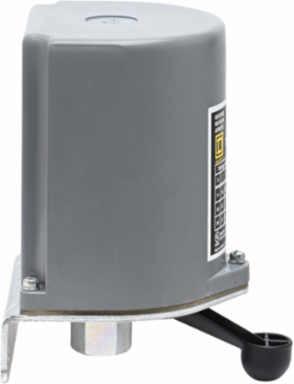

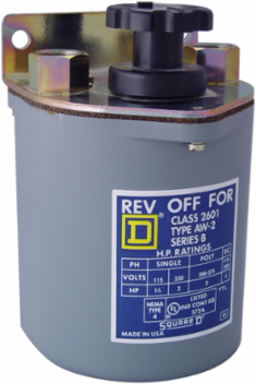

Square D 2601BW1 Reversing Drum Switch 5HP at 575VAC, NEMA 4, 6.89 Inch Height
- MPN: 2601BW1
- UPC: 785901784449
- PPN: SCH-2601BW1
CAD
$1121.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
2601 reversing drum switches are designed to starting and reversing motors by connecting them directly across the line. The devices can be used with squirrel cage and single-phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. A variety of enclosures are available. A NEMA 4 watertight and dusttight enclosure is used to protect this switch. Enclosure is 6.89 inches tall, 4.40 inches wide and 5.50 inches deep. Drum switches are UL listed and CSA certified.
Features
- Engineered for demanding mechanical setups, this 3-pole switch directly reverses squirrel cage AC motors and DC series/shunt motors up to 7.5 horsepower at 575V. It serves as an industrial-grade manual controller for high-torque workshop machinery like lathes, milling equipment, and small hoists, ensuring crisp, reliable motor directional shifts.
- Encased in a rugged, dusttight and watertight 304 stainless steel enclosure, this unit shields internal electrical contacts from spraying water, oil, and atmospheric debris. Measuring 6.89 inches tall by 4.40 inches wide, it provides indoor and outdoor environmental protection that satisfies the safety mandates of modern fabrication facilities and processing plants.
- Outfitted with durable Type B pressure-wire connectors and highly accessible screw-clamp terminals, the drum switch streamlines point-to-point field wiring. The internal architecture features spacious wiring clearways alongside pre-installed 1/2-inch conduit entry hubs, reducing termination stress and preventing hot-spot resistance gaps behind the plated, high-conductivity stationary contact fingers.
- Engineered with maximum ratings of 600V AC and 250V DC, this robust manual starter accommodates versatile high-voltage power networks. It is fully UL Listed and CSA Certified to satisfy localized code compliance, guaranteeing that your industrial control systems, conveyor arrays, and commercial equipment distributions operate safely under continuous full-load conditions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth5.50 in
Complementary Attributes
- Maximum Horse Power Rating
- 5-5 hp 230 V AC, 3 phase7.5-7.5 hp 575 V AC, 3 phase, 2-2 hp 115 V DC, 1.5-1.5 hp 115 V AC, 1 phase, 2-2 hp 230 V DC, 3-3 hp 230 V AC, 1 phase5-5 hp 460 V AC, 1 phase, 5-5 hp 575 V AC, 1 phase5-5 hp 200 V AC, 3 phase, 7.5-7.5 hp 460 V AC, 3 phase
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CSA, UL Listed
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 2.4978193249998055
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 9 kg CO2 eq., 9.376551859772436
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Electrical Connection
- screw-clamp terminals
- Number Of Poles
- 3P
- Product Or Component Type
- Reversing Drum Switch
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2507018EN
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 6.89 in
- [Ue] Rated Operational Voltage
- 600 V AC250 V DC
- Package Weight(Lbs)
- 1.601 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.4623801482814576, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.19143073871342378, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]16 kg CO2 eq., 15.895908998174619
Local Publishable Date2025-11-13
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductB
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint28 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionWhen a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %74
Width Nominal4.40 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509025
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP2507018EN
- Nema Degree Of Protection
- NEMA 4
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2507018EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Carbon Footprint28.424091069941742
Eu Rohs DirectiveNot compliant
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- Reversing Drum Switch
Range Of ProductB
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
