Schneider Electric XB5AS84462 Emergency stop switching off, Harmony XB5, plastic, red mushroom 40mm, 22mm, trigger latching turn to release, 2NC with monitoring
Schneider Electric XB5AS84462 Emergency stop switching off, Harmony XB5, plastic, red mushroom 40mm, 22mm, trigger latching turn to release, 2NC with monitoring
- MPN: XB5AS84462
- PPN: SCH-XB5AS84462
- UNSPSC: 39121545
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$184.51/ EA
Description

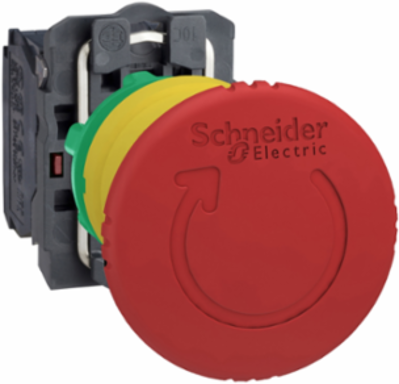

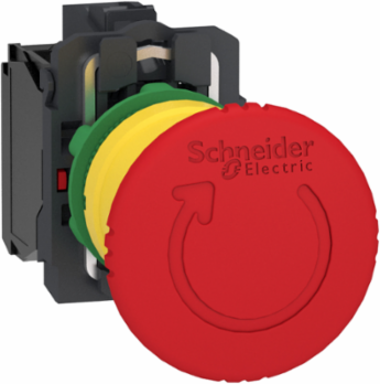

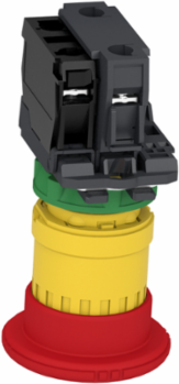

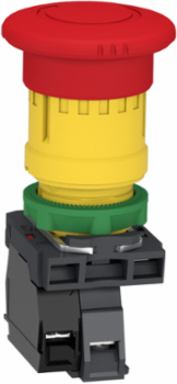

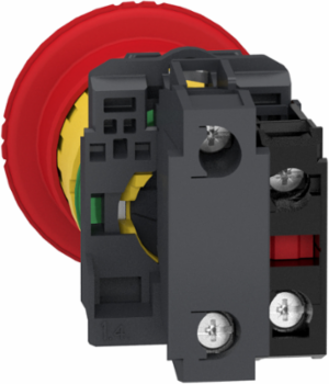

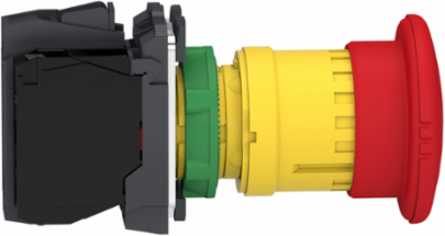

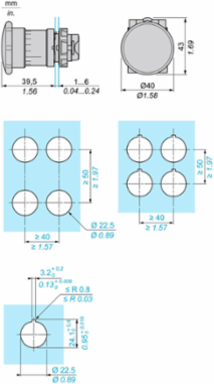

This product is part of the Harmony XB5 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This red Emergency stop pushbutton comes with a mushroom head. It operates with a turn to release mechanism. This mushroom headed pushbutton provides an ergonomic interface for controlling/stopping machines. It comes with 1 NC and 1 NC monitoring contact with slow break operation. It is clearly distinguishable visually at a distance due to a clear color and a prominent mushroom shape. It has a plastic bezal and has a 40mm diameter mushroom head. It is an IP66, IP67, IP69 and IP69K rated product and comes with CE, CCC, UKCA, EAC, UL and CSA certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB5 range offers innovative features for simple and efficient use.
Features
- Wide modular range to suit machines and operator safety.
- Designed to fit in a 22mm cut-out or Harmony XAPK control station ensuring compatibility with pre-existing machinery.
- Illuminated types to improve operator efficiency by reducing production downtime.
- Ergonomic design for emergency actuation in several environments
- Large set of accessories : circular legends, illuminated legend rings for harsh environments.
Specifications
Physical Attributes
- Cap Operator Or Lens Color
- red
Conformance Attributes
- Product Certifications
- CSA, BV, UL Listed, LROS (Lloyds register of shipping), DNV, CE, CCC, CB Scheme, UKCA, EAC
StandardsIEC 60947-1, IEC 60947-5-1, IEC 60947-5-5, IEC 60204-1, IEC 60947-5-4, IEC 60364-5-53, ISO 13850, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-1, JIS C8201-5-1, GB/T 14048.5, BS EN 60947-5-1, GOST IEC 60947-5-1
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contacts Material
- silver alloy (AgNi), silver alloy (AgSnO2)
- Electrical Durability
- 300000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 3 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 300000 cycles, DC-13, 0.3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 300000 cycles, DC-13, 1 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Operating Travel
- 1.5 mm NC changing electrical state), 4.3 mm total travel)
- Shape Of Screw Head
- cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
- Carbon Footprint Of The Distribution Phase A4
- 0.007715226480836236, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.020579917643332276, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0.1 kg CO2 eq., 0.060358
- Connections Terminals3
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.34 mm² without cable end IEC 60947-1
- Local Data Status
- Publishable
- Pre Comm Date
- 2021-12-06
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308012EN
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- COMPLIANT
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Average Percentage Of Recycled Plastic Content
- 13 %
- Cap Operator Or Lens Color
- red
- Contact Operation
- slow-break
- Customizable
- no
- Fixing Collar Material
- plastic
- Head Type
- standard
- Mounting Diameter
- 22 mm
- Operator Profile
- red mushroom Ø 40 mm, unmarked
- Package Weight Lbs
- 73.000 g
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH
- Reset
- turn to release
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 0.7 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ui Rated Insulation Voltage2
- 300 V 3)IEC 60947-1
- Product Repair Index Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Stocking Flag
- Y
- Pep Code
- ENVPEP2308012_V1
- Pep Verification Date
- 2023-10-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; APAC
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; APAC
- Ith Conventional Free Air Thermal Current5
- 6 A IEC 60947-5-1
- Uimp Rated Impulse Withstand Voltage5
- 4 kV IEC 60947-1
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Contacts Usagemonitoring contact, standard contacts
Electrical Reliabilityλ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 3.4 mA in clean environment IEC 60947-5-4
Product Or Component Typeemergency switching off push-button, emergency stop push-button
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Ie Rated Operational Current21.5 A 240 V, AC-15, B300 IEC 60947-5-1, 3 A 120 V, AC-15, B300 IEC 60947-5-1, 0.11 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.10417975926512513
Carbon Footprint Of The Manufacturing Phase A1 To A30.5 kg CO2 eq., 0.47591526765917014
Connections Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.34 mm² without cable end IEC 60947-1
Ie Rated Operational Current51.5 A 240 V, AC-15, B300 IEC 60947-5-1, 3 A 120 V, AC-15, B300 IEC 60947-5-1, 0.11 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
Local Publishable Date2026-01-12
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Average Percentage Of Recycled Metal Content22 %
Bezel Materialplastic
Compatibility CodeXB5
Contacts Type And Composition2 NC
Device Short NameXB5
Fixing Modefixing nut 2.2 N.m +/- 0.2)
Mechanical Durability300000 cycles
Operating Force47 N
Overvoltage Categoryclass II conforming to IEC 60536
Positive Openingwith IEC 60947-5-1 appendix K
Product Repair IndexA
Range Of ProductHarmony XB5
ReturnabilityYes
Short Circuit Protection6 A cartridge fuse gG IEC 60947-5-1
Tightening Torque0.8-1.2 N.m IEC 60947-1
Type Of Operatortrigger action and mechanical latching
Ith Conventional Free Air Thermal Current26 A IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage24 kV IEC 60947-1
Medium DescEmergency stop switching off, Harmony XB5, plastic, red mushroom 40mm, 22mm, trigger latching turn to release, 2NC with monitoring
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionXB5 emergency stop mushroom head modular pushbutton operates with a latched-turn-to-release mechanism. It has a plastic bezel and it is supplied with a red mushroom diameter 40 mm unmarked. It is easily installed into a standard 22mm diameter panel cut-out. Product meets the international standards such as IEC 60947-1 and IEC 60204 -1.
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; UE-27
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; APAC
Global Commercial StatusCommercialised
Ui Rated Insulation Voltage5300 V 3)IEC 60947-1
Environment Attributes Main
- Take Back
- No, Nej
- IP Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
- Reach Free SHVC
- Yes
- China ROHS Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-70 °C
- Circularity Profile
- ENVEOLI2308012EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2308012_V1
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
EU ROHS DirectiveCompliant , Compliant
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level22 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.6687481710484637
Ambient Air Temperature For Storage-40-70 °C
Environmental DisclosureENVPEP2308012_V1
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-10-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- emergency switching off push-button, emergency stop push-button
Range Of ProductHarmony XB5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 85 mm
Overview Attributes
- Device Presentation
- complete product
