Schneider Electric XB5AS8446 Emergency stop switching off, Harmony XB5, plastic, red mushroom 40mm, 22mm, trigger latching turn to release, 1NC with monitoring
Schneider Electric XB5AS8446 Emergency stop switching off, Harmony XB5, plastic, red mushroom 40mm, 22mm, trigger latching turn to release, 1NC with monitoring
- MPN: XB5AS8446
- PPN: SCH-XB5AS8446
- UNSPSC: 39121545
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$133.94/ EA
Description

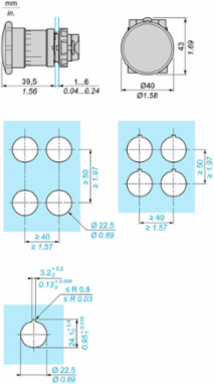

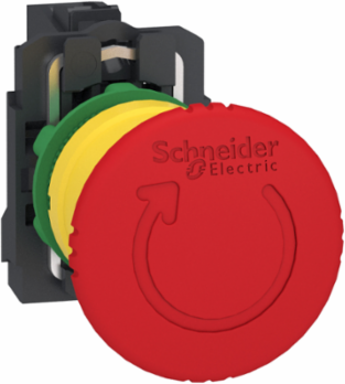

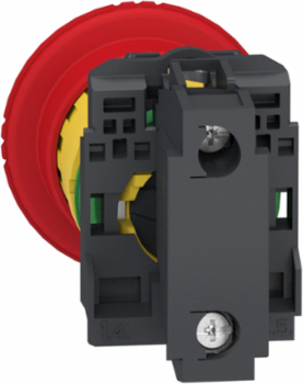

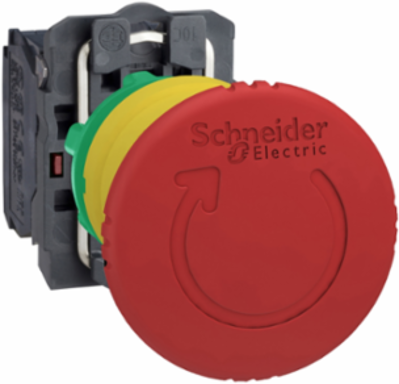

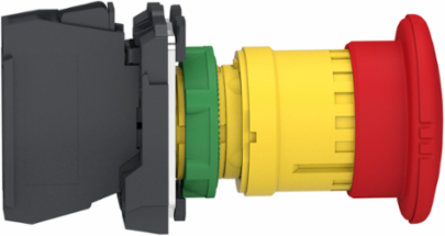

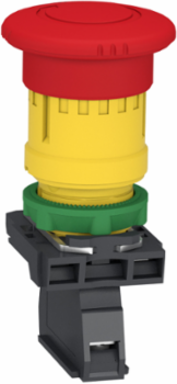

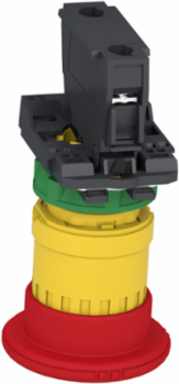

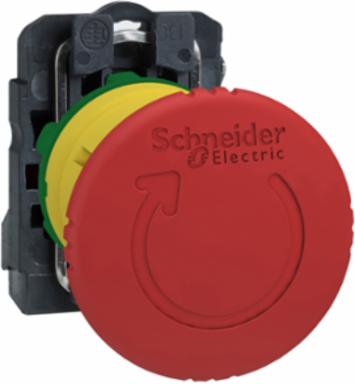

This product is part of the Harmony XB5 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This red Emergency stop pushbutton comes with a mushroom head. It operates with a turn to release mechanism. This mushroom headed pushbutton provides an ergonomic interface for controlling/stopping machines. It comes with 1 NC monitoring contact with slow break operation. It is clearly distinguishable visually at a distance due to a clear color and a prominent mushroom shape. It has a plastic bezal and has a 40mm diameter mushroom head. It is an IP66, IP67, IP69 and IP69K rated product and comes with CE, CCC, UKCA, EAC, UL and CSA certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB5 range offers innovative features for simple and efficient use.
Features
- Wide modular range to suit machines and operator safety.
- Designed to fit in a 22mm cut-out or Harmony XAPK control station ensuring compatibility with pre-existing machinery.
- Illuminated types to improve operator efficiency by reducing production downtime.
- Ergonomic design for emergency actuation in several environments
- Large set of accessories : circular legends, illuminated legend rings for harsh environments.
Specifications
Physical Attributes
- Cap Operator Or Lens Color
- red
Conformance Attributes
- Product Certifications
- CSA, BV, UL Listed, LROS (Lloyds register of shipping), DNV, CE, CCC, CB Scheme, UKCA, EAC
StandardsIEC 60947-1, IEC 60947-5-1, IEC 60947-5-5, IEC 60204-1, IEC 60947-5-4, IEC 60364-5-53, ISO 13850, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-1, JIS C8201-5-1, GB/T 14048.5, BS EN 60947-5-1, GOST IEC 60947-5-1
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contacts Material
- silver alloy (AgNi), silver alloy (AgSnO2)
- Electrical Reliability
- λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 3.4 mA in clean environment IEC 60947-5-4
- Product Or Component Type
- emergency switching off push-button, emergency stop push-button
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Ie Rated Operational Current2
- 1.5 A 240 V, AC-15, B300 IEC 60947-5-1, 3 A 120 V, AC-15, B300 IEC 60947-5-1, 0.11 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.1 kg CO2 eq., 0.08828793158061451
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.4 kg CO2 eq., 0.4033180234399747
- Connections Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.34 mm² without cable end IEC 60947-1
- Ie Rated Operational Current5
- 1.5 A 240 V, AC-15, B300 IEC 60947-5-1, 3 A 120 V, AC-15, B300 IEC 60947-5-1, 0.11 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
- Local Publishable Date
- 2026-01-12
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Average Percentage Of Recycled Metal Content
- 22 %
- Bezel Material
- plastic
- Compatibility Code
- XB5
- Contacts Type And Composition
- 1 NC
- Customizable
- no
- Fixing Collar Material
- plastic
- Head Type
- standard
- Mounting Diameter
- 22 mm
- Operator Profile
- red mushroom Ø 40 mm, unmarked
- Package Weight Lbs
- 64.0 g
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH
- Reset
- turn to release
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 0.6 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ui Rated Insulation Voltage2
- 300 V 3)IEC 60947-1
- Product Repair Index Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Stocking Flag
- Y
- Pep Code
- ENVPEP2308012_V1
- Pep Verification Date
- 2023-10-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; APAC
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; APAC
- Ith Conventional Free Air Thermal Current5
- 6 A IEC 60947-5-1
- Uimp Rated Impulse Withstand Voltage5
- 4 kV IEC 60947-1
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Durability300000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 3 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 300000 cycles, DC-13, 0.3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 300000 cycles, DC-13, 1 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Operating Travel1.5 mm NC changing electrical state), 4.3 mm total travel)
Shape Of Screw Headcross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Carbon Footprint Of The Distribution Phase A40.006538327526132404, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.017440608172315488, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60.1 kg CO2 eq., 0.060358
Connections Terminals3screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.34 mm² without cable end IEC 60947-1
Local Data StatusPublishable
Pre Comm Date2021-12-06
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308012EN
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Average Percentage Of Recycled Plastic Content13 %
Cap Operator Or Lens Colorred
Contact Operationslow-break
Contacts Usagemonitoring contact
Device Short NameXB5
Fixing Modefixing nut 2.2 N.m +/- 0.2)
Mechanical Durability300000 cycles
Operating Force47 N
Overvoltage Categoryclass II conforming to IEC 60536
Positive Openingwith IEC 60947-5-1 appendix K
Product Repair IndexA
Range Of ProductHarmony XB5
ReturnabilityYes
Short Circuit Protection6 A cartridge fuse gG IEC 60947-5-1
Tightening Torque0.8-1.2 N.m IEC 60947-1
Type Of Operatortrigger action and mechanical latching
Ith Conventional Free Air Thermal Current26 A IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage24 kV IEC 60947-1
Medium DescEmergency stop switching off, Harmony XB5, plastic, red mushroom 40mm, 22mm, trigger latching turn to release, 1NC with monitoring
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionXB5 emergency stop mushroom head modular pushbutton operates with a latched-turn-to-release mechanism. It has a plastic bezel and it is supplied with a red mushroom diameter 40 mm unmarked. It is easily installed into a standard 22mm diameter panel cut-out. Product meets the international standards such as IEC 60947-1 and IEC 60204 -1.
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; UE-27
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; APAC
Global Commercial StatusCommercialised
Ui Rated Insulation Voltage5300 V 3)IEC 60947-1
Environment Attributes Main
- Take Back
- No, Nej
- IP Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
- Reach Free SHVC
- Yes
- China ROHS Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-70 °C
- Circularity Profile
- ENVEOLI2308012EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2308012_V1
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
EU ROHS DirectiveCompliant , Compliant
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level22 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.5759428907190371
Ambient Air Temperature For Storage-40-70 °C
Environmental DisclosureENVPEP2308012_V1
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-10-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- emergency switching off push-button, emergency stop push-button
Range Of ProductHarmony XB5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 85 mm
Overview Attributes
- Device Presentation
- complete product
