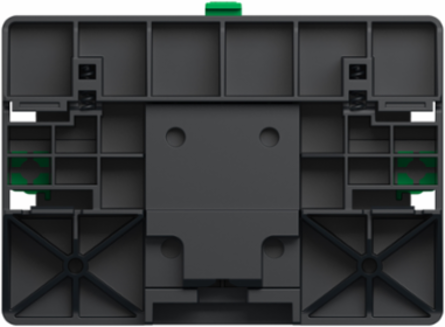

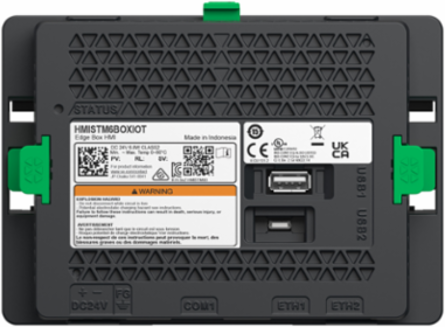

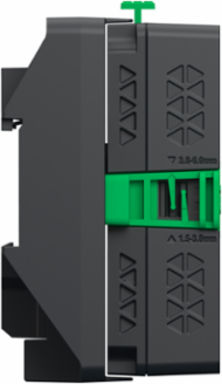

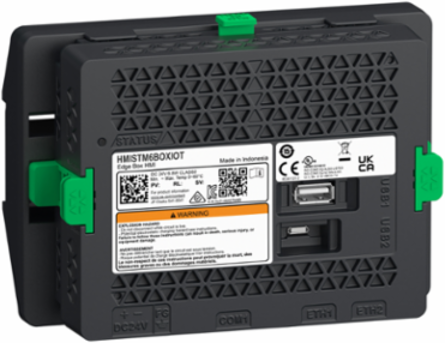

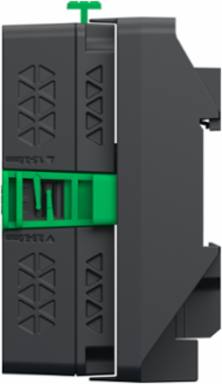

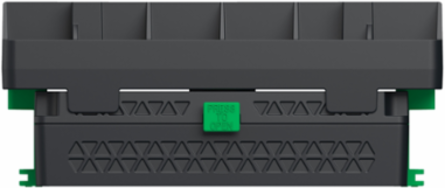

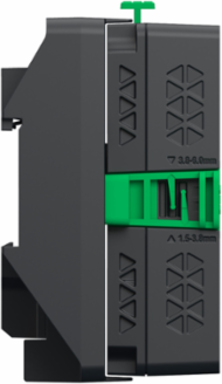

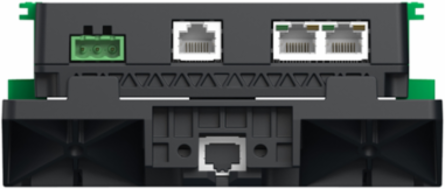

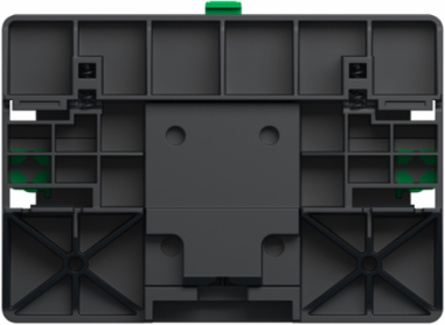

Schneider Electric HMISTM6BOXIOT Harmony ST6 Edge Box HMI, 1COM, 2 Ethernet, 2 USB, 24 VDC, 0.456 kg
- MPN: HMISTM6BOXIOT
- PPN: SCH-HMISTM6BOXIOT
CAD
$649.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Harmony ST6 Edge Box HMI from Schneider Electric is designed to advance your automation and control systems with seamless integration and operation. This robust human-machine interface features one communication port, two Ethernet ports, and two USB inputs, providing versatile connectivity options for various applications. Operating on 24 VDC, it delivers reliable performance while maintaining a compact design suitable for edge computing environments. Ideal for use in PLCs and data acquisition settings, this HMI not only enhances user interaction but also simplifies data management and monitoring processes.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Indonesia |
|---|

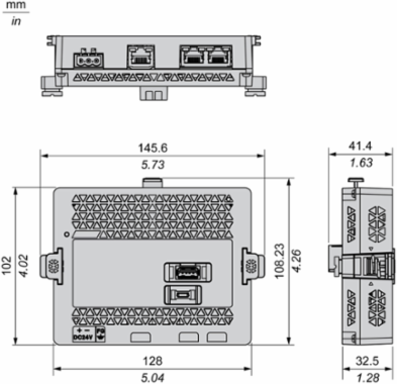

| Depth | 63.3 mm |
|---|
Complementary Attributes
| Integrated Connection Type | 2 Ethernet TCP/IP - RJ45 - 10/100BASE-T1 COM1 serial link - RJ45 - RS232C/RS485 2400...115200 bps)1 USB 2.0 port - USB micro-B, 1 USB 2.0 port - USB type A |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Memory Description | 512 KB NVRAM backup memory512 MB internal RAM, 1 GB NAND flash |
| Certificate Agency | CE, UKCA, cULus, RCM, KC, cULus Class 1 Division 2, ABS, RINA, DNV |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1257130487, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 91 kg CO2 eq., 90.8024052916 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 4 |
| Without Single Use Plastic | No |
| Dangerous Goods Code | LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT |
| Tier | 1 |
| Function Option | Standard |
| Electromagnetic Compatibility | electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3 |
| Operating System | linux |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony ST6 |
| Returnability | Yes |
| Software Version | EIME v5.8.1 |
| Total Lifecycle Carbon Footprint | 279 kg CO2 eq. |
| Vibration Resistance | 3.5 mm constant amplitude 5-9 Hz) IEC 61131-29.8 m/s² 9-150 Hz) IEC 61131-2 |
| Pep Code | ENVPEP2007003EN |
| Pep Verification Date | 2020-10-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To provide a modular human machine interface with ethernet communication during 10 years and a 100% use rate at 10.4W. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 306.6 |
| Energy Model - Installation [A5] | Electricity mix; AC; 220V; CN / Electricity mix; AC; 230V; FR / Electricity mix; AC; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; 220V; CN / Electricity mix; AC; 230V; FR / Electricity mix; AC; 120V; US |
| Width Nominal | 150.5 mm |
| F-gas Free | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Halogen-free Status | Product contains halogen above thresholds |
| Package Weight(Lbs) | 678 g |
| Take-back | No |
| Customs Code | 8537109170 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Software Package | EcoStruxure machine SCADA expert runtime 500 tags pre-activated, EcoStruxure machine SCADA expert runtime (mobile) 1 client activated, EcoStruxure secure connect advisor pre-installed |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0588348767, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0059013109 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 188 kg CO2 eq., 187.6336538462 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Device Type | HMI - Graphical display unit |
| Traceability | Yes |
| Average Life Duration | 7 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2007003EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2020 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Local Signalling | LED multi-colour |
| Processor Name | ARM Cortex-A8 |
| Product Or Component Type | modular HMI box |
| Realtime Clock | built-in |
| Shock Resistance | 147 m/s²IEC 61131-2 |
| Sustainable Packaging | No |
| Type Of Cooling | natural convection |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Indonesia |
| Energy Model - Use [B6] | Electricity mix; AC; 220V; CN / Electricity mix; AC; 230V; FR / Electricity mix; AC; 120V; US |
| Height Nominal | 101 mm |
| [Us] Rated Supply Voltage | 24 V DC |
| F-gas Usage Performance | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | No |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -20-60 °C, -20-60 °C |
|---|---|
| Halogene Performance | Product contains halogen above thresholds |
| China Rohs Regulation | X |
| Silicon Free | No |
| Ambient Air Temperature For Operation | 0-60 °C |
| Environmental Disclosure | ENVPEP2007003EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2007003EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 278.6265083741 |
| Circularity Profile | ENVEOLI2007003EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 10-90 % non-condensing |
| Pep Verification Date | 2020-10-01 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | modular HMI box |
|---|
| Range Of Product | Harmony ST6 |
|---|
ETIM
| ETIM 8 | EC001412 |
|---|
| ETIM 9 | EC001412 |
|---|
Batteries & Runtime Attributes
| Removable Battery | USER_REPLACEABLEUser replaceable |
|---|
