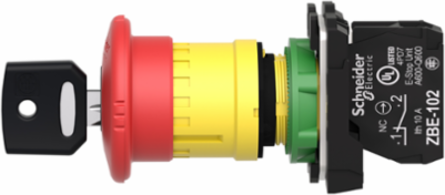

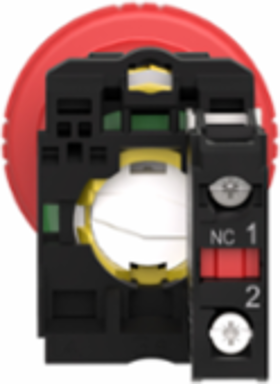

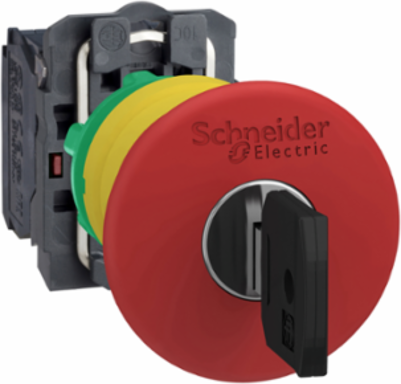

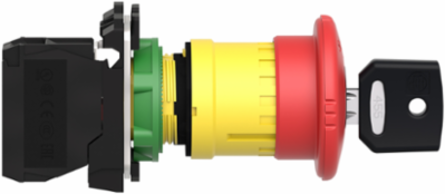

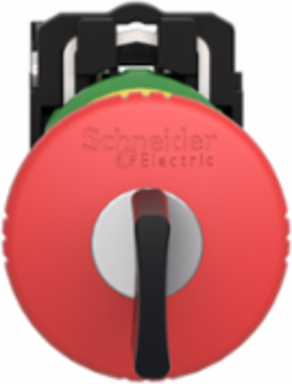

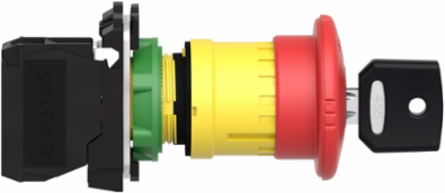

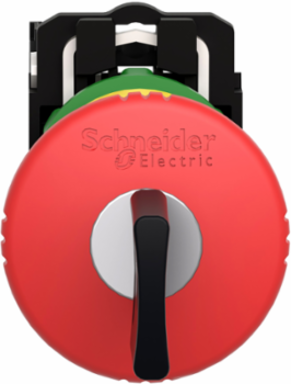

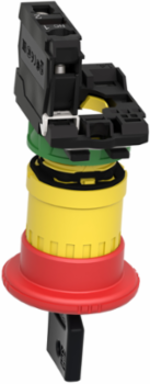

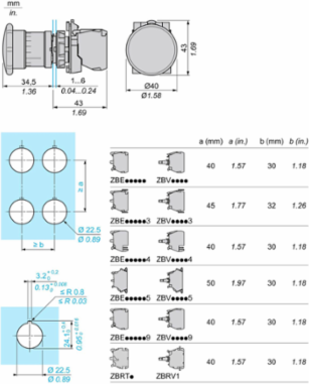

Schneider Electric XB5AS9442 Harmony XB5 Emergency Stop Push Button, 40mm Mushroom, IP66

  • MPN: XB5AS9442
  • PPN: SCH-XB5AS9442

CAD

$167.43

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

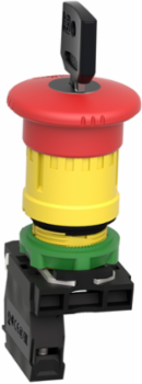

This Harmony XB5, emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched key release (key no.455) mechanism and uses screw-clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Czechia, France, United States
Depth100 mm

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Contacts Usage
standard contacts, standard contacts
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Operating Travel
1.5 mm NC changing electrical state), 4.3 mm total travel)
Reset
key release, key release
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Terminals Description Iso N°1
(11-12)NC, (11-12)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0.1 kg CO2 eq., 0.14977
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
0.7 kg CO2 eq., 0.68671
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Weee Product Category
5
Eoli Availability Display
Yes
Product Repair Index Dam Doc
XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1930
China Rohs In Scope
Yes
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
1
Function Option
Standard
Average Percentage Of Recycled Metal Content
22 %
Bezel Material
dark grey plastic
Contact Operation
slow-break
Contacts Type And Composition
1 NC
Fixing Collar Material
plastic
Key Withdrawal Position
center
Mounting Diameter
22 mm
Overvoltage Category
class II conforming to IEC 60536
Product Availability
Non-Stock - Not normally stocked in distribution facility
Protective Treatment
TH
Resistance To High Pressure Washer
7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity
1
Software Version
v5.9.4
Tightening Torque
0.8-1.2 N.m IEC 60947-1
Type Of Keylock
key 455
Vibration Resistance
5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Contacts Composition 6
1 NC
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
Emergency stop modular red push button operates with a latched key release mechanism and uses screw-clamp terminals. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It has energy consumption of 0.002 W at use rate of 71% during 10 years. Product meets the international standards such as EN/IEC 60947-1 and EN/IEC 60204 -1.
Energy Model - Manufacturing [A1-a3]
Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Width Nominal
40 mm
[Ui] Rated Insulation Voltage
600 V 3)IEC 60947-1
Cap/Operator Or Lens Colour
red
Nbr. Of Units In Pkg.
1
Product Repair Index - Dam Document Id
XB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)
18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
1.4501
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
-3.8358
Ecotoxicity (Fresh Water) (Ctue) Installation [A5]
0.1503
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
-3.1285
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
-3.8384
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
10.322
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]
5.3112
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
10.548
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
1.6553
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
-3.9515
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
1.4501
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
-3.8358
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
0.2402
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable0, no
Electrical Reliabilityλ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Product Or Component Typeemergency stop push-button, emergency switching off push-button
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Certificate AgencyCSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Carbon Footprint Of The Distribution Phase [A4]0.01176, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.022024, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0.1 kg CO2 eq., 0.077733
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308013EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content13 %
Compatibility CodeXB5
Contacts Materialsilver alloy (Ag/Ni)
Device Short NameXB5
Head Typestandard
Mechanical Durability300000 cycles
Operator Profilered mushroom Ø 40 mm, unmarked
Positive Openingwith IEC 60947-5-1 appendix K
Product Repair IndexA
Range Of ProductHarmony XB5
ReturnabilityYes
Shape Of Signaling Unit Headround
Sustainable PackagingYes
Total Lifecycle Carbon Footprint0.9 kg CO2 eq.
Type Of Operatortrigger action and mechanical latching
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2308013EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourcereferent product
Reference Lifetime, In Y10
Height Nominal43 mm
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)86.000 g
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]10.322
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]5.3112
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]204.37
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]1.1608
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]2.3971
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]0.5774
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1.4501
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-3.8358
Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]0.2457
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]5.3117
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]9.3352
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]5.3112
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle0.2402

Environment Attributes Main

Ambient Air Temperature For Operation
-40-70 °C, -40-70 °C
Ip Degree Of Protection
IP66 IEC 60529, IP67, IP69, IP69K
Take Back
No
China Rohs Regulation
X
Carbon Footprint
0.947997
Environmental Disclosure
ENVPEP2308013EN
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2023-08-01
Psr Version
PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level22 %
Mercury FreeYes
Circularity ProfileENVEOLI2308013EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2308013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
emergency stop push-button, emergency switching off push-button
Range Of ProductHarmony XB5

ETIM

ETIM 8
EC002034
ETIM 9EC002034

Overview Attributes

Device Presentation
complete product
