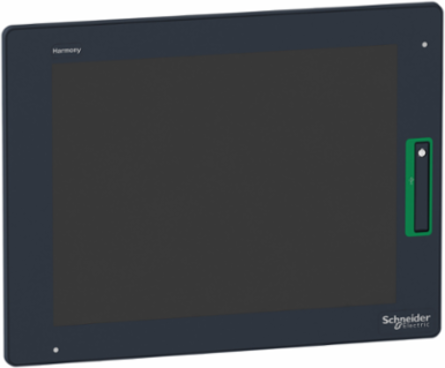

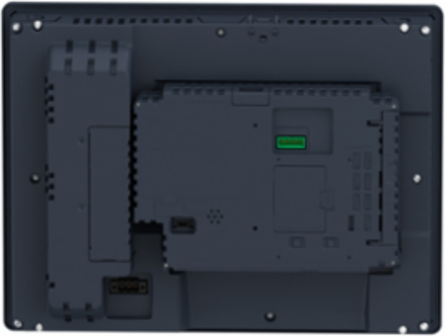

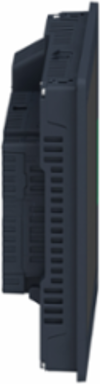

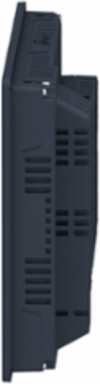

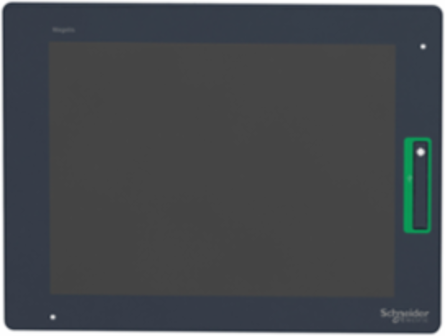

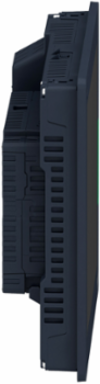

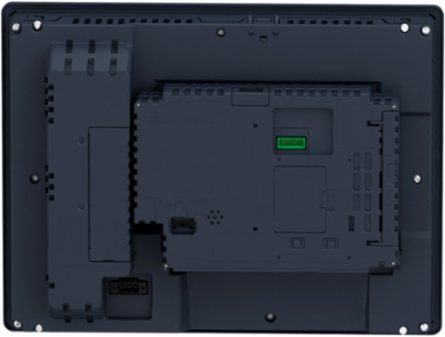

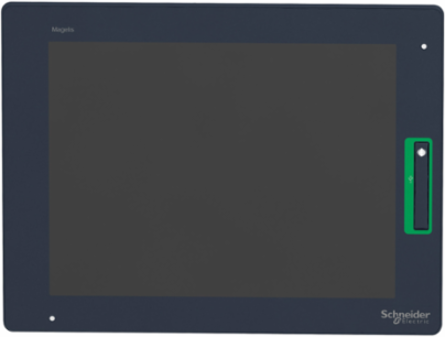

Schneider Electric HMIDT642 Harmony GTU 12.1 Inch Touchscreen HMI with 1024x768 Resolution

  • MPN: HMIDT642
  • PPN: SCH-HMIDT642
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $4346.57

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Magelis GTU universal touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 12.1" color TFT LCD display with 1024 x 768 pixels and 16M colors. It can handle multi-touch gestures. It is ideal for high-performance monitoring and communication thanks to a smartphone-like interface for use in the most demanding automation systems, including industrial control equipments, hazardous locations, and marine applications. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers removable storage, dual LAN and dual communication interfaces. It resists permanent 60°C temperature, this makes it ideal for installation in areas where ventilation of the cabinet is not possible or risky.
