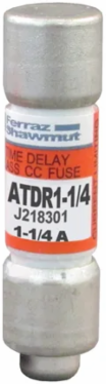

Mersen ATDR1-1/4 Fuse Amp-Trap 2000® 600V 1.25A Time-Delay Class CC, 0.41 Inch Diameter
- MPN: ATDR1-1/4
- UPC: 782001901097
- PPN: FER-ATDR1-1/4
CAD
$9.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
Features
- This Amp-Trap ATDR series premium fuse is fully rated for 1-1/4 Amps (1.25 A) at up to 600V AC and 300V DC. This robust capability allows plant engineers to deploy it across both high-voltage AC control circuits and complex DC auxiliary power networks without requiring separate inventories.
- This Class CC fuse delivers a massive short-circuit interrupting rating of 200,000 Amps (200kA) AC and 100,000 Amps (100kA) DC.
- The specialized time-delay curve makes this unit the ultimate choice for the branch-circuit protection of highly inductive electrical loads. It is specifically optimized to protect control circuit transformers, small solenoids, contactors, and small motor loads where high inrush currents are naturally present during initialization.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 300 V DC
- Interrupting Rating AC
- 200 kA
- Speed/Characteristic
- Time Delay
- Length
- 1.5 in
- Weight
- 0.017 lb
- Connection/Terminal Type
- Ferrule
- Body/Insulating Material
- GMG
- Frequency
- 50/60 Hz
Amperage1.25 A
Interrupting Rating DC100 kA
Fuse ClassClass CC
Diameter0.41 in
MountingClip
Connection/Terminal MaterialTin-Plated Copper
MaterialFiberglass body, High-grade silica filler
ApprovalsUL Listed to standard 248-4, CSA Certified to C22.2 No. 248.4, DC listed to UL 248
