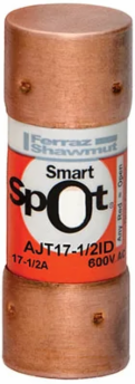

Mersen AJT17-1/2 Amp-Trap 2000 Time-Delay Class J Fuse 17.5A 600V SmartSpot Indicator
- MPN: AJT17-1/2
- UPC: 782001963118
- PPN: FER-AJT17-1/2
CAD
$15.50
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Features
- The Mersen AJT17-1/2 features advanced SmartSpot technology.
- Engineered to standard Class J dimensions (13/16-inch diameter by 2-1/4-inch length), this 17.5-amp cylindrical cartridge fuse explicitly enforces a physical rejection feature that prevents dangerous installation errors with other fuse types. It drops directly into any standard low-voltage Class J fuse block, making it a drop-in replacement for older configurations or upgrades in tight control centers.
- Built with dual-element, time-delay characteristics, this current-limiting power fuse safely absorbs harmless transient surges and momentary starting inrush currents from motors and transformers.
- Boasting an exceptional 200 kA interrupting rating (AIC) at 600 VAC, this Amp-Trap 2000 series fuse delivers superior current limitation by lowering peak let-through energy. It is actively recommended for facility arc flash energy reduction, keeping your maintenance crew safer and satisfying strict industrial safety compliance codes.
- The body is constructed from premium fiberglass-reinforced GMG (glass melamine) material filled with high-grade silica sand for rapid arc quenching. This resilient design guarantees structural stability and prevents arc tracking in high-vibration manufacturing plants, industrial processing facilities, and HVAC control panels.
- Featuring an engineered 2-to-1 coordination selectivity ratio, this Class J fuse simplifies system design by isolating faults strictly to the affected branch circuit.
Documentation & Downloads
Specifications
Additional
- Amperage
- 17.5 A
- Fuse Type
- Time Delay/Class J
- Length
- 2.25 in
- Connection Type
- Ferrule
- Mounting
- Clip
- Body Material
- GMG fiberglass
- Compliance
- UL Listed, CSA Certified, RoHS Compliant, IEC 60269-2-1
Voltage600 V AC / 400 V DC
Interrupting Rating200 kA AC
Weight0.097 lb
Connection MaterialTin-Plated Copper
Frequency50/60 Hz
Indication SystemSmartSpot
