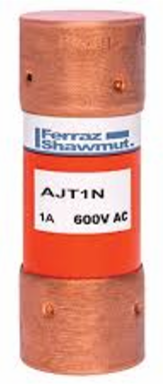

Mersen AJT1N Fuse Amp-Trap 2000® 600VAC 1A Class J Time-Delay, 2.25 Inch Length, 0.81 Inch Diameter
- MPN: AJT1N
- UPC: 782001497965
- PPN: FER-AJT1N
CAD
$15.50
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Features
- The Mersen AJT1N features a compact Class J cartridge design measuring just 0.827 inches in diameter by 2.244 inches in length, requiring up to 50% less mounting space than standard 600VAC Class RK fuses. This small footprint allows industrial technicians and panel builders to utilize smaller, more economical fuse blocks and optimize valuable enclosure real estate without sacrificing power.
- Engineered for flexibility across diverse infrastructure setups, this power fuse is fully rated for up to 600VAC and 500VDC environments. It delivers reliable circuit protection for dual-voltage control panels, variable speed drives, and branch circuits, streamlining your inventory by replacing separate, single-application fuses.
- This time-delay industrial fuse is specifically calibrated to withstand temporary motor starting currents and transformer inrush surges without nuisance tripping. By safely absorbing short-duration overcurrents while maintaining strict 1-Amp protection, it prevents unnecessary system downtime and eliminates the frustration of frequent, unforced replacements.
- Built with an exceptional breaking capacity of 200kA AC and 100kA DC, the Amp-Trap 2000® series delivers premium current-limiting performance that minimizes peak let-thru energy. This ultra-fast arc quenching mechanism shields downstream components from severe fault currents, helping your facility achieve compliant IEC Type 2 "No Damage" protection.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 500 V DC
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Length
- 2.25 in
- Weight
- 0.097 lb
- Mounting
- Clip
- Connection Material
- Tin-Plated Copper
- Frequency
- 50/60 Hz
Amperage1 A
Speed/CharacteristicTime Delay
Diameter0.81 in
Connection TypeFerrule
Body MaterialGMG (Glass Mat Glass)
Fuse ClassClass J
ComplianceUL Listed, CSA Certified, RoHS Compliant, IEC 60269-2-1
