Schneider Electric

Schneider Electric K30E003WP Complete Cam Switch 3 Poles 32A 64x64mm Front Mounting

  • MPN: K30E003WP
  • PPN: SCH-K30E003WP

CAD

$142.14

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This Harmony K30 complete cam switch/selector switch has 3 poles (3P). It also has a rating of 32A, a screw clamp mounting mode and a metallic color with black marking. It has "1 - 0 - 3" marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Austria

Physical Attributes

Cad Overall Depth
106 mm
Cad Overall Width
64 mm
Cad Overall Height64 mm

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Electrical Connection
captive screw clamp terminals flexible 2 x 4 mm², captive screw clamp terminals solid 2 x 6 mm²
Switching Capacity In Ma
23000 mA DC 180 V 3 resistive 1 ms), 23000 mA DC 60 V 1 resistive 1 ms), 25000 mA DC 60 V 2 inductive 50 ms), 3200 mA DC 220 V 2 inductive 50 ms), 32000 mA DC 24 V 1 resistive 1 ms), 32000 mA DC 48 V 1 resistive 1 ms), 32000 mA DC 48 V 2 inductive 50 ms), 32000 mA DC 48 V 2 resistive 1 ms), 32000 mA DC 70 V 3 resistive 1 ms), 32000 mA DC 95 V 2 resistive 1 ms), 400 mA DC 660 V 2 resistive 1 ms), 6500 mA DC 220 V 2 resistive 1 ms), 6500 mA DC 330 V 3 resistive 1 ms)11000 mA DC 120 V 2 inductive 50 ms), 11000 mA DC 180 V 3 inductive 50 ms), 11000 mA DC 60 V 1 inductive 50 ms), 1200 mA DC 220 V 1 resistive 1 ms), 1200 mA DC 440 V 2 resistive 1 ms), 1200 mA DC 660 V 3 resistive 1 ms), 16000 mA DC 140 V 3 inductive 50 ms), 16000 mA DC 48 V 1 inductive 50 ms), 16000 mA DC 95 V 2 inductive 50 ms), 23000 mA DC 120 V 2 resistive 1 ms), 25000 mA DC 30 V 1 inductive 50 ms), 25000 mA DC 90 V 3 inductive 50 ms), 3200 mA DC 110 V 1 inductive 50 ms), 3200 mA DC 330 V 3 inductive 50 ms), 32000 mA DC 140 V 3 resistive 1 ms), 32000 mA DC 24 V 1 inductive 50 ms), 32000 mA DC 70 V 3 inductive 50 ms), 400 mA DC 440 V 1 resistive 1 ms), 6500 mA DC 110 V 1 resistive 1 ms)
Certificate Agency
cULus 120 V 2 hp 1 phase, cULus 240 V 5 hp 1 phase, cULus 240 V 5 hp 3 phase, cULus 480 V 20 hp 3 phase
Carbon Footprint Of The Distribution Phase [A4]
0.271895236353487, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.06676238814500775, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
0 kg CO2 eq., 0
Local Publishable Date
2026-01-12
Stocking Flag
Y
Weee Scope
In
Scope Perimeter
At least in Europe
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Reach Compliance Directive
Free of Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant
Rohs Eur Full Compliance Status
Compliant
China Rohs Label
1
Without Single Use Plastic
Yes
Tier Id
2
Function Option Id
STANDARD
Product Kit Identifier
N
Cam Switch Head Type
with front plate 64 x 64 mm
Component Name
K30
Fixing Mode
4 holes
Number Of Poles
3P
Positive Opening
with
Product Mounting
front mounting
Protective Treatment
TC
Return
without
Rotary Handle Padlocking
without
Sustainable Packaging
Yes
Tightening Torque
1.2 N.m
Type Of Operator
Black handle
Pep Code
ENVPEP2312055EN
Pep Verification Date
2025-06-30
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
20
Energy Model - Installation [A5]
No energy used
Energy Model - End Of Life [C1-c4]
Global, European and French datasets are used.
[Ith] Conventional Free Air Thermal Current
32 A
Short-circuit Current
5000 A
Nbr. Of Units In Pkg.
1
Take-back
No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Shock Protection Classclass II conforming to IEC 60536, class II conforming to NF C 20-030
Switching Positionsright: 0° - 60°, left: 0° - 300°
[Uimp] Rated Impulse Withstand Voltage6 kV EN 947-1, 6 kV IEC 947-1
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.4736552606273315
Carbon Footprint Of The Manufacturing Phase [A1 To A3]7 kg CO2 eq., 7.088928537459254
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Cam Switch Functionreversing switch
Compatibility CodeK30E
Contact Operationslow-break
Mechanical Durability300000 cycles
Off Positionwith Off position
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecomplete cam switch
Range Of ProductHarmony K
ReturnabilityNo
Software Versionv6.3.0.1-4
Switching Angle60 °
Total Lifecycle Carbon Footprint8 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe main purpose of the Harmony K1/K2 series of cam switches is to directly control simple machines and to provide process control in industry and buildings. This voltmeter phase switch offers the maximum mechanical and electrical robustness of its class for prolonged operation without maintenance. Its high IP allows for handling of panel operations in very dusty and wet environments including outdoors.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Czech Republic, CZ
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential, In %39
[Ui] Rated Insulation Voltage690 V 3)IEC 60947-1
Short-circuit Protection50 A cartridge fuse gG
Package Weight(Lbs)268.000 g
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation
-25-55 °C, -25-55 °C
Take Back
No
Recycled Metal Content At Cr Level
0 %
Toxic Heavy Metal Free
Yes
Carbon Footprint
7.9012414225850796
Eu Rohs Directive
Compliant
Packaging Made With Recycled Cardboard
Yes
Reach Free Of Svhc
Yes
Pep Code
ENVPEP2312055EN
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2312055EN
Ip Degree Of ProtectionIP40 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Type
complete cam switch
Range Of ProductHarmony K

ETIM

ETIM 8
EC001105
ETIM 9EC001105

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Overview Attributes

Presentation Of Legend

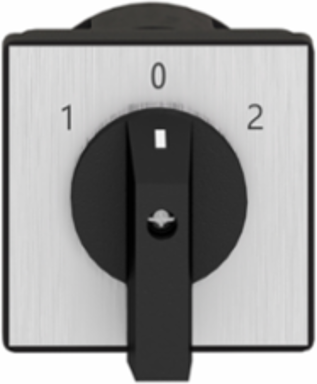

with metallic, 1 - 0 - 2 black
