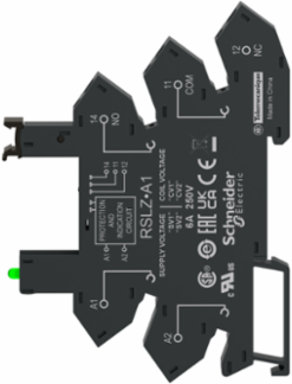

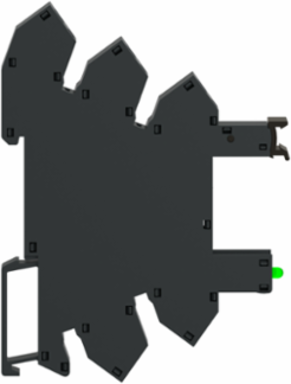

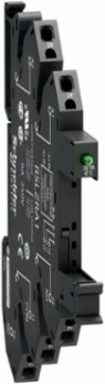

Schneider Electric RSLZRA3 socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, spring terminals, 110V AC DC
Schneider Electric RSLZRA3 socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, spring terminals, 110V AC DC
- MPN: RSLZRA3
- PPN: SCH-RSLZRA3
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$12.37/ EA
Description
This Harmony RSL plug-in socket with LED indicator has a rated voltage of 110V AC/DC." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0 0
Specifications
Environment
- Product Certifications
- CSA || GOST
- Standards
- IEC 61984 || UL 508
- Ip Degree Of Protection
- IP20 IEC 60529
Ambient Air Temperature For Operation-40-55 °C
MarkingCE
Ambient Air Temperature For Storage-40-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Environmental DisclosureENVPEP1405004EN
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1405004EN
Complementary
- [Uimp] Rated Impulse Withstand Voltage
- 3.6 kV
- Pollution Degree
- 3
- Contact Terminal Arrangement
- separate
- Fixing Mode
- plastic compression spring (35 mm symmetrical DIN rail)
- Connections - Terminals
- spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) solid without cable end
- Compatibility Code
- RSLZ
- Cad Overall Width
- 6.2 mm
- Group Of Product
- RSL_SPRING_TERS_110
Clamping Force10-40 N
Shape Of Pinflat
Net Weight0.023 kg
Cad Overall Height78.6 mm
Sale Per Indivisible Quantity10
Overvoltage CategoryIII
Cad Overall Depth101 mm
Specifications
- [Ith] Conventional Free Air Thermal Current
- 6 A
- Rated Operational Voltage Limits
- 88...126.5 V
- Device Presentation
- basic element
- Product Compatibility
- plug-in relay RSL 1 C/O 60 V DC
- Device Short Name
- RSLZ
Range Of ProductHarmony Electromechanical Relays
Product Or Component Typesocket
Contacts Type And Composition1 C/O
Switching Voltage110 V AC/DC
[Ue] Rated Operational Voltage< 300 V AC
