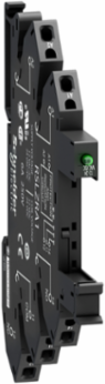

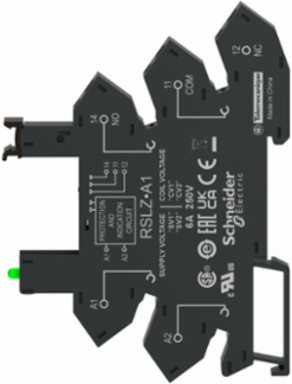

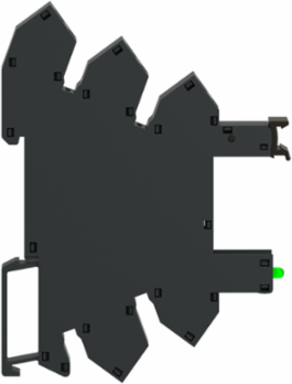

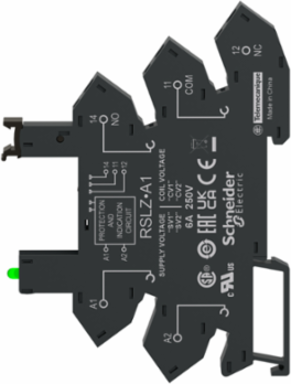

Schneider Electric RSLZRA4 Harmony Electromechanical Relay Socket, 230V AC/DC, 1 C/O, IP20
- MPN: RSLZRA4
- PPN: SCH-RSLZRA4
- UNSPSC: 39121521
CAD
$12.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
"This Harmony RSL plug-in socket with LED indicator has a rated voltage of 230V AC/DC." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Width
- 6.2 mm
- Weight
- 0.023 kg
- Range Of Product
- Harmony Electromechanical Relays
- Product Or Component Type
- socket
- Contacts Type And Composition
- 1 C/O
- Switching Voltage
- 230 V AC/DC
- [Ue] Rated Operational Voltage
- < 300 V AC
Height78.6 mm
[Ith] Conventional Free Air Thermal Current6 A
Rated Operational Voltage Limits184...264.5 V
Device Presentationbasic element
Product Compatibilityplug-in relay RSL 1 C/O 60 V DC
Device Short NameRSLZ
Complementary
- [Uimp] Rated Impulse Withstand Voltage
- 3.6 kV
- Pollution Degree
- 3
- Contact Terminal Arrangement
- separate
- Fixing Mode
- plastic compression spring (35 mm symmetrical DIN rail)
- Connections - Terminals
- spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) solid without cable end
- Compatibility Code
- RSLZ
- Cad Overall Width
- 6.2 mm
- Group Of Product
- RSL_SPRING_TERS_230
Clamping Force10-40 N
Shape Of Pinflat
Net Weight0.023 kg
Cad Overall Height78.6 mm
Sale Per Indivisible Quantity10
Overvoltage CategoryIII
Cad Overall Depth101 mm
Environment
- Product Certifications
- GOST || CSA
- Standards
- IEC 61984 || UL 508
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
Ambient Air Temperature For Operation-40-55 °C
MarkingCE
Ambient Air Temperature For Storage-40-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Circularity Profile
- ENVEOLI1405004EN
Environmental DisclosureENVPEP1405004EN
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
