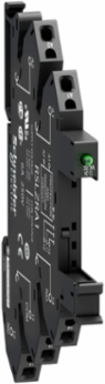

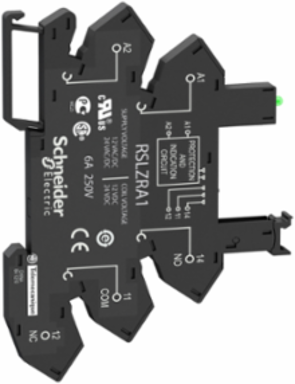

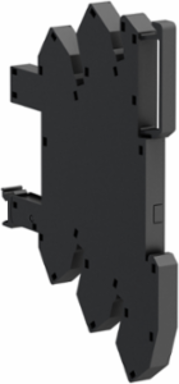

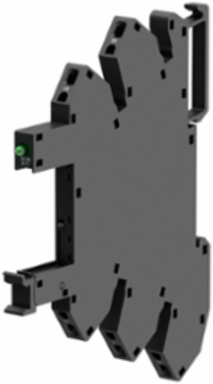

Harmony Relay Socket, 48-60V AC/DC, 6.2mm Width, IP20, 6A
Harmony Relay Socket, 48-60V AC/DC, 6.2mm Width, IP20, 6A
Harmony Relay Socket, 48-60V AC/DC, 6.2mm Width, IP20, 6A
Harmony Relay Socket, 48-60V AC/DC, 6.2mm Width, IP20, 6A
Schneider Electric

Schneider Electric RSLZRA2 Harmony Relay Socket, 48-60V AC/DC, 6.2mm Width, IP20, 6A

  • MPN: RSLZRA2
  • PPN: SCH-RSLZRA2

CAD

$12.37

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This Harmony RSLZ plug-in relay socket has a coil control voltage of 48 - 60V AC/DC." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest socket on the market, with 6.2mm width, it can be installed nearly anywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0

Documentation & Downloads

Specifications

Key Specifications

[Ith] Conventional Free Air Thermal Current
6 A
Rated Operational Voltage Limits
54...72 V || 43.2...57.6 V
Device Presentation
basic element
Product Compatibility
plug-in relay RSL 1 C/O 48 V DC || plug-in relay RSL 1 C/O 60 V DC
Device Short Name
RSLZ
Range Of ProductHarmony Electromechanical Relays
Product Or Component Typesocket
Contacts Type And Composition1 C/O
Switching Voltage48 V AC/DC || 60 V AC/DC
[Ue] Rated Operational Voltage< 300 V AC

Complementary

[Uimp] Rated Impulse Withstand Voltage
3.6 kV
Pollution Degree
3
Contact Terminal Arrangement
separate
Fixing Mode
plastic compression spring (35 mm symmetrical DIN rail)
Connections - Terminals
spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) solid without cable end
Compatibility Code
RSLZ
Cad Overall Width
6.2 mm
Group Of Product
RSL_SPRING_TERS_48-60
Clamping Force10-40 N
Shape Of Pinflat
Net Weight0.023 kg
Cad Overall Height78.6 mm
Sale Per Indivisible Quantity10
Overvoltage CategoryIII
Cad Overall Depth101 mm

Environment

Product Certifications
CSA || GOST
Standards
IEC 61984 || UL 508
Ip Degree Of Protection
IP20 EN/IEC 60529
Ambient Air Temperature For Operation-40-70 °C
MarkingCE
Ambient Air Temperature For Storage-40-85 °C

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Sustainable Offer Status
Green Premium product
Reach Free Of Svhc
Yes
China Rohs Regulation
X
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Environmental DisclosureENVPEP1405004EN
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1405004EN
