Schneider Electric

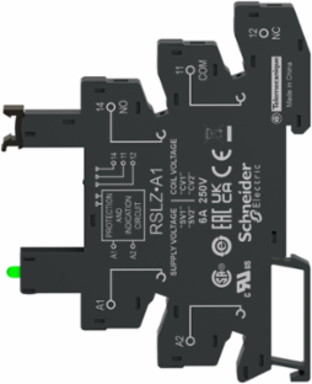

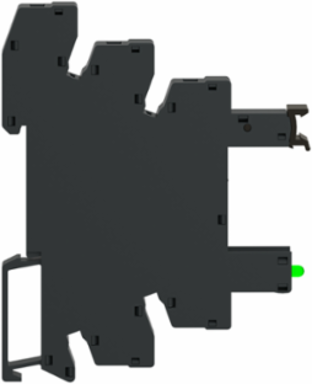

Schneider Electric RSLZVA4 Harmony Electromechanical Relay Socket, 230V AC/DC, 6A, IP20

  • MPN: RSLZVA4
  • PPN: SCH-RSLZVA4
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $12.37

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony RSL plug-in socket with LED indicator has a rated voltage of 230V AC/DC." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    [Ith] Conventional Free Air Thermal Current
    6 A
    Rated Operational Voltage Limits
    184...264.5 V
    Device Presentation
    basic element
    Product Compatibility
    plug-in relay RSL 1 C/O 60 V DC || plug-in relay RSL
    Device Short Name
    RSLZ
    Range Of ProductHarmony Electromechanical Relays
    Product Or Component Typesocket
    Contacts Type And Composition1 C/O
    Switching Voltage230 V AC/DC
    [Ue] Rated Operational Voltage< 300 V AC

    Complementary

    Tightening Torque
    < 0.4 N.m M2.5
    Pollution Degree
    3
    Contact Terminal Arrangement
    separate
    Fixing Mode
    plastic compression spring (35 mm symmetrical DIN rail)
    Connections - Terminals
    connector, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || connector, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) solid without cable end
    Compatibility Code
    RSLZ
    Cad Overall Width
    6.2 mm
    Group Of Product
    RSL_CON_230
    [Uimp] Rated Impulse Withstand Voltage3.6 kV
    Shape Of Pinflat
    Net Weight0.023 kg
    Cad Overall Height78.6 mm
    Sale Per Indivisible Quantity10
    Overvoltage CategoryIII
    Cad Overall Depth95 mm

    Environment

    Product Certifications
    GOST || CSA
    Standards
    IEC 61984 || UL 508
    Ip Degree Of Protection
    IP20 IEC 60529
    Ambient Air Temperature For Operation-40-55 °C
    MarkingCE
    Ambient Air Temperature For Storage-40-85 °C

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Sustainable Offer Status
    Green Premium product
    Reach Free Of Svhc
    Yes
    China Rohs Regulation
    X
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Environmental DisclosureENVPEP1405004EN
    Reach RegulationFree of Substances of Very High Concern above the threshold
    WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity ProfileENVEOLI1405004EN
