Schneider Electric XB5AW73731M5 Harmony XB5 Illuminated Push Button, 22mm, 240V AC, 1 NO + 1 NC
- MPN: XB5AW73731M5
- PPN: SCH-XB5AW73731M5
CAD
$131.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

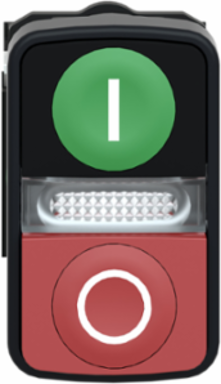

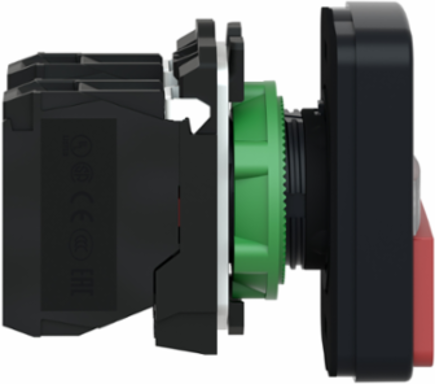

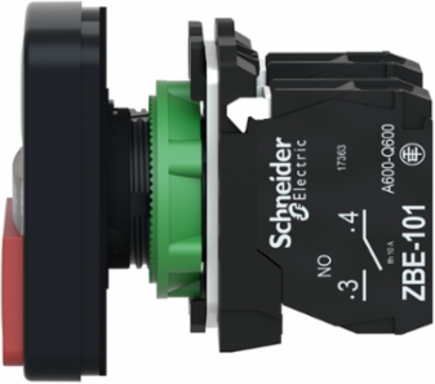

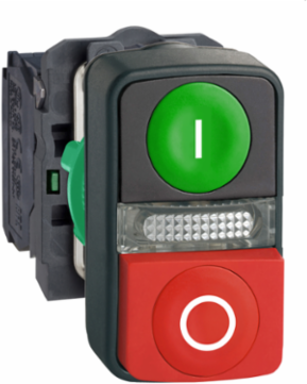

This Harmony XB5, double-headed modular push button has 1 green, 1 red button and 1 central white pilot light, operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is marked with "I" and "O" symbols. This double-head button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K and IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 230...240 V AC 50/60 Hz
- Light Source
- protected LED
- Type Of Operator
- spring return
- Shape Of Signaling Unit Head
- rectangular
- Head Type
- standard
- Contacts Type And Composition
- 1 NO + 1 NC
- Contact Operation
- slow-break
- Device Short Name
- XB5
Range Of ProductHarmony XB5
Mounting Diameter22 mm
Product Or Component Typeilluminated double-headed push-button
Fixing Collar Materialplastic
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 || spring terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || spring terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Bezel Materialdark grey plastic
Operator Profilegreen flush, I white) || red projecting, O white)
Bulb Baseintegral LED
Complementary
- Contacts Usage
- standard contacts
- Terminals Description Iso N°1

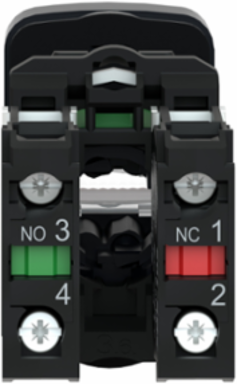

- (13-14)NO || (11-12)NC
- Short-Circuit Protection
- 10 A cartridge fuse gG EN/IEC 60947-5-1
- Contacts Material
- silver alloy (Ag/Ni)
- [Ith] Conventional Free Air Thermal Current
- 10 A EN/IEC 60947-5-1
- Net Weight
- 0.066 kg
- Current Consumption
- 14 mA
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Service Life
- 100000 year(s) at rated voltage and 25 °C
- [Ui] Rated Insulation Voltage
- 600 V 3)EN 60947-1
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
- Light Source Colour
- white
- Electrical Reliability
- λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
- Depth
- 59 mm
- Shape Of Screw Head
- cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Height50 mm
Operating Force3.5 N NC changing electrical state || 3.8 N NO changing electrical state
Operating Travel1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Positive Openingwith EN/IEC 60947-5-1 appendix K
Colour Of Markingwhite marking when green, red or black caps || black marking when white caps
[Uimp] Rated Impulse Withstand Voltage6 kV EN 60947-1
Device Presentationcomplete product
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Surge Withstand1 kV IEC 61000-4-5
Signalling Typesteady
Supply Voltage Limits195-264 V AC
Mechanical Durability1000000 cycles
Width30 mm
Tightening Torque0.8-1.2 N.m EN 60947-1
Environment
- Product Certifications
- CSA || BV || LROS (Lloyds register of shipping) || GL || UL listed || DNV
- Ambient Air Temperature For Operation
- -40-70 °C
- Standards
- JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Protective Treatment
- TH
- Electromagnetic Emission
- class B IEC 55011
Ik Degree Of ProtectionIK05 conforming to IEC 50102
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP69 IEC 60529 || IP69K
Overvoltage Categoryclass II IEC 61140
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Resistance To Fast Transients2 kV IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
