Weidmuller

Weidmuller 1651570000 HDC-C-HD-BM0.14-0.37AG

HDC-C-HD-BM0.14-0.37AG
HDC-C-HD-BM0.14-0.37AG
HDC-C-HD-BM0.14-0.37AG
  • MPN: 1651570000
  • PPN: WDM-1651570000

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$0.82/ EA

Description

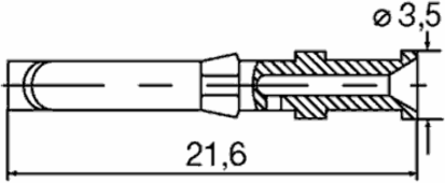

Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Female, Conductor cross-section, max.: 0.37, turned, Copper alloy

Specifications

Plugging Cycles
≥ 500

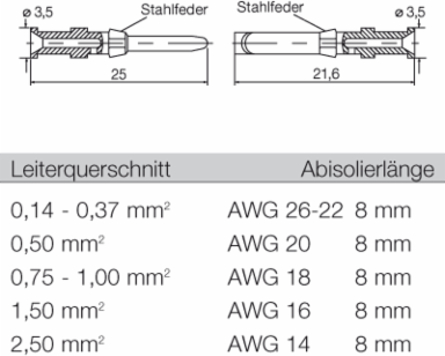

Conductor Cross-Section, Max
0.37 mm²
Volume Resistance
≤ 4 mΩ
Diameter
3.5 mm
Material
Copper alloy
Type of Connection
Crimp connection
Type
Female
Compliance
RoHS, UL (E92202), CSA, cURus, EAC
Version
HD, HDD, HQ, MixMate
UNSPSC
30-21-18-01
ETIM 6.0
EC000796
eClass 9.0
27-44-02-04
Conductor Cross-Section, Min0.14 mm²
Stripping Length, Rated Connection8 mm
Contact Diameter, Male1.6 mm
Net Weight0.73 g
Surface FinishSilver
Production MethodsTurned
SeriesHD
REACH SVHCLead 7439-92-1
eClass 10.027-44-02-04
ETIM 7.0EC000796
eClass 9.127-44-02-04
