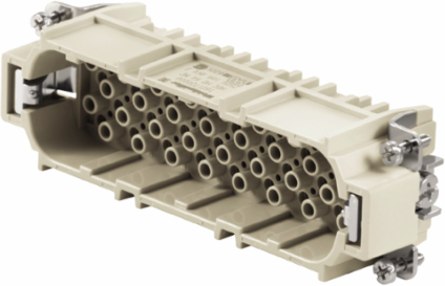

Weidmuller 1601720000 HDC HD 64 MC
- MPN: 1601720000
- PPN: WDM-1601720000
CAD
$21.91
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HDC insert, Pin, 250 V, 10 A, Number of poles: 64, Crimp connection, Size: 8
Documentation & Downloads
Specifications
Additional
| Rated Current | 10 A |
|---|---|
| Rated Voltage (UL/CSA) | 600 V AC/DC |
| Pollution Severity | 3 |
| Number of Poles | 64 |

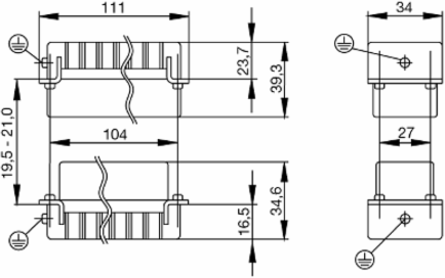

| Length | 111 mm (4.37 inch) |
| Height | 39.5 mm (1.555 inch) |
| Stripping Length | 8 mm (rated connection), 10 mm (PE connection) |
| Wire Connection Cross Section | Min 0.5 mm2, Max 2.5 mm2 (solid and finely stranded) |
| Blade Size | Slotted SD 0.6 x 3.5, SD 0.8 x 4.0; Crosshead size PZ1 |
| Tightening Torque (PE connection) | Min 1.2 Nm, Max 1.5 Nm |
| Insulating Material | PC glass-fibre reinforced (UL-listed and railway-certified) |
| Volume Resistance | 4 |
| Insulation Strength | 1010 |
| Pollution Severity | 3 |
| UNSPSC | 30-21-18-01 |
| Product Family | HDC insert |
| Rated Voltage | 250 V |
|---|---|
| Rated Impulse Voltage | 4 kV |
| Limiting Temperature Range | -40 C ... 125 C |
| Size | 8 |
| Width | 34 mm |
| Connection Type | Crimp, Screw (PE) |
| Wire Connection Cross Section AWG | Min AWG 26, Max AWG 14 |
| Conductor Cross Section | Min 0.14 mm2, Rated 2.5 mm2, Max 2.5 mm2 |
| Fixing Screw | M4 |
| Material | Copper alloy |
| Flammability Rating | UL 94 V-0 |
| Insulation Resistance | 109 |
| Plugging Cycles | 500 (silver and gold) |
| Compliance | RoHS, UL Listed (cURus E92202), EAC |
| Series | HD |
